1.2312 P20 + S Plastic Mould Steel Alloy Steel flat bar
| Price: |
Negotiable/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T |
| Prod Model: |
1.2312 P20 + S 4Cr2MnMo X40CrMnMoS8-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Treatment: |
Annealed / Q+T |
| Technique: |
Forged or Hot Rolled |
| Thickness: |
150-600mm |
| Width: |
610~1200mm or as Required |
| Length: |
2500~4000mm or as Required |
| Shape: |
Steel Plate/Flat Bar/Round Bar |
| Test: |
SGS/Ut 100%/Element Testing |
| Certification: |
ISO/Mill Certificate |
| Delivery Quantity: |
Include MOQ |
| Service: |
Sample free and 24 hours online |
| Standard: |
BS |
| Technics: |
Hot Rolled |
| Application: |
Die Steel Bar |
| Surface: |
Polished |
| Alloy: |
Alloy |
| Special Use: |
Mold Steel |
Product Description

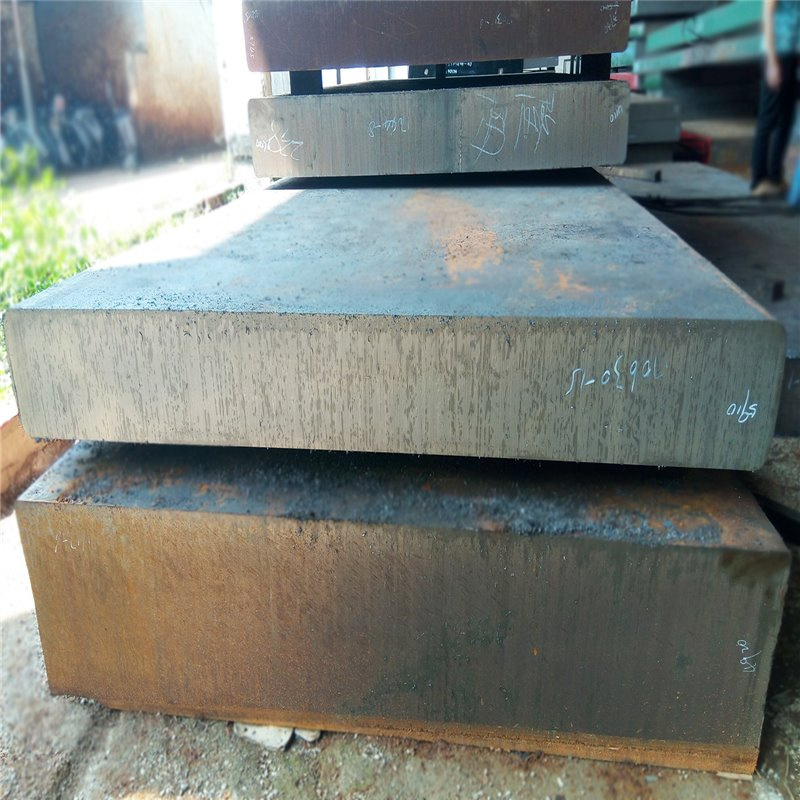

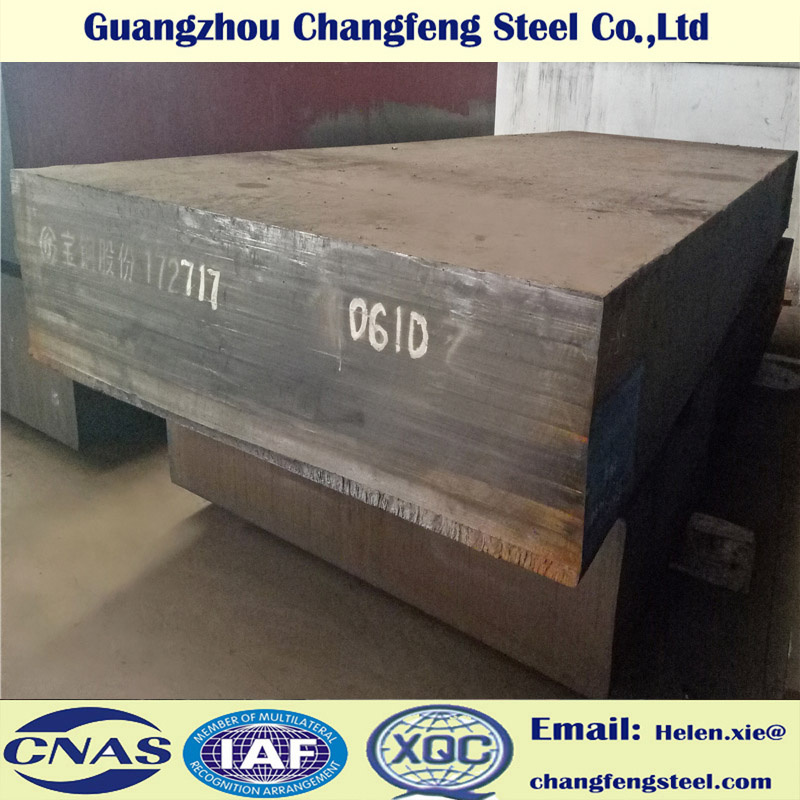

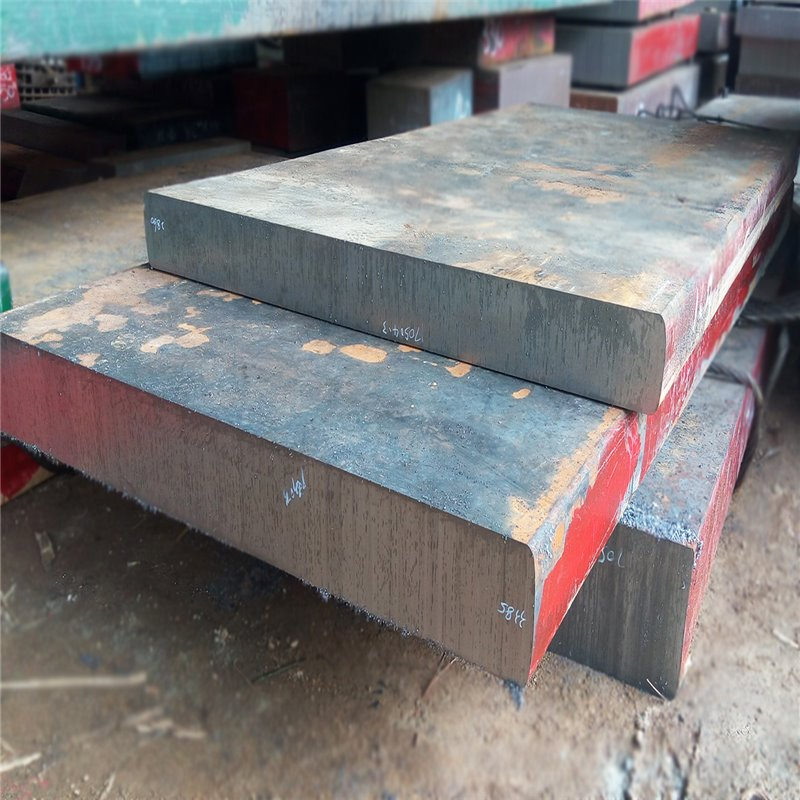

1.2312 P20 + S Plastic Mould Steel Alloy Steel flat bar 4Cr2MnMo X40CrMnMoS8-6
1.2312 steel is ideally suited for the production of moulds where improved machinability is required. Typical applications include die holders, zinc die casting dies, backers, bolsters and injection moulds. The versatility of this plastic mould tool steel with its high tensile characteristics enables uses for a variety of other applications such as shafts and wear strips.
1, Feartures
A, Alloy tool steel which offers good machineability;
B, Excellent polished finish for large section;
C, Supplied in the hardened and tempered condition ready for machining;
D, In this condition it gives excellent wear resistance.
2, Application
A, Used for plastic mould ,good polish with corrosion-resisting;
B, Long life and large plastic injection mold products such as home appliance, computer shell mold;
C, Thermoplastic plastic extrusion die;
D, Blow molding mold and Molding tool;
3, Grade | W.Nr | DIN | AFNOR | ASTM | GB |
| 1.2312 | X40CrMnMoS8-6 | (40CMD8S) | P20+S | 4Cr2MnMo |
4, Chemical composition(%)| C | Mn | Si | Cr | Mo | Ni | S+P |
| 0.35-0.45 | 1.40-1.60 | 0.30-0.50 | 1.80-2.00 | 0.15-0.25 | 0.05-0.10 | 0.015 |
5, Phase transition temperature 6, The hardness of delivery | Prehardened and tempered | HB278-325(950-1100N/mm²) |
7, Heat treatment | Annealing | 1)Heated to720-750°C,Two to four hours heat preservation,
2)Furnace cooling |
| Stress relief | 1)Heated to560-650°C and then two to four hours heat preservation
2)Furnace cooling or air cooling |
| Pre hardened | 1)Preheat to 600-650°C
2)Heated to hardening temperature 840-840°C and heat preservation
3)Oil cooling
4)Hardness:HRC51 |
| Drawing temper | 1)Immediately after quenching
2)When the 580-650°C,with the 1/inch to heat preservation |
8, Delivery Date
Abundant stock,15-20 days.
Customized products, 30-50 days.

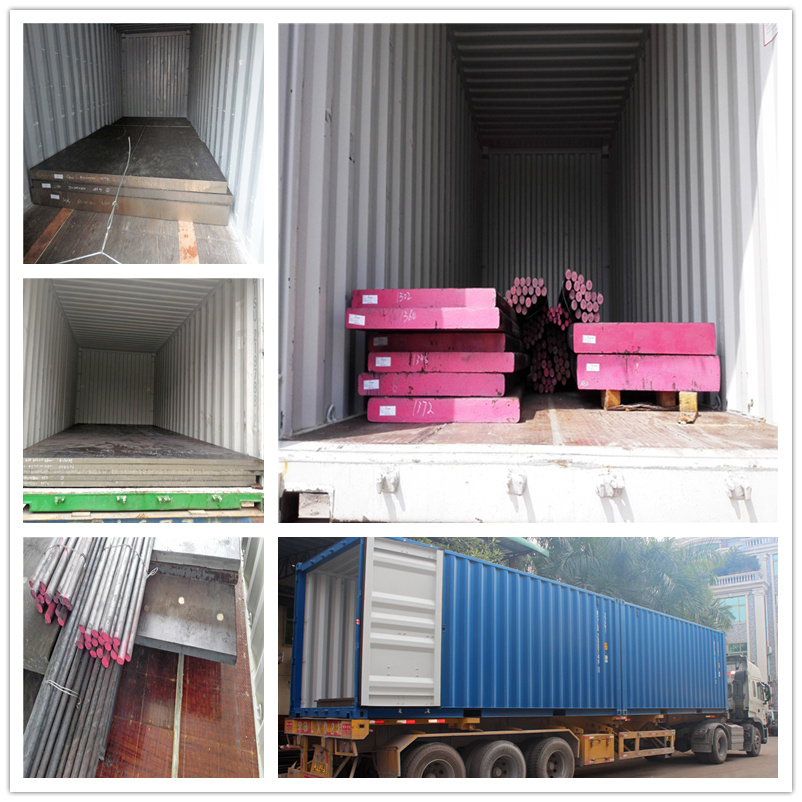

9, Packing: Standard export packing or As per request
We are reliable 1.2312 P20+S tool steel, 1.2312 P20+S steel plate, steel round bar and 1.2312 P20+S steel flat supplier. Quality guarantee and reliable service make us a better choice for you for 1.2312 P20+S special tool steel. We offer better 1.2312 P20+S steel price and supplier service. Contact us today.
About us:

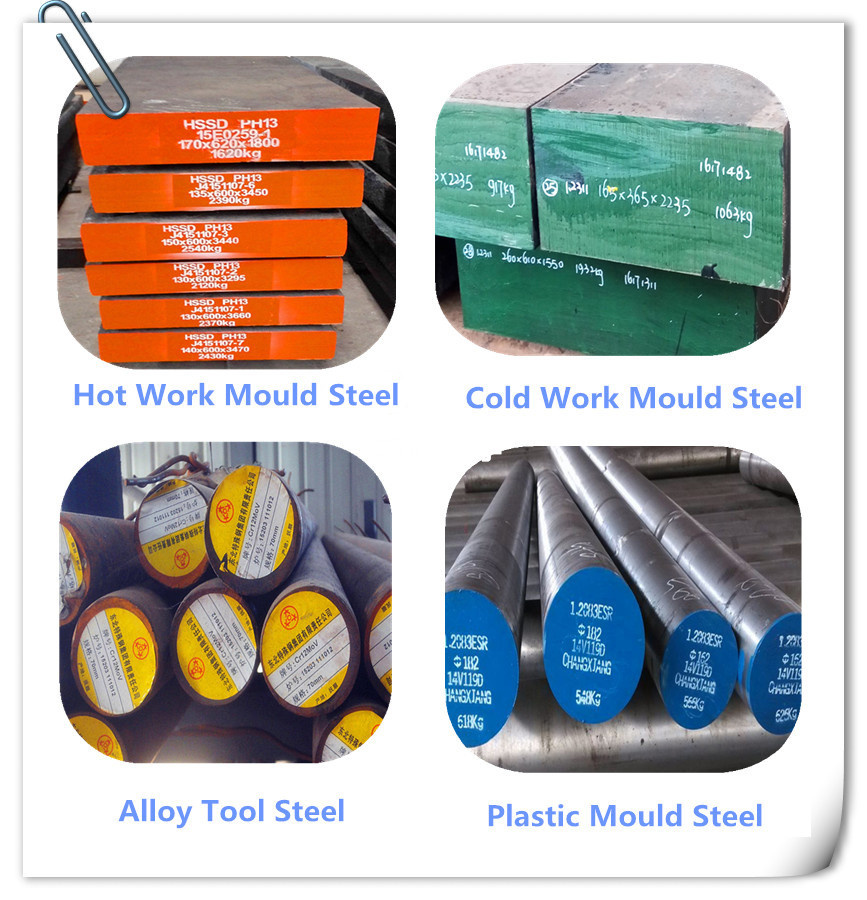

Guangzhou Changfeng Steel Co., Ltd is an export company of Baogang group in south China specialized in exporting special steel, which contains Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Steel for Mechanical, High Speed Steel, Bearing Steel, Tool Steel, Stainless Steel, Carbon Steel, etc.
We also act on behalf of exporting steels of mainly steel factories in China, including Shagang group, Wenfeng group, Xingcheng group, Dongte group, Daye and so on. We are full of ten years export experience to the market all over the word, such as America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and middle-east.

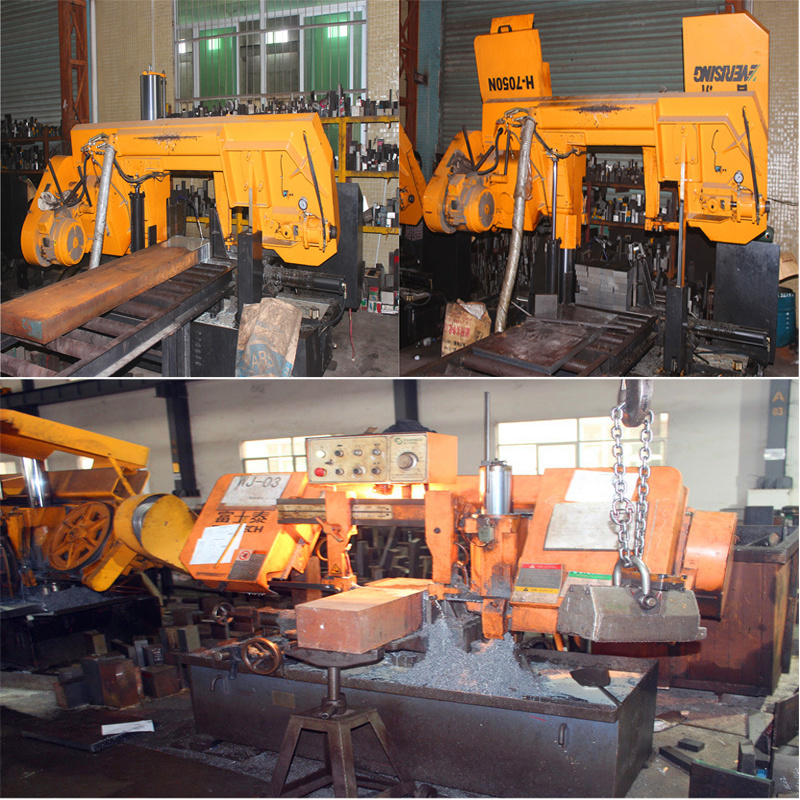

Guangzhou Changfeng Steel Co., Ltd has rich experience and competent elites, which enable us to offer the best service after years of development. Our company equips with large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advanced equipments to provide customers with cutting and other processing services. We set up strict inspection procedures, including metallographic analysis, hardness test, ultrasonic flaw detection etc., in order to meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
