| Prod Model: |
1.2312 |
| Hardness: |
Annealed Hbs250 Max |
| Diameter: |
20mm~410mm |
| Length: |
80mm~410mm |
| Certificate: |
SGS ISO |
| Delivery Time: |
Within 25working Days |
| OEM: |
Acceptable |
| Standard: |
BS |
| Technique: |
Hot Rolled |
| Surface Treatment: |
Galvanized |
| Special Use: |
High-strength Steel Plate |
| Application: |
Die Steel Bar |
| Shape: |
Round, Square, Plate |
| Type: |
Mould Steel |
| Composition: |
Speical Steel |
| Steel Grade: |
Die Steel |
Product Description

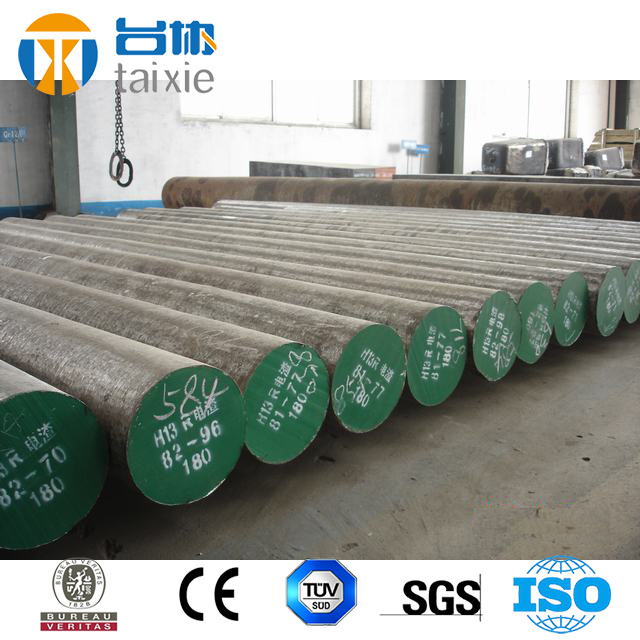

1.2312 P20+S tool steel round bar for plastic mold
Product Description:
1. AISI P20, JIS SKT3, 5CrMnMo Hot work tool steel
2. Hot rolled or Forged, condition annealing, black surface
3. Hardness: ≤ 255HBS;
4. Hot rolled technology: EAF+LF+VD
5. Ultrasonic test standard: SPE1921-GR3, CLASS D/D or E/E
| Standard | Grade | Chemical composition (%) |
| | | C | Si | Mn | Cr | Mo | V | Ni | W | Cu | Ti |
| GB | 5CrMnMo | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | 4.75-5.50 | 1.10-1.75 | -- | -- | -- | -- | -- |
| AISI | P20 | 0.30-0.40 | 0.80-1.20 | 0.20-0.40 | 4.75-5.50 | 1.25-1.75 | -- | -- | -- | -- | -- |
| JIS | SKT3 | 0.35-0.42 | 0.80-1.20 | 0.25-0.50 | 4.80-5.50 | 1.00-1.50 | -- | -- | -- | -- | -- |
| DIN | -- | 0.37-0.42 | 0.90-1.20 | 0.30-0.50 | 4.80-5.50 | 1.20-1.50 | -- | -- | -- | | |
| Size of P20/1.2311 Hot Work Mould Steel |
| Round bar | Diameter(mm) | Length (mm) | |
| Max:800 | Max: 9000 | |
| Plate | Thickness(mm) | Width (mm) | Length (mm) |
| Max:800 | Max:1000 | Max:6500 |
Applications:
1. Diecasting mould(mold, fixed block, upper die, jet nozzle, nitride thimble ).
2. Extrusion die(mold, supporting member, choke blocks).
3. Hot press die. (aluminum, magnesium, copper alloy)
4. Parts, such as cold cutting, overlap, hot shears, wearable parts.
5. Important parts for aviation industry.
