Beijing Finen Electronic Equipment Co., Ltd. >> 19 Inch Floor Standing Electronic Data Center Network Cabinet

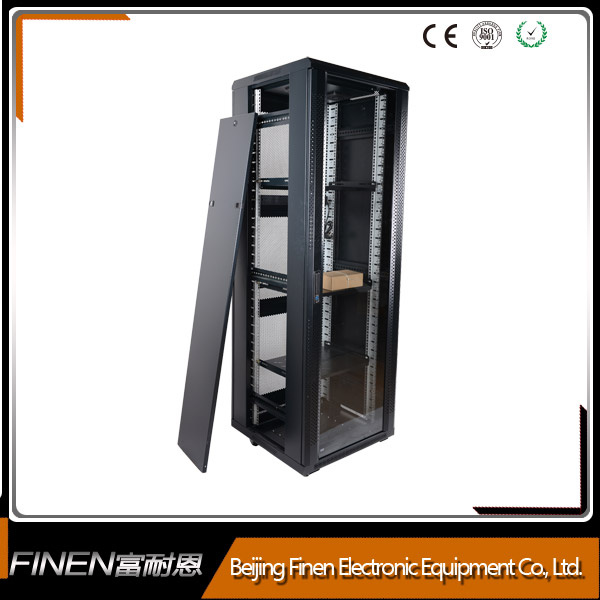

19 Inch Floor Standing Electronic Data Center Network Cabinet

19 Inch Floor Standing Electronic Data Center Network Cabinet
Price: US $ 80-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 15/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: AS Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Loading Capacity: 800kg
Product Name: Network Cabinet
Installation Type: Vertical
Optional Color: Black, Gray, White
Feature: Floor Standing Cabinet
Width: 600, 800mm
Depth: 600, 800, 1000mm
Material: SPCC Cold Rolled Steel
Surface Finish: Degreasing/Pickling/Phosphating/Power Coating
Front Door: Toughened Glass Door
Type: Network Cabinet
Usage: CCTV
Installation: Vertical
Certification: IEC
Condition: New
Fan Number: Optional
Capacity: 18u-47u

Product Description

Production Information





Basic Information

1) Standard

Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92ETSI Standard

2) Material

SPCC high-quality cold rolled steel

3) Thickness

Mounting profile 2.0mm

Others 1.2mm

4) Surface Finish

Degreasing, Pickling, Phosphating, Powder coating

5) Protection Degree

IP20

6) Loading Capacity

800kgs(=1763lbs)

7) Color

Optional:  Black(RAL9004)  White(RAL7035)  Grey(RAL7032)

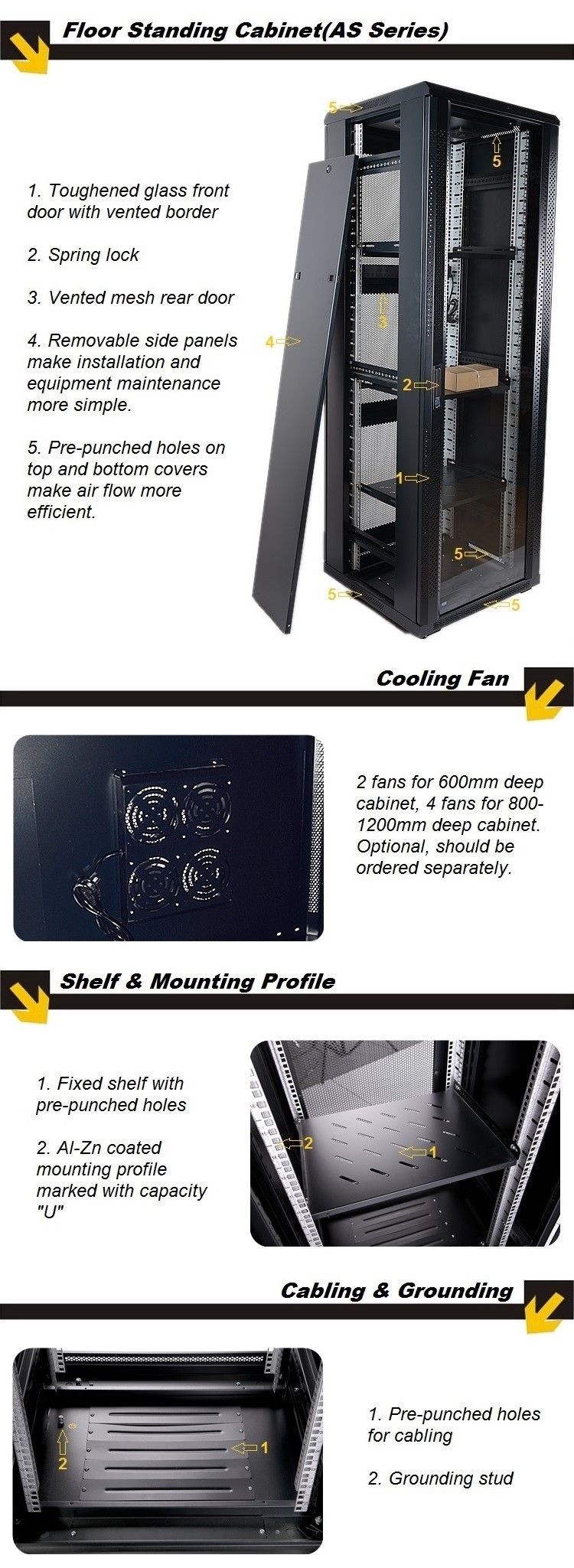

Features



 2 Sets of adjustable mounting rails(Zinc Plated)

 Cage nut style mounting rails

 Removable/lockable side panels

 Top and Bottom removable cable slots

 Glass front door/Vented Rear door


Specifications



 Width - 23.62 Inches (600mm), 31.50 Inches (800mm)

 Depth - 23.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm)

 Rail Width - 19 inch EIA Compliant



Advantage

1.Secure,firm and reliable

2. Easy to maintain equipment

3. Two Packing Ways:

    1).Assembly packing to save labour cost, ready to resell or use

    2).Disassembly packing to save space and transport cost, easy to assemble

4.Certification: ISO 9001:2000

5. OEM/ODM service available


Recommended options

Cabinet Package Contents:

√ Cabinet Frame -2 pcs
√ Side Panel -2 pcs
√ Top Cover -1 pcs
√ Bottom Panel -1 pcs
√Castor -4 pcs
√ Vented  Front door -1 pcs
√ Keys -1 set
√ Cage nuts & screws -1 bag
√ Vented split rear door - 1 pair
√Leveling feet - 4 pcs


Recommended options:

√ Fan assembly kit
√Racks Screws,Cage nuts
√Shelves
√PDU
√Plastic/Metal Cable management

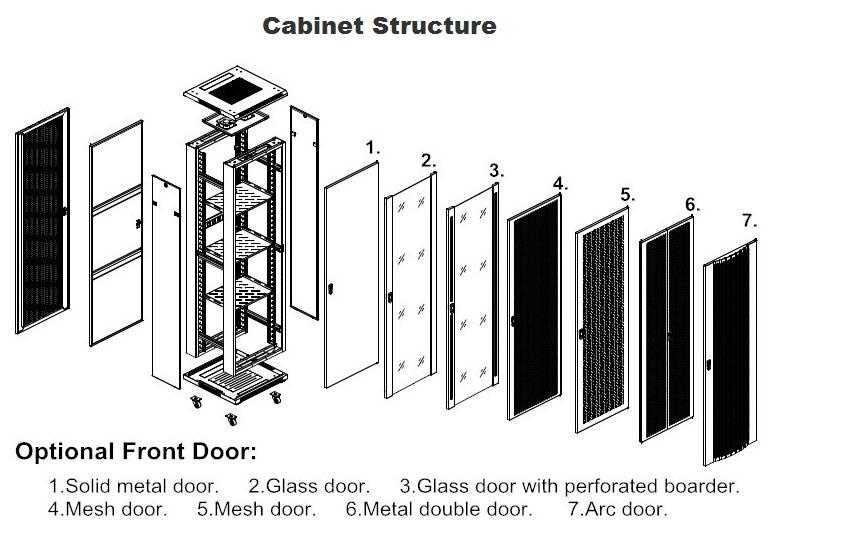

Cabinet Details

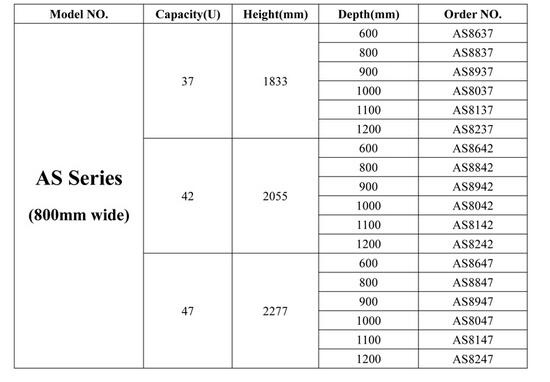

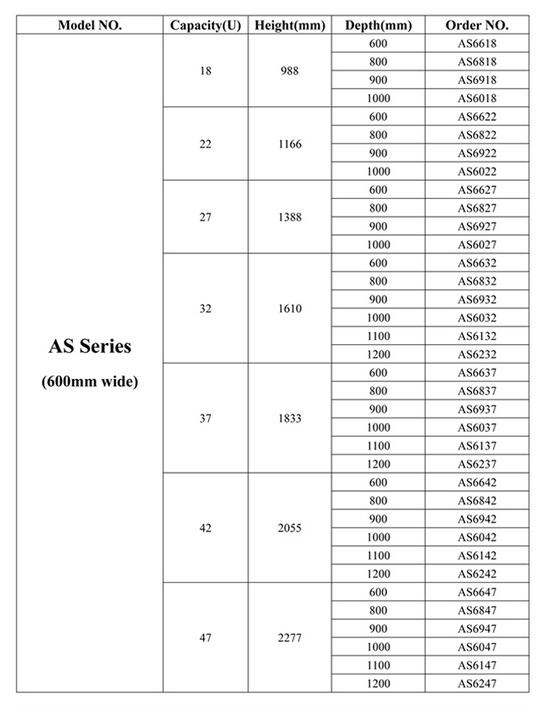

Specification


Packing Options



Who Are We?



1. A manufacturer of server rack and network cabinet with 25 years experience

2. Around 100 skilled engineers and more than 400 workers

3. 35000 square meters workshop

4. Customizing services, OEM services, etc.




Why us



Applications of Our Cabinets



Rack cabinets for Information Technology and telecommunication appliances use:



• Small, Medium and Large Servers

• DVR, Security Equipment and Routers

• Patch Panels and Switches

• Telephone Systems and PABX

• Network and Communications Equipment

• UPS Equipment

• Other Rack Mount Equipment



Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
