Ningbo Latitude Communication Equipment Co., Ltd. >> 19 Inch Wall Mount Server Cabinet with Glass Door

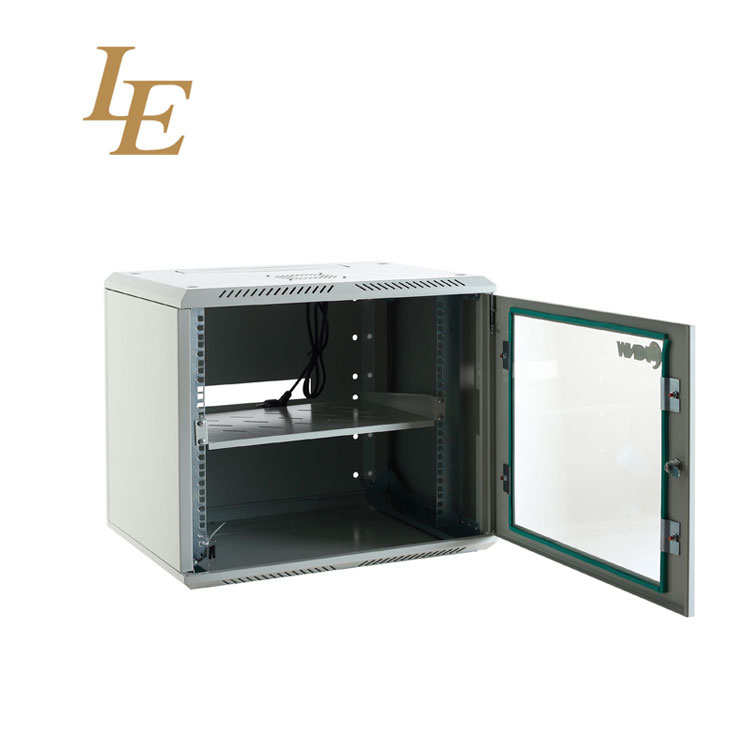

19 Inch Wall Mount Server Cabinet with Glass Door
| Price: | US $ 35-70/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
General Description:
1. Steel frame with assistant profile unassembled structure;
2. Single section,compatible with 19" standard equipments;
3. 5mm tempered glass front door with over 180 turning degree;
4. Cable entry on the top and bottom;
5. Blue Zinc L-shaped mounting profile,easy to adjustable on the mounting rail;
6. Fan cutout on the top,easy to install fan;
7. Back panel with mounting holes,easy to fix on the wall;
8. Various accessories for option;
9. Flat packing,save the container space,easy to transport;
1. Steel frame with assistant profile unassembled structure;
2. Single section,compatible with 19" standard equipments;
3. 5mm tempered glass front door with over 180 turning degree;
4. Cable entry on the top and bottom;
5. Blue Zinc L-shaped mounting profile,easy to adjustable on the mounting rail;
6. Fan cutout on the top,easy to install fan;
7. Back panel with mounting holes,easy to fix on the wall;
8. Various accessories for option;
9. Flat packing,save the container space,easy to transport;
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel Thickness: mounting profiles:1.5mm,Others:1.2mm Tempered glass Thickness:5mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 4U-18U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004; Ral9005; Ral7035 |
| Prod Model: | LE-WS4 |
|---|---|
| Product Name: | Data Server Rack Wall Mount 9u |
| Material Thickness: | Mounting Profiles:1.5mm,Others:1.2mm |
| Tempered Glass: | Thickness:5mm |
| Loading Capacity: | Static Loading: 60kg(on The Adjustable Feet) |
| Degree Of Protection: | IP20 |
| Surface Finish: | Degreasing,Pickling,Phosphating,Powder Coated |
| Height: | 4u-18u |
| Depth: | 600mm |
| Width: | 450mm,600mm |
| Color: | Ral9004; Ral9005; Ral7035 |
| Type: | Server Cabinet |
| Usage: | Network Integration System |
| Installation: | Wall-Mounted Cabinet |
| Certification: | SGS,TUV,BV |
| Condition: | New |
| Fan Number: | 1 to 2 PCS Fans |
| Capacity: | 4u-18u |
Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.
For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.
We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.
We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
