| Prod Model: |
H1 |
| Loading Capacity: |
1300kg |
| Product Name: |
Server Cabinet |
| Installation Type: |
Vertical |
| Optional Color: |
Black,Gray,White |
| Feature: |
Floor Standing Cabinet |
| Width: |
600mm,;800mm |
| Depth: |
600*800/1000/1100/1200;800*800/1000/1100/1200; |
| Surface Finish: |
Powder Coating |
| Material: |
Nine-Fold Profile; SPCC Cold Rolled Steel |
| Type: |
Network Cabinet |
| Usage: |
Wireless Monitoring System |
| Installation: |
Vertical |
| Fan Number: |
Four |
| Certification: |
RoHS |
| Condition: |
New |
| Capacity: |
42u |
Product Description

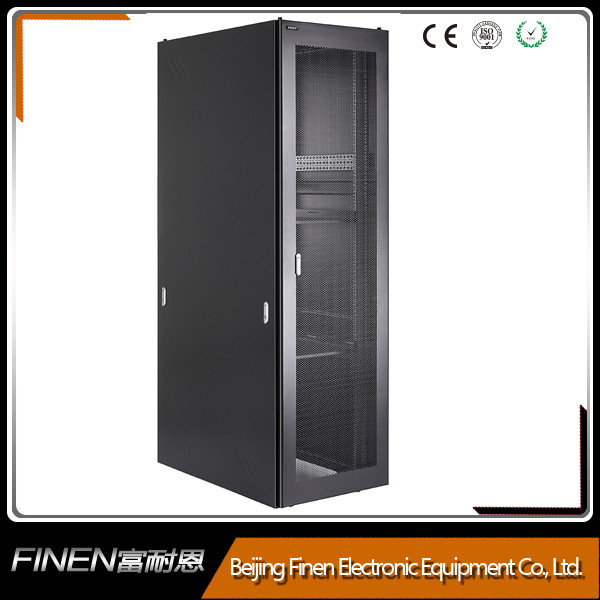

19'' SPCC Cold Rolled Steel Material Network Cabinet
1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service
Product information:
1). Industry Standard:Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard

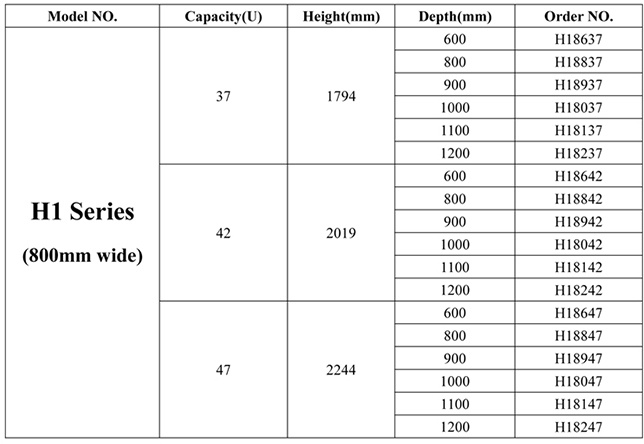

2). Capacity/Rack Units:42u
3). Loading Capacity: 1200kgs(=2204.62lbs)
4). Materials:Nine-fold profile; SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails:1.5mm
Other enclosures: 1.2mm
6) Surface Finish:Degreasing, Pickling, Phosphating, Powder coating
7)Protection Degree: IP20
8)Color:Black(RAL9004) White(RAL7035) Grey(RAL7032)

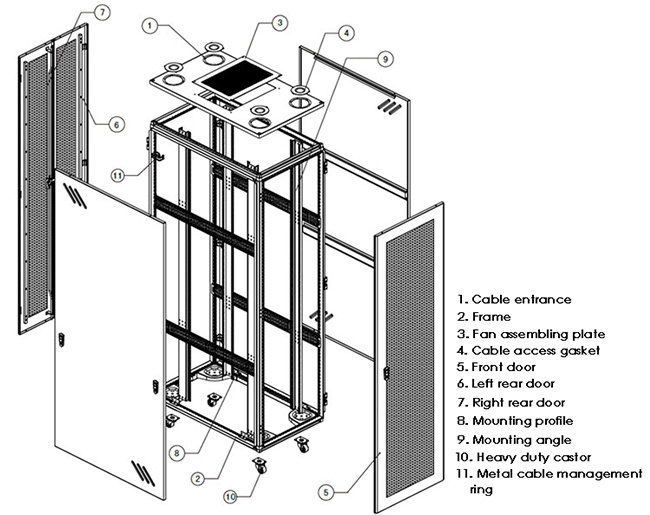

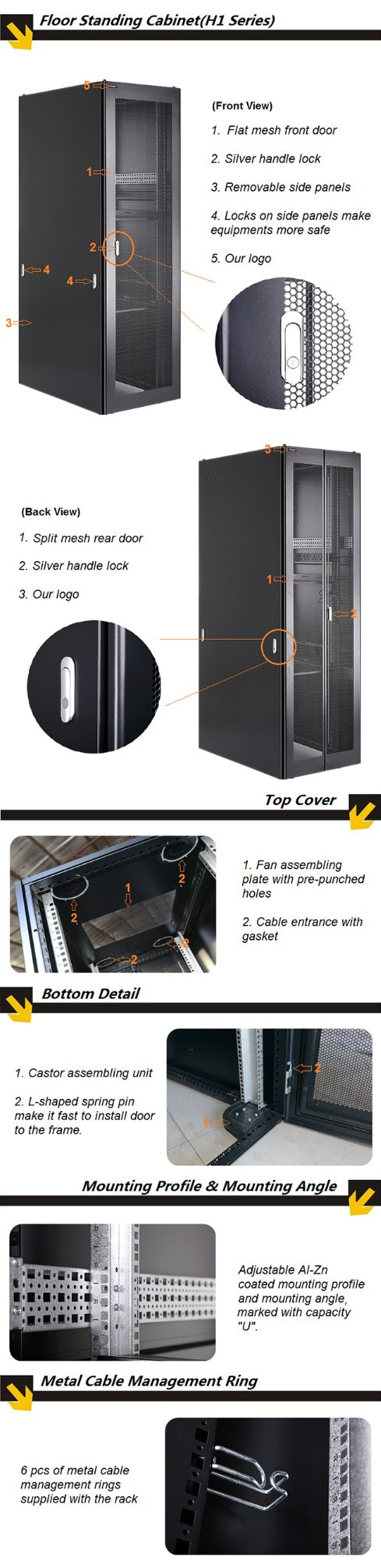

Features:2 Sets of adjustable mounting rails(Zinc Plated)
Cage nut style mounting rails
Removable/lockable side panels
Top and Bottom removable cable slots
Vented doors
Specifications
Width - 23.62 Inches (600mm), 31.50 Inches (800mm)
Depth - 23.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm)
Rail Width - 19 inch EIA Compliant
Advantage
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Recommended options
Fan assembly kit
PDU
Racks Screws,Cage nuts
Plastic/Metal Cable management
Shelves
