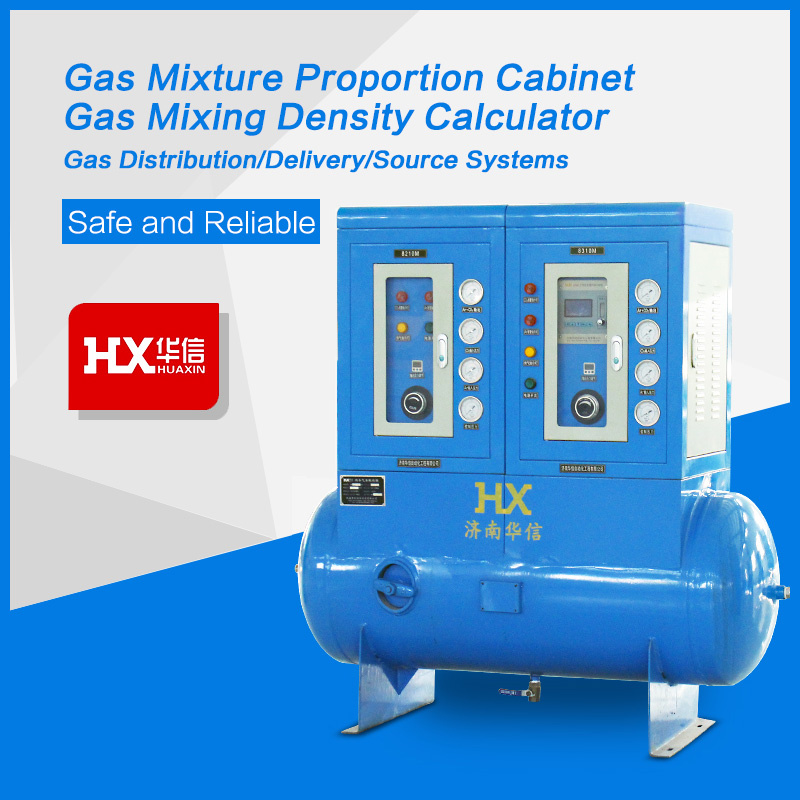

2017 Hot Sale, Double-Headpiece Gas Mixture Proportion Cabinet From Factory
| Price: | US $ 7500-8000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Design Features:
The series of gas mixture proportioning cabinet is specially designed for medium and small flow high precision two-element or multi-element gas proportioning. Input and output pressure of the product is adjustable and settable by itself. Thus, it can realize automatic control. It is equipped with an infrared analyzer. Consequently, the digital display of the proportioning content is more visualized and proportioning precision is higher.
Technical parameters:
8310M series
Output Flow: 50-300m3/h
Inlet Pressure: 0.6-1.0MPa
Outlet Pressure: 0.3-0.6MPa
Applicable Gas: (Ar+CO2/ Ar+O2/ Ar+CO2+O2/ Ar+H2/Ar+He/N2+CO2 and other two-element gases or multi-element gases)
Proportioning Range: It is arbitrary adjustable according to customers' manufacturing technological requirements.
Proportioning Precision: ±0.2-1.0 % (designed according to specific constituents of gas and technological requirements)
Connection Type: Stainless steel flange plate
Boundary Dimension: 1550×600×1400mm
Contact Name: David
Jinan Huaxin Automation Engineering Co., Ltd
Tel: +86-531-84887877
Fax: +86-531-85061266
Cell: +86 188 6688 4317
Web: www.gasmixer.net
| Prod Model: | 8310M |
|---|---|
| Color: | Blue |
| Task: | Adjust |
| Structure: | Combination |
| Mathematical Model: | Non-Linear |
| Signal: | Continuous |
| Function: | Measurement |
| Certification: | CE |
| Condition: | New |
| Customized: | Customized |
| Material: | Stainless Steel |
With "local ambition, global vision" as the core strategy, Jinan Huaxin Automation Engineering Co., Ltd with rigorous attitude. Adhere to the concept of continuous innovation, specializing in welding, cutting, polishing, polishing dust and dust treatment, for the industrial field workshop environmental management to provide products and overall solutions and Special welding Equipment. A high-tech enterprise of R & D, manufacturing, sales and service.
The company has the core technology and products about welding fume control and industrial waste gas treatment. And products widely used in the field of industry. A variety of products, strong technical support, help many customers get rid of the industrial waste gas on the workshop work environment.
So far, Company has co-operated with many well-known enterprises in China with high reputation, while the products have been exported to Southeast Asia, EU, Middle East more than 30 countries and regions. The company has been deeply study of customer site, understand the changing customer demand conditions, seriously listen to customer feedback for different customers, design and manufacturing of high efficient dust absorption, lasting filtration, purification system and low security products.
The company has the core technology and products about welding fume control and industrial waste gas treatment. And products widely used in the field of industry. A variety of products, strong technical support, help many customers get rid of the industrial waste gas on the workshop work environment.
So far, Company has co-operated with many well-known enterprises in China with high reputation, while the products have been exported to Southeast Asia, EU, Middle East more than 30 countries and regions. The company has been deeply study of customer site, understand the changing customer demand conditions, seriously listen to customer feedback for different customers, design and manufacturing of high efficient dust absorption, lasting filtration, purification system and low security products.
