Qingdao Olympia Heat Energy Equipment Co., Ltd. >> 2017 Most Popular 20-200 Kgs Garbage Waste Medical Waste Incinerator
2017 Most Popular 20-200 Kgs Garbage Waste Medical Waste Incinerator
| Price: | US $ 3000-20000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Garbage Waste Medical Waste Incinerator
Some introduction of the machine:
Improper disposal of medical rubbish with a large number of harmful bacteria and viruses, may have a bad effect on the local environment. Our company specializes in dealing with various medical wastes . In the process of burning , harmful gas can be transported to the high- temperature furnace of tail gas treatment through the flue. Complex and winding structure was adopted in the incinerator, which makes the residence time of flue gas in furnace excess 3s. By 1100 high temperature burning, all the bacteria and viruses are completely killed. Later the flue gas was conveyed into flue to cyclone separator and spraying device to further eliminate residual fine particles in flue gas. Finally, the chimney will release pollution-free flue gas into atmosphere.
Fully automatic control system was adopted in the incinerator. After the user already set the temperature, the incinerator starts to work. It won't shut off automatically until the temperature reaching the intended target .At this moment, it can burning itself and save the fuel, just keep the ventilation.
Large pieces of garbage needs crushing , so you can add trash crushing machine.
Under higher demand of exhaust emission, bag dust collector can be chosen optionally (instead of spray tower of flue gas) to reduce the dust in tail gas .
When burning the harmless and low toxicity of life trash, you can save some cost by not equipping the cyclone dust collector and spray tower of flue gas . Flue links are used.
The machine advantage: Burn fully and better, waste gas treatment more thorough. Carcinogen like Dioxin furan much less than others.
Characteristics:
1. Digital display temperature, full automatic control after set temperature;
2. Stable performance and reliable operation;
3. Full burning, it can burn out the medical waste including residues, plastics, organics and so on.
Smokeless and Odorless and no pollution to the environment.
4. Large capacity, can burn big waste directly like size 70cm.
5. Using 2nd combustion technology, fully burn harmful waste gas. No black smoke, ash less.
6. The internal use materials of high temperature and corrosion resistant, safe and reliable.
Application:
This equipment is suitable for the hospital medical waste, life rubbish, dead animals, the villages and towns of urban garbage disposal, and various aspects non-hazardous wastes treatment.
ART: FSL-100 technical parameters
The medical waste incinerator of FSL-100standard configuration
The medical waste incinerator air exhausting
FSL series Incinerator Parameters:

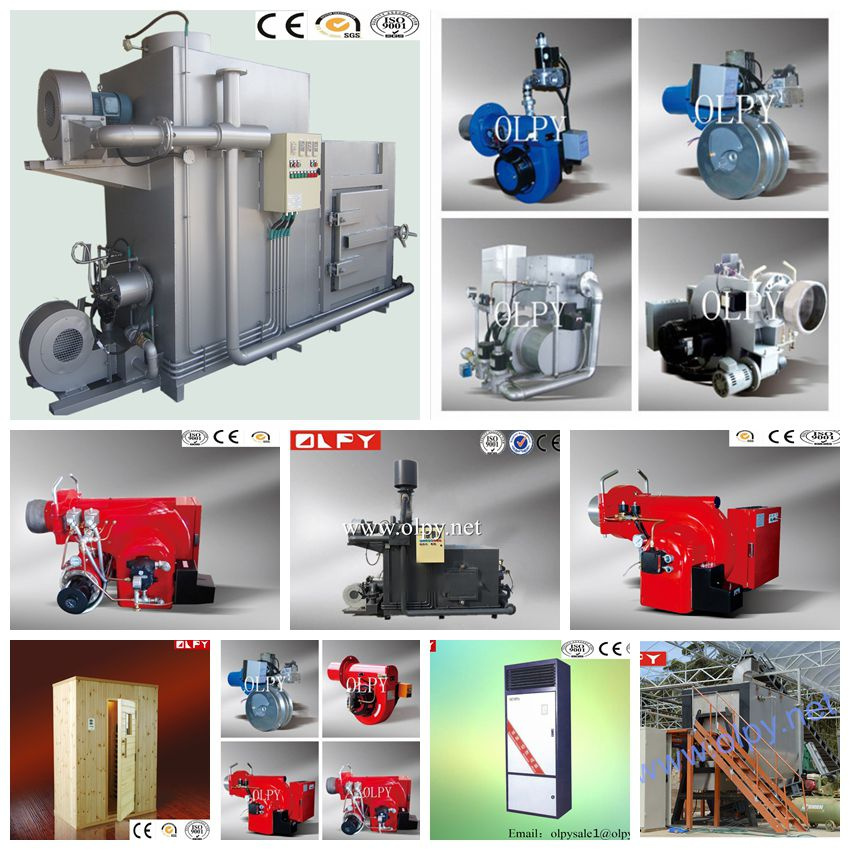

Some item photoes:
Company Profile:
Qingdao Olympia Heat Energy Equipment Co., Ltd. is a professional manufacturer producing burners and incinerators etc. The company in the early 1990s learned advanced technology from Japan, created the Liaoyang Olympia Co., Ltd. And in 2003, created Qingdao Olympia Heat equipment Co., Ltd.
The company produces products fuel, gas, oil and gas mixing burner. Sizes from small civilian burner to large industrial burners. Meanwhile we produce hot water boiler, stove, incinerators, organic fertilizer fermentor. In the past two years, the company has developed a non-emission green energy toilet, far infrared and far infrared sauna equipment road heating equipment.
Company in Shenyang, Shanghai, Nanjing, Changchun and other cities with distribution facilities, our technical department dedicated to providing technical advice and training, adhere to honesty, novelty, quality first for business purposes, based on high technology, sufficient to attract domestic and foreign advanced technology and experience, continue to provide quality products and services.
Our products are widely used in hotels, restaurants, highways, fitness center, sauna, factories, etc., especially for non-environmentally friendly toilet sewage treatment places, by the majority of users favor. Products with environmental protection, energy saving, safe, convenient, and efficient features, has won a good business reputation and high visibility, sales network throughout the country. We warmly welcome all walks of life to discuss about consulting, visit the guide, work together for China's energy and environmental protection industry to contribute.
WE NOT ONLY PRODUCE QUALITY COMMON USED INCINERATOR, BUT ALSO WE ARE THE LEADING SYSTEM SOLUTION PROVIDER IN CHINA.
Some introduction of the machine:
Improper disposal of medical rubbish with a large number of harmful bacteria and viruses, may have a bad effect on the local environment. Our company specializes in dealing with various medical wastes . In the process of burning , harmful gas can be transported to the high- temperature furnace of tail gas treatment through the flue. Complex and winding structure was adopted in the incinerator, which makes the residence time of flue gas in furnace excess 3s. By 1100 high temperature burning, all the bacteria and viruses are completely killed. Later the flue gas was conveyed into flue to cyclone separator and spraying device to further eliminate residual fine particles in flue gas. Finally, the chimney will release pollution-free flue gas into atmosphere.
Fully automatic control system was adopted in the incinerator. After the user already set the temperature, the incinerator starts to work. It won't shut off automatically until the temperature reaching the intended target .At this moment, it can burning itself and save the fuel, just keep the ventilation.
Large pieces of garbage needs crushing , so you can add trash crushing machine.
Under higher demand of exhaust emission, bag dust collector can be chosen optionally (instead of spray tower of flue gas) to reduce the dust in tail gas .
When burning the harmless and low toxicity of life trash, you can save some cost by not equipping the cyclone dust collector and spray tower of flue gas . Flue links are used.
The machine advantage: Burn fully and better, waste gas treatment more thorough. Carcinogen like Dioxin furan much less than others.
Characteristics:
1. Digital display temperature, full automatic control after set temperature;
2. Stable performance and reliable operation;
3. Full burning, it can burn out the medical waste including residues, plastics, organics and so on.
Smokeless and Odorless and no pollution to the environment.
4. Large capacity, can burn big waste directly like size 70cm.
5. Using 2nd combustion technology, fully burn harmful waste gas. No black smoke, ash less.
6. The internal use materials of high temperature and corrosion resistant, safe and reliable.
Application:
This equipment is suitable for the hospital medical waste, life rubbish, dead animals, the villages and towns of urban garbage disposal, and various aspects non-hazardous wastes treatment.
ART: FSL-100 technical parameters
| Burning waste | Medical waste |
| Fuel | Diesel |
| Processing capacity | 100kg/time |
| body size | 4060mm×1780mm×3820mm |
| Blower | Power 4+4 |
| Door size | 600mmx900mm |
| Running voltage | 380V 50Hz or 60 Hz |
| Weight | About 5500kg |
The medical waste incinerator of FSL-100standard configuration
| No | Name | Amount | Specifications | Notes |
| 1 | Incinerator | 1 | Q235 steel refractories | Main part |
| 2 | The 2 combustion chamber and the combustion chamber mixed | 1 | Q235 steel refractories | Installed in the main body |
| 3 | Electric box | 1 | The main body | |
| 4 | Combustion burner | 1 | OM-3 | The main body |
| 5 | Second burning burner | 1 | LT-51 | |
| 6 | Therm couple | 2 | 1100ºC | The main body |
| 7 | Operational procedures | 1 | The main body |
The medical waste incinerator air exhausting
| Exhaust air | The first time dedication(kg/h) | The second time dedication(kg/h) |
| SO2 | 0.279 | 0.163 |
| NOx | 0.286 | 0.219 |
| Smoke and Dust | 0,293 | 0.172 |
| Smoke blackness | <1 | <1 |
FSL series Incinerator Parameters:
| ART NO | PROCESS QTY PER TIME | OIL CONSUMPTION/HOUR | CONTROL | POWER SUPPLY | FAN POWER |
| FSL-20 | 20KG | 5-10 | Automatic | 220V/50HZ | 1.5+1.5 |
| FSL-30 | 30KG | 10-15 | Automatic | 220V/50HZ | 1.5+1.5 |
| FSL-50 | 50KG | 25-30 | Automatic | 380V/50HZ | 1.5+4 |
| FSL-100 | 100KG | 30-60 | Automatic | 380V/50HZ | 4+4 |
| FSL-200 | 200KG | 50-100 | Automatic | 380V/50HZ | 4+4+4 |

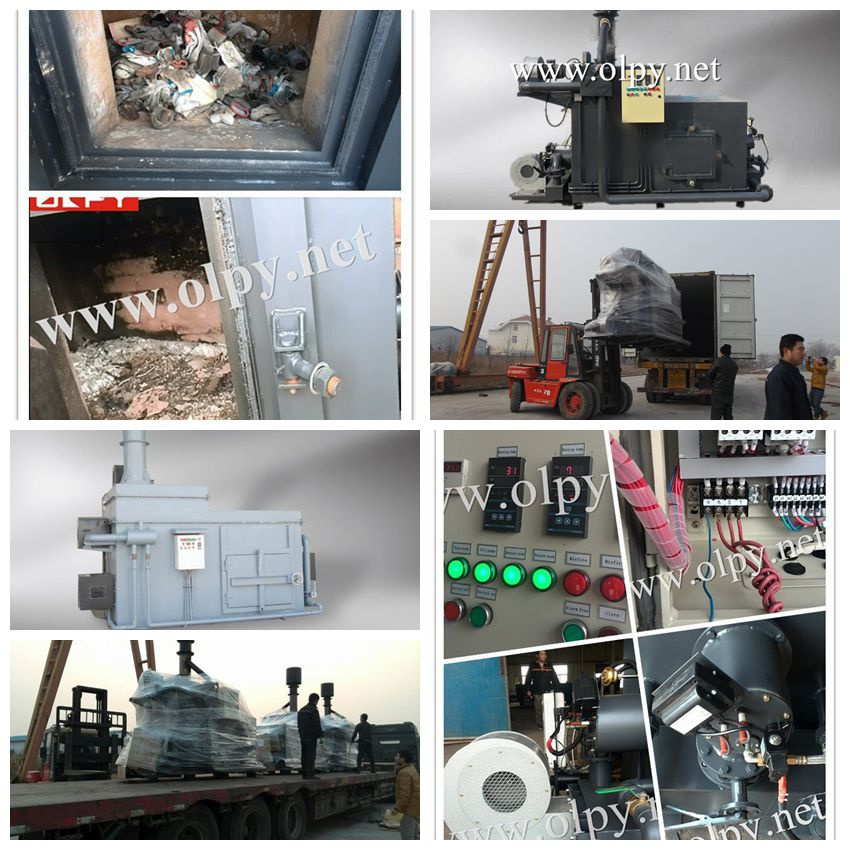

Some item photoes:
Company Profile:
Qingdao Olympia Heat Energy Equipment Co., Ltd. is a professional manufacturer producing burners and incinerators etc. The company in the early 1990s learned advanced technology from Japan, created the Liaoyang Olympia Co., Ltd. And in 2003, created Qingdao Olympia Heat equipment Co., Ltd.
The company produces products fuel, gas, oil and gas mixing burner. Sizes from small civilian burner to large industrial burners. Meanwhile we produce hot water boiler, stove, incinerators, organic fertilizer fermentor. In the past two years, the company has developed a non-emission green energy toilet, far infrared and far infrared sauna equipment road heating equipment.
Company in Shenyang, Shanghai, Nanjing, Changchun and other cities with distribution facilities, our technical department dedicated to providing technical advice and training, adhere to honesty, novelty, quality first for business purposes, based on high technology, sufficient to attract domestic and foreign advanced technology and experience, continue to provide quality products and services.
Our products are widely used in hotels, restaurants, highways, fitness center, sauna, factories, etc., especially for non-environmentally friendly toilet sewage treatment places, by the majority of users favor. Products with environmental protection, energy saving, safe, convenient, and efficient features, has won a good business reputation and high visibility, sales network throughout the country. We warmly welcome all walks of life to discuss about consulting, visit the guide, work together for China's energy and environmental protection industry to contribute.
WE NOT ONLY PRODUCE QUALITY COMMON USED INCINERATOR, BUT ALSO WE ARE THE LEADING SYSTEM SOLUTION PROVIDER IN CHINA.
| Prod Model: | FSL-100 |
|---|---|
| Machine Weight: | 5.5 Ton |
| Oil-Consumption(Kg/H): | 30-60 |
| Control Mode: | on-off |
| Power Of Fan(Kw): | 4+4+4+0.25(Power of Oil Pump ) |
| Process Per Time: | 100kg |
| Temperature Control: | Automatic |
| Electricity: | 380V/50Hz |
| Width Of Machine: | 1300 |
| Door Size: | 600*900 |
| Burn Room Size: | 1700*600*900 |
