Jiangsu Erhuan Environmental Technology Co., Ltd. >> 2017 New Design Designed Spark Arrester Downdraft Table

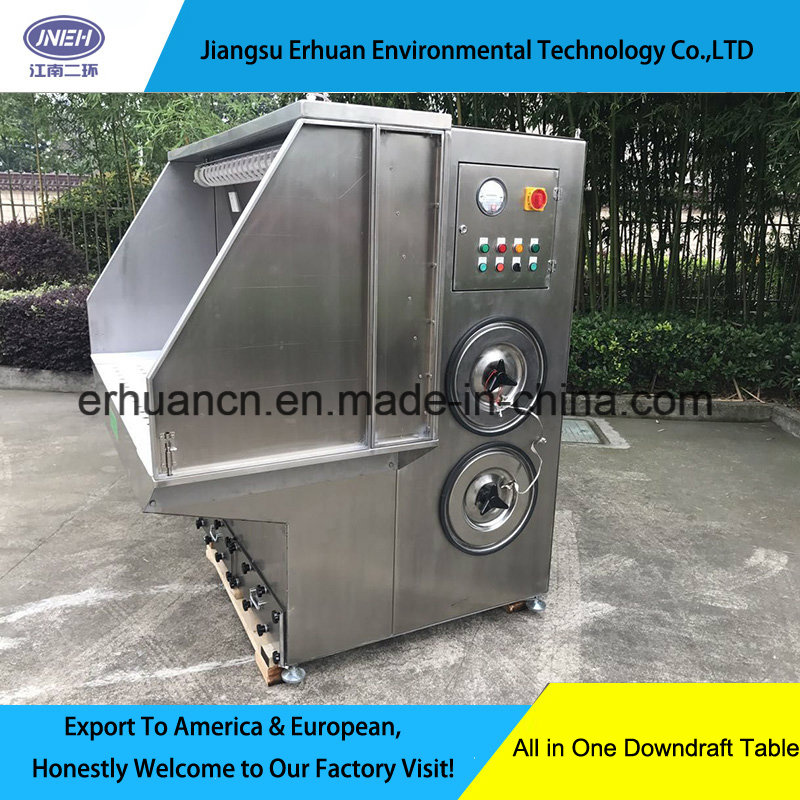

2017 New Design Designed Spark Arrester Downdraft Table

2017 New Design Designed Spark Arrester Downdraft Table
Price: US $ 4360-8850/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: EH-DB2000
Character: with Sparkle Arrester
Material: Carbon Steel or SUS304
Application: Cutting, Grinding, Welding, Polishing, Mixing
Valve: Australia Goyen
Air Filter Cartridge: Donaldson / BHA
Air Volume: 2000m3/H-10000m3/H
Fan: 5.5kw
Motor: Siemens
Dust Remove Efficiency: 99.99%
Control Box: Donaldson

Product Description

Product Description:

 AUTOMATICALLY  SELF-CLEANING FILTER CATRIDGE  DOWNDRAFT TABLE Detail:

1). Pulse Jet Reverse Cleaning

2).ISO 9001:2008 Certificate

3). Tight and neat structure with smaller occupied areas in efforts to provide more workbench.

4). The filter cartridge with long service life, stable performance and is easy to replace.

5). Customization is available; we can supply the non-standard products according to user's actual needs.
We provide a series of turnkey project including design, manufacture, installation, commissioning and after-sales services according to on-site status.


Erhuan Downdraft Table Model Choosing:



NO.DescriptionTechnical Data
1Model No.DB2000
2Air volume1500-2000m³/h
3Filter Area47
4Filter CartridgeDonaldson / BHA Flam Retartant antistatic
5Wind load rating 1.7m/min
6Filter materialFlam Retartant antistatic filter cartridge
7Filter Qty2pcs
8Goyen Pulse valve2pcs
9Goyen Pulse valve head2
10inlet concentrationless than 50g/m³
11Efficiency 99.999% against 0.2μm
13Cleaning wayCompressed air reverse pulse jet
14Occupy area
  1. L*W*H:1000mm*850mm*800mm
  2. Total Height:1700mm
  3. Lenght can be extended to 1700mm
15G.W300kg
16Fan1.5kW,380/50/3 Explosion-Proof Motor
17Configuration instructions
  1. Except the body of downdraft bench are used inland Q235 material, other parts material are all imported from overseas.
  2. Explosion-proof lamp on the top of table
  3. Soft air deflector can prevent the workpiece knock against.
  4. Noise can be meet GBZ/T189.8-2007 less than 70dBa.
  5. Filler regulation

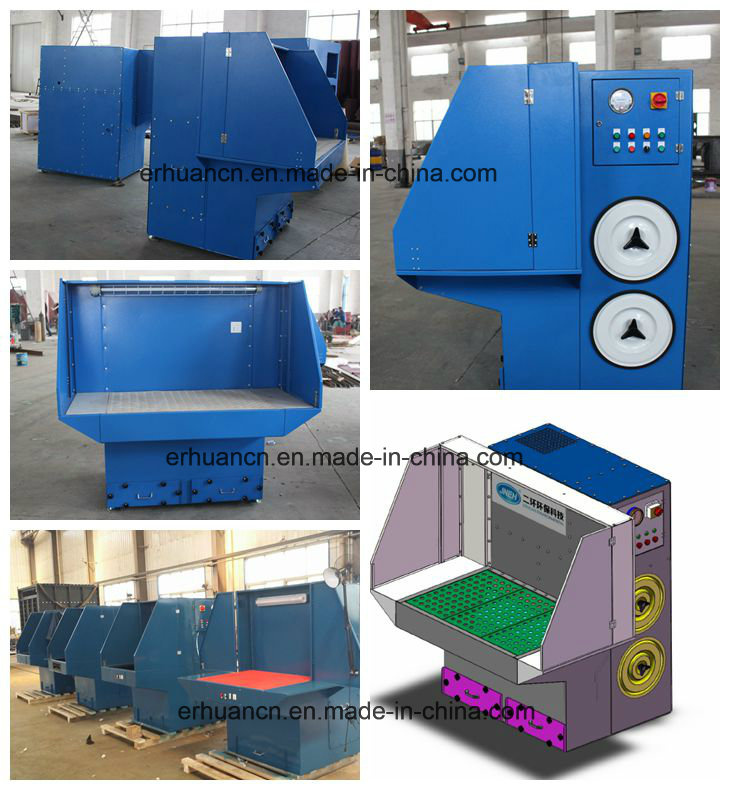

Downdraft Table photos:

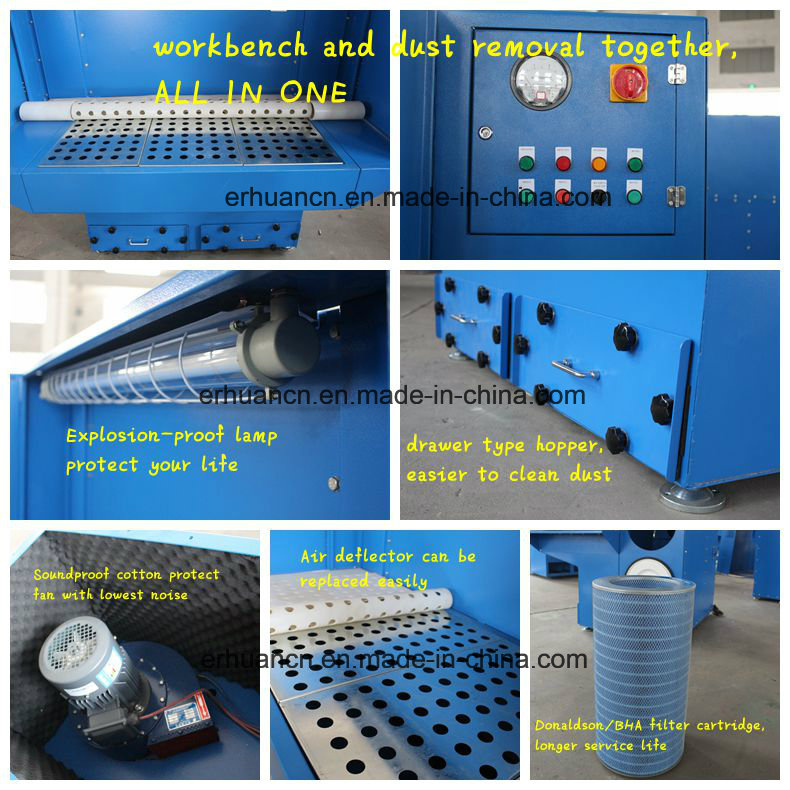

Downdraft Table Characters:

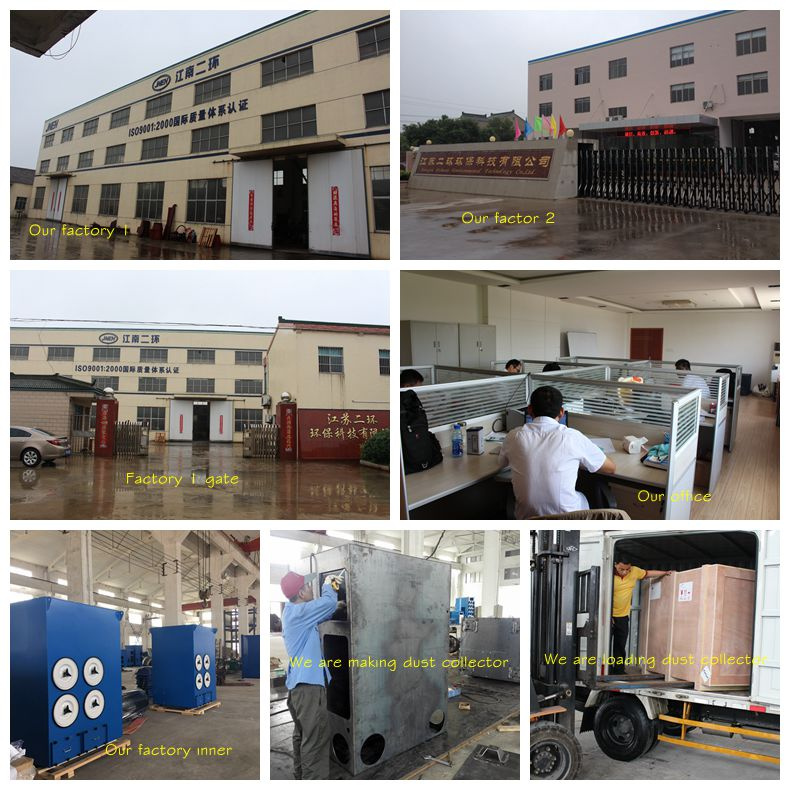

Our downdraft bench processing factory:


We are on Exhibitions:


We have enough stock to meet your urgent request:

For Shipping:

all our dust collectors are model design, block assembly, easy for domestic shipping and long distance sea shipment,
also accept air shipment from Shanghai,
fast installtion after arriving your factory,
fast delivery after order,










Erhuan factory was established in 1982, which specialize in making spare parts of pring & environmental machines, we highly values intellectual property and has gained many national patents. And it has also developed a number of high-tech products and passed the ISO9001: 2008 international quality system certification. Our products are exported to American, Canada, Korea, Singarpore, Vitemen, India, Parkistan etc, more than 50 countries, the main products include:

Printing spare parts main products: We have more than 80 series 300 kinds of specifications products, such as cloth clips, chains, pin holders, pin plates, scraper, scraper holder, bulkhead, Lubrication plate, three-finger selvedge uncurler, plate selvedge uncurler, guide rail boards etc; These procducts can be used in various of stenter setting machine, mercerizing machine, blankets machine, , coating machine, rapid steamer, oxygen bleaching machine, flat screen printing machine, printing and dyeing machinery

Environmental protection machines include: Cartridge filter dust collector, baghouse dust collector, wet scrubber, RO reverse Osmis, printing waste water treatment device, Heavy metal wastewater treatment machine, lead-acid storage battery processing machine etc, these machines are mainly used for collect industrial harmful dust, waste gas treatment & water treatment.

Along with 30 years experience, our company culture as "integrity, high-efficiency, innovation and transcendence", we constantly introduces advance technology and equipment, not only high quality products are supplying to customers but also the optimal solution and perfect after-sales service.

Warmly welcome to our factory have a visit!
