| Price: | US $ 1000-1050/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | EBILMETAL-TPR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | as Request |
| Color: | as Request |
| Certificate: | CE |
| Capacity: | 1001kg-5000kg |
| Steel Material: | Q235 B |
| Feature: | Corrosion Protection |
| Brand Name: | Ebilmetal |
| Length: | as Request |
| Width: | as Request |
| Rack Height: | as Request |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Height: | 5-15m |
| Weight: | 150kg |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Type: | Storage Rack |
Teardrop selective heavy duty pallet racking for warehouse storage equipment

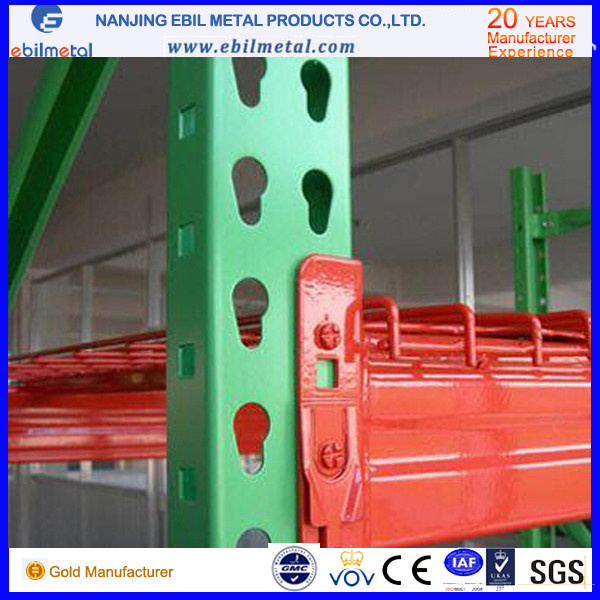

Teardrop Pallet Racking/ Pallet Racks
(Teardrop Style has following features):
Beams Features:
1) Spring automatic safety locks
2) Both Step beam and Box beam are available
3) Special 3 or 4 rivets beam brackets
Uprights Features:
1) C type Section and Omega type Section are available
2) Frame Bolted or Welded
3) Steel thickness is 15ga, 14ga , 13ga
Foot plates Features:
Both Standard Foot Plate and Seismic Foot Plate are available
Advantages of Our Teardrop Style Pallet Racking:
Teardrop Uprights
Upright Section | Frame Structure | Frame Structure | Frame Height |
3" x 3" | Welded & Bolted | 15Ga, 14Ga, 13Ga | 42" 48" 54" 60" 66" 72" 78" 84" 90" 96" |
3-1/2'' x 2-2/5'' | Welded & Bolted | 15Ga, 14Ga, 13Ga | |
3-1/2'' x 2-3/5'' | Welded & Bolted | 15Ga, 14Ga, 13Ga | |
3-1/2'' x 3-7/10'' | Welded & Bolted | 15Ga, 14Ga, 13Ga |
Teardrop Beams
Beam Section Selection | Beam Section Height | Beam Length |
Stepped Beams | 2'', 2 2/5'', 3 3/20'', 4 1/3'' | 48" 72" 92" 96" 100" 104" 108" 112" |
Stepped Beams with Nosed (Stepped Box Beams) | 3 3/20'', 4'', 4 3/4'', 5 1/2'' | 96" 108" 120" 144" |
Box Beams | 3 3/20'', 4'', 4 3/4'', 5 1/2'', 6 5/16'' | 48" 96" 108" 120" 132" 144" |

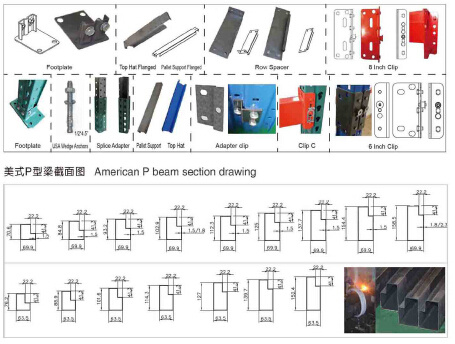

American P beam section drawing
Beam Section: 2-25/32'', 3-11/32'', 3-21/32'', 4-1/16'', 4-21/50'', 4-29/32'', 5-21/50'', 6-3/32'', 6-1/4''*2-3/4''

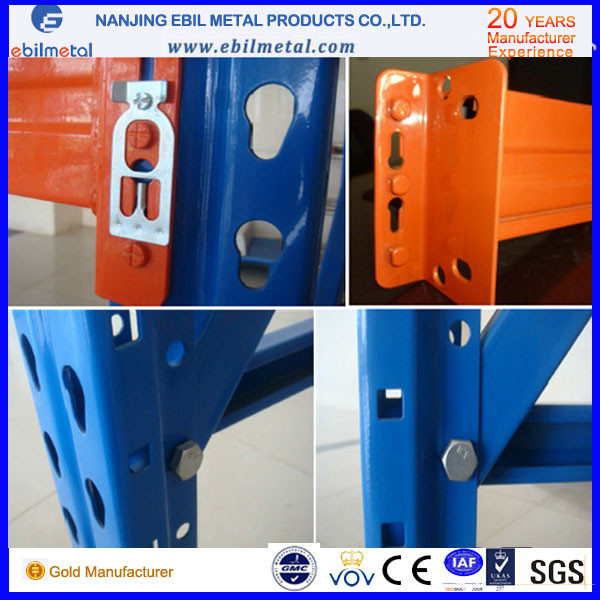

Photos of teardrop racking
Parameters:

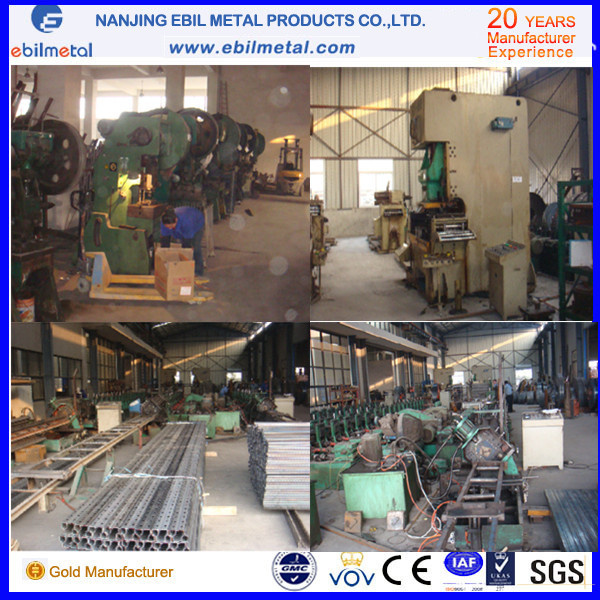

Ebil Metal (China Factory) is a specialized designer and manufacturer of storage logistics techniques systems, including metal racks, multi-layer /Mezzanine warehousing systems,warehouse storage logistics solutions systems has more than 20 years experiences and exported more than 160 countries.
1. What makes you different with others?
1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at 0086-25-52757208, we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.
3) Our Special Export Design

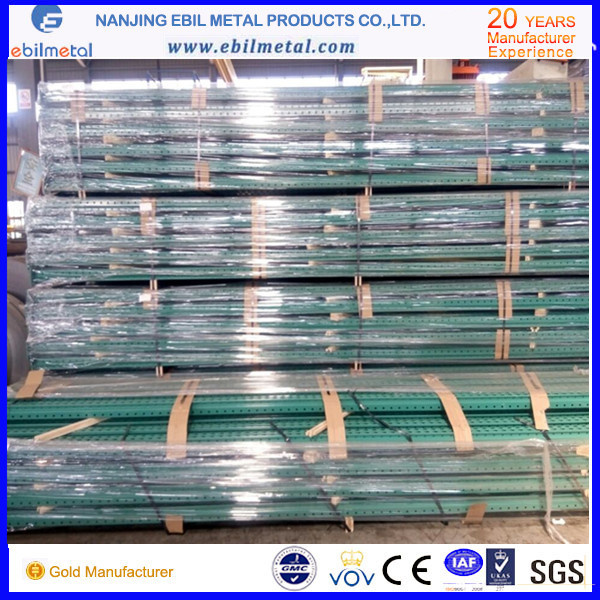

We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Export Experience
We are a manufacturer which wholesales storage rack in large quantity for over 20 years.
2. What is delivery times?
This depends on the product. Typically standard products are delivered within 20 days.
The delivery time of the special products is according to the time of setting up of the tooling.
3.What is the term of payment?
1) T/T payment.
2) LC
4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
5. Are samples available?
Yes, we can send some sections of samples for your reference by express.
