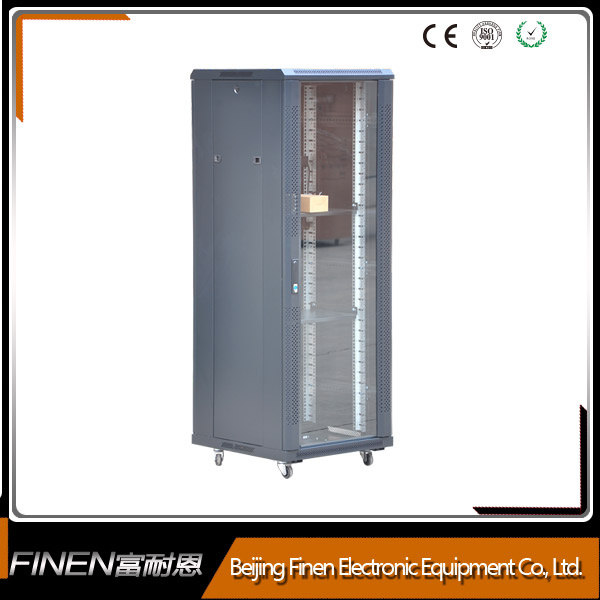

22u Server Rack Floor Standing 19inch Cabinet
| Price: | US $ 140/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
Product Information
1. Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART, GB/T3047.2-92,; ETSI Standard
2. Feature
-Toughened glass front door with vented border and ergonomic handle lock
-Vented rear door with round lock
-Zinc Plated mounting profile
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and base plate with adjustable sizes
-Optional installation of plinth for extra ventilation and ease of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable side panels, easy to install and remove, key locks available are accessory.
3. Main Material
SPCC Cold rolled steel
4. Surface Finish
Degreasing, Pickling, Phosphating, Powder coating.
5. Degree of Protection: IP20
6. Loading Capacity: 800kg
Nework Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Network server cabinet Package Contents
1) 2 x Cabinet frames
2) 2 x Side Panels
3) 1 x rear Door (Mesh door or Solid)
4) 1 x Front Door -square holes Mesh door
5) 2 x Adjustable shelves
6) 1 x bottom pannels
7) 1 x Power Distribution Unit (8 Outlets)
8) 1 x Bag of Nuts and Bolts
9) 1 x Fan Tray with 2 fans
10) 1 x Set of Castors
11) 1 x Set of Levelling Feet
12) 1 x Set of Keys for all doors
1. Standard:
Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART, GB/T3047.2-92,; ETSI Standard
2. Feature
-Toughened glass front door with vented border and ergonomic handle lock
-Vented rear door with round lock
-Zinc Plated mounting profile
-Adjustable feet and heavy duty castors are supplied
-Cable entry on the top cover and base plate with adjustable sizes
-Optional installation of plinth for extra ventilation and ease of cabling
-Efficient and reliable cabinet connection with use of baying kit
-Removable side panels, easy to install and remove, key locks available are accessory.
3. Main Material
SPCC Cold rolled steel
4. Surface Finish
Degreasing, Pickling, Phosphating, Powder coating.
5. Degree of Protection: IP20
6. Loading Capacity: 800kg
Nework Cabinet Applications
Rack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Network server cabinet Package Contents
1) 2 x Cabinet frames
2) 2 x Side Panels
3) 1 x rear Door (Mesh door or Solid)
4) 1 x Front Door -square holes Mesh door
5) 2 x Adjustable shelves
6) 1 x bottom pannels
7) 1 x Power Distribution Unit (8 Outlets)
8) 1 x Bag of Nuts and Bolts
9) 1 x Fan Tray with 2 fans
10) 1 x Set of Castors
11) 1 x Set of Levelling Feet
12) 1 x Set of Keys for all doors
| 1.Standard | Complies with ANSI/EIA RS-31O-D,IEC297-2,DIN41491:PART1,DIN41494:PART7,GB/T3047.2-92,;ETSI Standard |
| 2.Feature | -Tempered glass Front Door With Over 180 Turing Degree-Vented rear door with round lock -High-Density square holes Rear Door (Ventilation Rate Above 75%) -Side Panel: Removable Side Panel, easy To Install And Maintain (Lock Optional) -Zinc Plated mounting profile -Adjustable feet and heavy duty castors are supplied -Cable entry on the top cover and base plate with adjustable sizes -Optional installation of plinth for extra ventilation and ease of cabling -Efficient and reliable cabinet connection with use of baying kit -Removable side panels, easy to install and remove, key locks available are accessory. |
| 3.Main Material | SPCC Cold rolled steel |
| 4.Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
| 5.Degree of Protection | IP20 |
| 6.Loading Capacity | 800kg |
| Model | Specifications |
| AS6618 | 600mm*600mm*18U |
| AS6622 | 600mm*600mm*22U |
| AS6632 | 600mm*600mm*32U |
| AS6637 | 600mm*600mm*37U |
| AS6642 | 600mm*600mm*42U |
| AS6842 | 600mm*800mm*42U |
| AS6042 | 600mm*1000mm*42U |
| AS8842 | 800mm*800mm*42U |
| AS8042 | 800mm*1000mm*42U |
| Prod Model: | AS Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: | 800kg |
| Product Name: | Network Cabinet |
| Installation Type: | Vertical |
| Capacity: | 18u-47u |
| Optional Color: | Black,Gray,White |
| Feature: | Floor Standing Cabinet |
| Width: | 600,800mm |
| Depth: | 600,800,1000mm |
| Surface Finish: | Powder Coating |
| Material: | SPCC Cold Rolled Steel |
| Type: | Network Cabinet |
| Usage: | Network Integration System |
| Certification: | RoHS |
| Installation: | Vertical |
| Condition: | New |
| Fan Number: | Optional |
