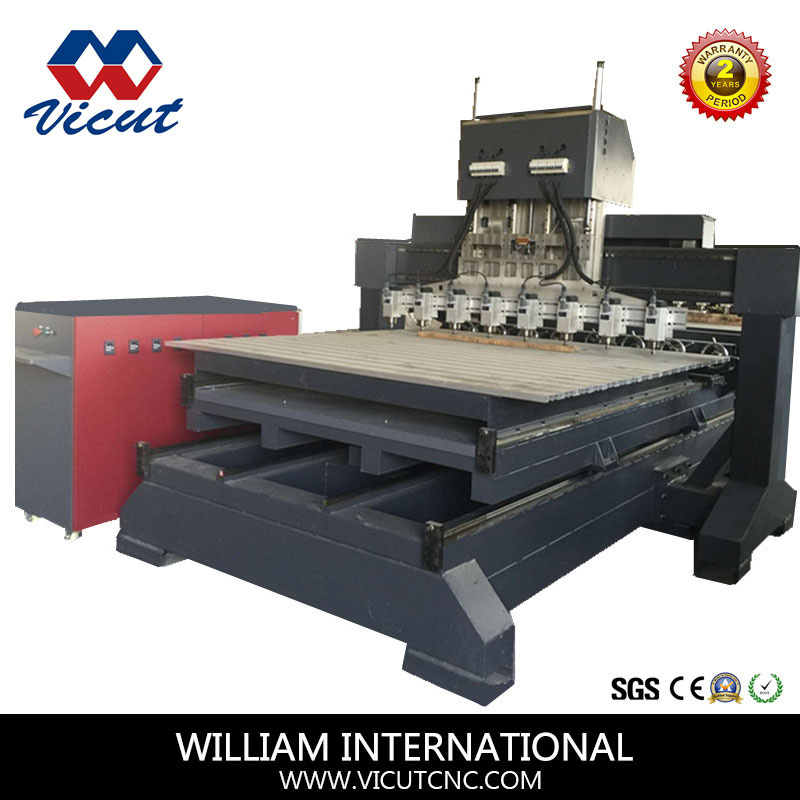

2D/3D CNC Engraver with High Accuracy
| Price: | US $ 14500-25500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

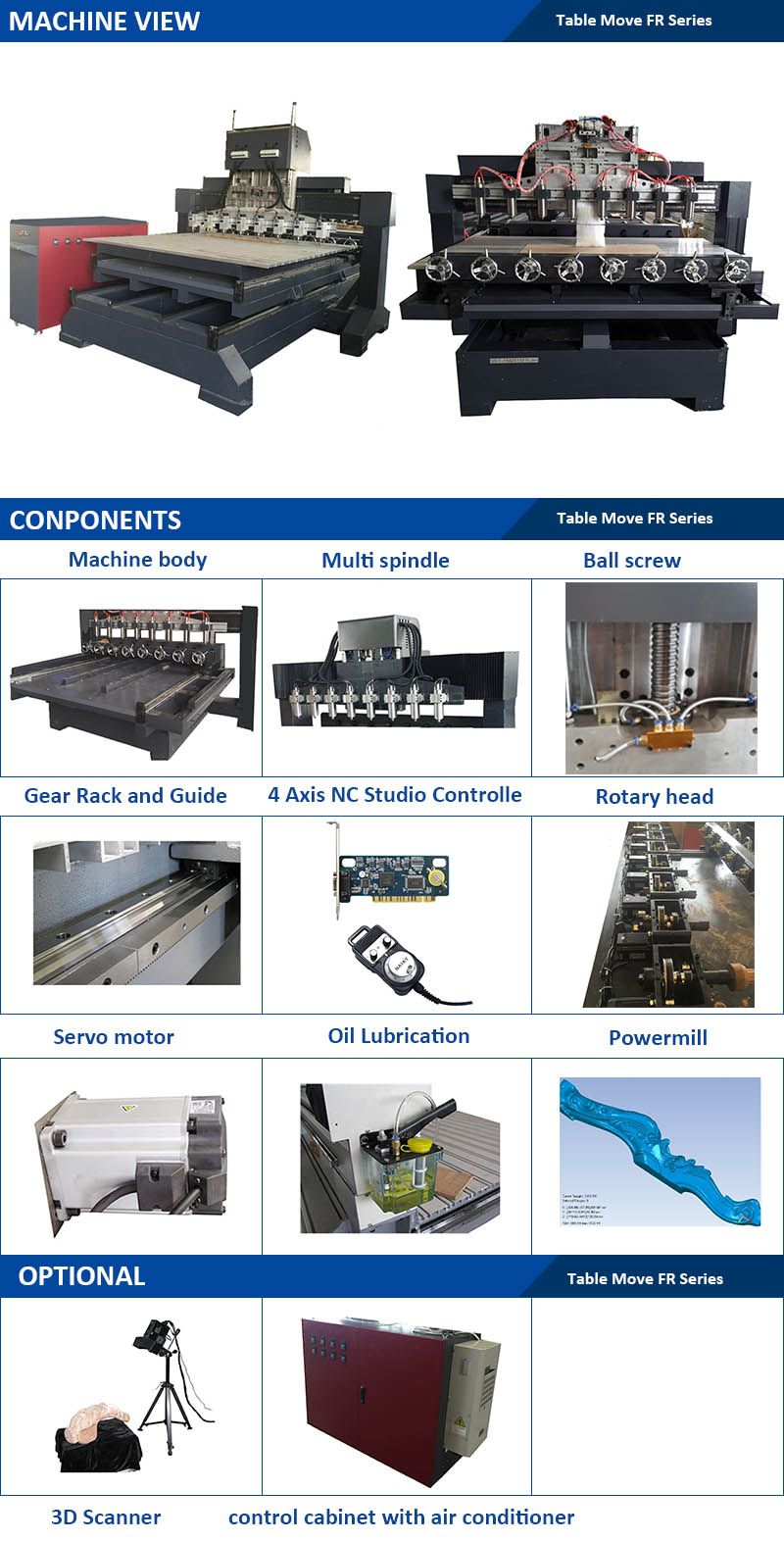

Table Move Flat & Rotary CNC Carving machine
Features:
1. Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
2. Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
3. Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine
4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Samples:
Technical Parameters:
Features:
1. Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
2. Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
3. Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine
4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Samples:
Technical Parameters:
| Model | VCT-TM2515FR-8H | VCT-TM2523FR-10H |
| Dimension | 3000×1900mm(9.8'x6.3') | 3000×2700mm(9.8'x8.9') |
| 2D Working Size | 2500×1500×250mm(8.2'x4.9'x0.8') | 2500×2300×250mm(8.2'x7.5'x0.8') |
| Spindle Power | Water cooling 2200W×8PCS | Water cooling 2200W×10PCS |
| No. Of Rotary | 8 PCS | 10 PCS |
| Motors & Drivers | XYZ axes use Panasonic/Schneider servo motor, A axis use Leadshine hybrid servo | |
| Rotary Transmission | One hybrid servo motor drive one rotary with Belt box transmission ( Gear box transmission is optional) | |
| 3D Rotary Working Size | 1100mm(length)*250mm(rotary diameter) | 2000mm(length)*250mm(rotary diameter) |
| Air Cylinder Support | Yes (300MM long air cylinder) | |
| Oil Lubrication system | Yes | |
| Tool Diameter | 4/6/8/12mm | |
| Body Structure | Thick steel tube welding | |
| XYZ Transmission | XYZ TBI 4010 ball screw | |
| Guiding Rails | XYZ Taiwan PMI Linear Square Rails | |
| Reposition Accuracy | <0.03/300mm | |
| Max Engraving Speed | 15000mm/m | |
| Spindle Speed | 6000~240000rpm | |
| Controller | 4 axis NC Studio Controller with handle wheel ( Use computer to control the machine) | |
| Format of Instruction | G code or HPGL | |
| Voltage | 380V/60Hz or 220V/50HZ | |
| Weight | 3000KGS | 3500KGS |
| Packing Size | 3000×2200×2200mm(15CBM) | 3000×2200×2200mm(15CBM) |
| Prod Model: | VCT-TM2515FR-8H |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: | Flat&Rotary CNC Wood Router |
| Usage: | Wood |
| Power: | High Power |
| Motor Driver: | Japan Panosonic Servo Motor 1kw |
| Spindle Speed: | 6000-24000rpm |
| Control: | CNC |
| Current: | AC |
| Working Size: | 2200X2500X200mm |
| Spindle Layout: | Vertical |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
| Spindle Number: | 8 |
