2X6m Steel Plate CNC Laser Plasma Cutting Table
| Price: | US $ 20000/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
2X6M Steel Plate CNC Laser Plasma Cutting Table
TAYOR- China Large-scale Manufacturer of Cutting and welding machinery
CNCTG
Economical and Practical
CNCTG series of table type Cutting Machine is high-efficiency, high reliability, economical and utility cutting machine which can be quick installed and removed.
with the Combination of digital control, high precision mechanical driving and thermal cutting technique, it will be able to keep stable cutting quality with highest standard under the long-term high-intensive working conditions.
Optional Water surface cutting table or integration dust extraction can purify the fume, metallic dust and harmful gas effectively during the plasma cutting.
It is suitable for economical cutting of medium carbon steel plate and sheet, stainless steel, nonferrous metal and alloy plate.
Stable and reliable modularization cutting unit, quick installation, no foundation preparation, space saving, flexible and durable.
High accuracy mechanical driving, good finish surface, little slag, almost no secondary treatment.
Low use-cost, without special maintenance, friendly operation panel, easy-to-learn.
Utility CNC system, safety and reliable, automatic programming, optimization nesting and piercing path, save steel efficiently
Optional items: Dregs storage, water surface cutting table, Integration dust extraction.

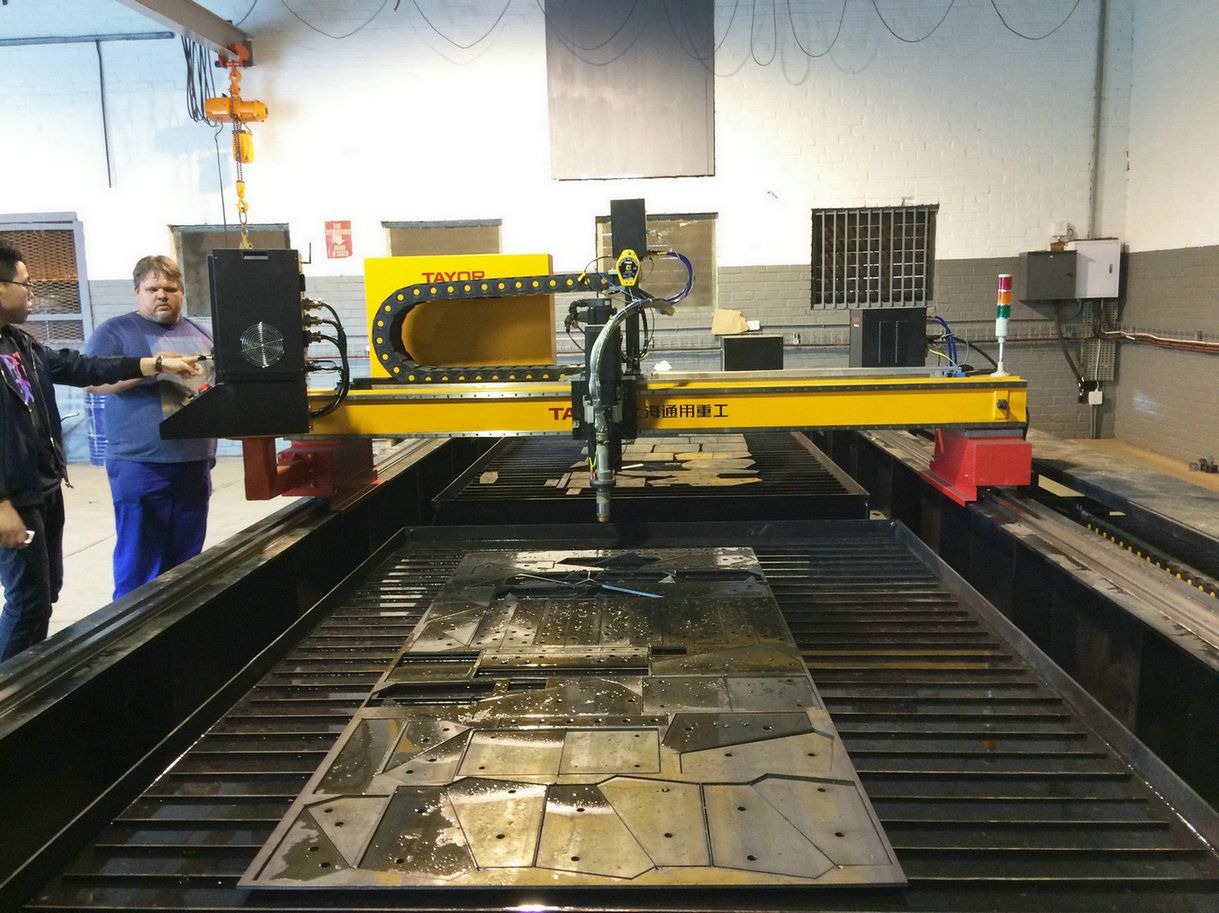

Gantry Type CNC Plasma And Flame Cutting Machine
TAYOR- China Large-scale Manufacturer of Cutting and welding machinery
CNCTG
Economical and Practical
CNCTG series of table type Cutting Machine is high-efficiency, high reliability, economical and utility cutting machine which can be quick installed and removed.
with the Combination of digital control, high precision mechanical driving and thermal cutting technique, it will be able to keep stable cutting quality with highest standard under the long-term high-intensive working conditions.
Optional Water surface cutting table or integration dust extraction can purify the fume, metallic dust and harmful gas effectively during the plasma cutting.
It is suitable for economical cutting of medium carbon steel plate and sheet, stainless steel, nonferrous metal and alloy plate.
Stable and reliable modularization cutting unit, quick installation, no foundation preparation, space saving, flexible and durable.
High accuracy mechanical driving, good finish surface, little slag, almost no secondary treatment.
Low use-cost, without special maintenance, friendly operation panel, easy-to-learn.
Utility CNC system, safety and reliable, automatic programming, optimization nesting and piercing path, save steel efficiently
Optional items: Dregs storage, water surface cutting table, Integration dust extraction.
| Technical Specification | ||||
| Model | CNCTG1520 | CNCTG1530 | CNCTG2060 | CNCTG2580 |
| Effective cutting area (mm) | 1500x2000 | 1500x3000 | 2000x6000 | 2500x8000 |
| Machine size(mm) | 2000x3000 | 2000x4000 | 2500x7000 | 3000x9000 |
| Suggested cutting Thickness(mm) | Oxy-fuel: 5-60mm(Max 100mm) Plasma: 1-30mm | |||
| Basic components | ||||
| Cutting Mode | Plasma/ Oxy-fuel | |||
| Structure of working table | Split-type | |||
| Drive Mode | Dual-side | |||
| Cutting Torch Number | 1 oxy-fuel torch/ 1 plasma torch | |||
| Driving Motor | Servo motor | |||
| CNC Controller | Shanghai SJTU/Micro EDGE/ Shanghai KP/Shenzhen AHC | |||
| Available Plasma Power source | Hypertherm/Thermadyne/Kjellberg/TAYOR LGK | |||
| Nesting Software | FASTCAM | |||
| Dust extraction | Air duct | |||
| Other data | ||||
| Operation language | Multi-langue | |||
| Power voltage | 3× 380V± 10% 50HZ / according to user' s local condition | |||
| Optional | Water surface cutting table | |||
| Cutting Technical Data | ||||
| Model | CNCTG1500 | CNCTG2000 | CNCTG2000 | CNCT2500 |
| Machine dimension (mm) | 1500x3000 | 2000x4000 | 2000x6000 | 2500x8000 |
| Effective Cutting area (mm) | 1000x2000 | 1500x3000 | 1500x5000 | 2000x7000 |
| Cutting Thickness(mm) | Flame: 5-60mm Plasma: 1-25mm | |||
| Cutting Speed (mm/min) | 50-3800 | |||
| Running speed (mm/min) | 12000 | |||
| Basic components | ||||
| Cutting Mode | Plasma or Flame | |||
| Drive Motor Number | Servo motor, Single-side or Dual-side | |||
| Cutting Torch Number | 1 set | |||
| Driving Motor | Mitsubishi | |||
| NC Controller | ADT-HC6500 SJTU-SK, Micro EDGE, EDGE pro | |||
| Plasma Power | Thermadyne, Kjellberg, Hypertherm | |||
| Programming software | FASTCAM | |||
| Gearbox | Neugart | |||
| Other Data | ||||
| Working temperature | - 10° C -45° C | |||
| Humidity | < 90%, no condensation | |||
| Surroundings | Ventilation, no big shake | |||
| Power voltage | 3× 380V± 10% or up by user' s local condition | |||
| Operation language | English or Chinese | |||
| Options | ||||
| Option Item | Powder Marking, | |||
| integration dust extraction | ||||
| Heating and cooling systems | ||||
| Inkjet equipment | ||||
- Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.
- Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.
- Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so that we can achieve the best cutting quality.
- Able to cut work piece with several torches at the same time, can improve cutting efficiency
- Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn
- Reliable, safe cnc system, automatic programming, optimization nesting and piercing path, so that we can save steel effectively
- Powder marking device
- Straight line stripe cutting torch
- Straight line triple beveling torch
- Rotary triple flame curve beveling torch
- Rotary plasma curve beveling torch
- Blow and draft dust and fume collection system
- Water surface and underwater cutting table
| Cutting Technical Data | |||||||
| Model | CNCSG3000 | CNCSG3500 | CNCSG4000 | CNCSG5000 | CNCSG6000 | CNCSG7000 | CNCSG8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length | ||||||
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 | ||||||
| Basic components | |||||||
| Cutting Mode | Plasma and Oxy-Fuel/Flame | ||||||
| Drive Mode | Servo motor, Dual-drive | ||||||
| Cutting Torch Number | Customization | ||||||
| Driving Motor | Panasonic/Yaskawa | ||||||
| CNC Controller | Hypertherm EDGE Pro/Micro EDGE Pro, LKNC-3200, SJTU-SK, Burny | ||||||
| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB | ||||||
| Programming software | Fastcam, SmartNest, Hypertherm | ||||||
| Supply power voltage | 3×380V±10% 50HZ/according to user's local condition | ||||||
| Operation language | Multilanguage | ||||||
| Prod Model: | CNCSG |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Thickness: | 1-300mm |
| Cutting Speed: | 1-20m//Min |
| Position Speed: | 120m/Min |
| Laser Source: | Ipg Raycus |
| Plasma Source: | Hypertherm, Kjellberg |
