Ningbo Latitude Communication Equipment Co., Ltd. >> 42u 600X800mm Data Rack Cabinet with Front Glass Door

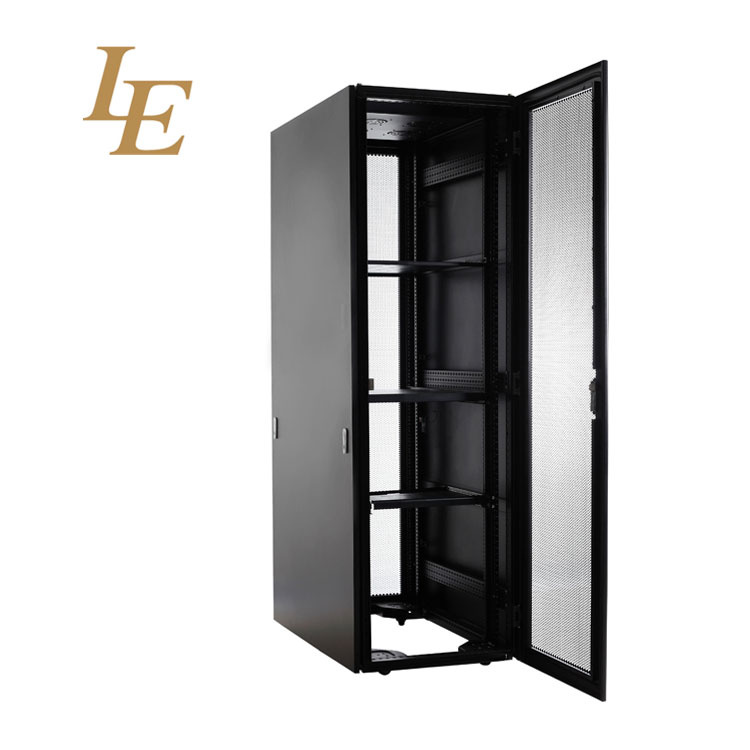

42u 600X800mm Data Rack Cabinet with Front Glass Door
| Price: | US $ 191-290/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
General Description:
1.Exquisite design with precise craftsmanship;
2.Nine-folded profiled,welded frame with high intensity;
3.High-density perforated front door(single open) with over 180 turning degree;
4.High-density perforated front door(dual open) enable equipment ventilation and reliable operation with ventilation rate above 50%;
5.Removable side panels,easy to install and maintain with moon shaped lock;
6.Connected by four-corner to ensure the strength and stability;
7.Adjustable feet and castors are available;
8.Adjustable cable entry on the top ,bottom with cable entrance;
9.Metal cable ring on the mounting profile for cable management;
10.Supplied as welded structure,also supplied as a flat packing;
11.Various optional Accessories for common using;
1.Exquisite design with precise craftsmanship;
2.Nine-folded profiled,welded frame with high intensity;
3.High-density perforated front door(single open) with over 180 turning degree;
4.High-density perforated front door(dual open) enable equipment ventilation and reliable operation with ventilation rate above 50%;
5.Removable side panels,easy to install and maintain with moon shaped lock;
6.Connected by four-corner to ensure the strength and stability;
7.Adjustable feet and castors are available;
8.Adjustable cable entry on the top ,bottom with cable entrance;
9.Metal cable ring on the mounting profile for cable management;
10.Supplied as welded structure,also supplied as a flat packing;
11.Various optional Accessories for common using;
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel Frame: Nine-folded profiled (SPCC) Thickness:mounting Profile:2.0mm,Others:1.2mm |
| Loading Capacity | Static loading: 1000kg(on the adjustable feet) |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Capacity | 18U-47U |
| Width | 600mm,800mm |
| Depth | 600mm,800mm,900mm,1000mm,1200mm |
| Color | Ral9004; Ral9005; Ral7035 |
| Prod Model: | LE-SF |
|---|---|
| Product Name: | 22u Vertical Server Rack 19 |
| Material Thickness: | Mounting Profile:2.0mm,Others:1.2mm |
| Tempered Glass: | Thickness:5mm |
| Loading Capacity: | Static Loading: 800kg(on The Adjustable Feet) |
| Degree Of Protection: | IP20 |
| Surface Finish: | Degreasing,Pickling,Phosphating,Powder Coated |
| Height: | 18u-47u |
| Depth: | 600mm,800mm,900mm,1000mm,1200mm |
| Width: | 600mm,800mm |
| Color: | Ral9004; Ral9005; Ral7035 |
| Type: | Standard Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Certification: | SGS,TUV,BV |
| Condition: | New |
| Fan Number: | 2 to 6 PCS Fans |
| Capacity: | 18u-47u |
Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.
For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.
We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.
We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
