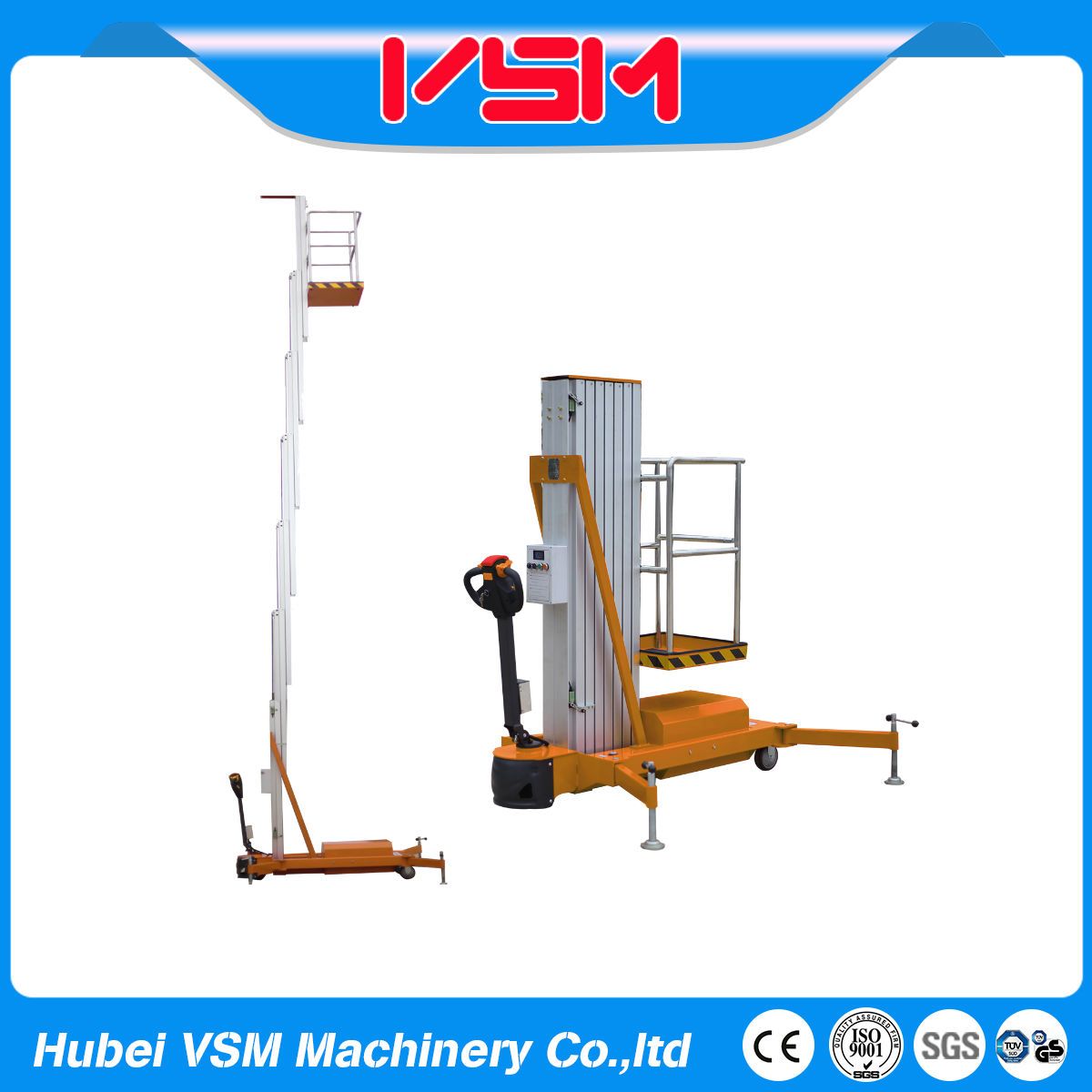

4m to 10m Single Mast Aerial Work Platform or Lift Table with Ce Certificate
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
1.Stable ascending and descending, masts made of aluminum. Chains tightly connected.
2.safe operation. Four supporting rods prevent operators form leaning.
3.East to opearte. Only one person can push forward. When it is folded, it can enter general standard size foor or corridor,
as well as electrical lift of buildings.
4.Operation system on the lift platform and emergency stop button on the base plate to ensure safety.
For example: indoor and outdoor cleaning (ceiling, curtain wall, glass windows, eaves, rain Peng, funnel, etc.), Installation and maintenance of street lights and traffic signs etc.This aerial work platform is characterized by small and flexible, convenient and quick.You can use a lift platform instead of scaffolding to achieve the height you need to solve your problems. At the same time, you can also save your costs and your time.
This aerial work platform has the following advantages:
B)Safety arrangement
1.Electric system:
a) The main circuit should have a short circuit, motor overheating protection;
b) ) The main circuit should be equipped with the main (start), vice dual contactor to prevent contactor failure;
c) In addition to the rise in place limit switch, but also equipped with emergency limit switch;
d) Platform up and down are equipped with emergency stop button.
e)
2.Hydraulic system protection device:
a)With a power failure self-locking function.
b)Equipped with emergency descent device
C)Equipped with hydraulic cylinder crack prevention device
3.The platform is equipped with with 1100mm high barrier to ensure your safety.
4.With four screw support legs, in use can effectively ensure the stability of the operation
Product display
Details
PRODUCT INFORMATION:
PACKING: According to customers' requirement.
Other hot sale products:
OUR WORKSHOP:
Welcome your factory tour at any time!
Contact us:
Sunny Huang(international sales)
Mobile: 86-153-4226-1630
2.safe operation. Four supporting rods prevent operators form leaning.
3.East to opearte. Only one person can push forward. When it is folded, it can enter general standard size foor or corridor,
as well as electrical lift of buildings.
4.Operation system on the lift platform and emergency stop button on the base plate to ensure safety.
- Product feature
For example: indoor and outdoor cleaning (ceiling, curtain wall, glass windows, eaves, rain Peng, funnel, etc.), Installation and maintenance of street lights and traffic signs etc.This aerial work platform is characterized by small and flexible, convenient and quick.You can use a lift platform instead of scaffolding to achieve the height you need to solve your problems. At the same time, you can also save your costs and your time.
This aerial work platform has the following advantages:
- GTWY8-125 is with high strength aluminum alloy
- Mast lifter dedicated chain, 10 times the rated load under the safe work.
- Built-in slider design, the use of ultra-high polymer polyethylene production to make it with better stability.
- Suction-type adjustment support legs provide solid and stable support.
- It is equipped with standard transport forklift holes.
- It is also equipped with lifting rings.
- You can equipped with electric power travel device (optional)
- AC and DC dual-use hydraulic station (optional),
B)Safety arrangement
1.Electric system:
a) The main circuit should have a short circuit, motor overheating protection;
b) ) The main circuit should be equipped with the main (start), vice dual contactor to prevent contactor failure;
c) In addition to the rise in place limit switch, but also equipped with emergency limit switch;
d) Platform up and down are equipped with emergency stop button.
e)
2.Hydraulic system protection device:
a)With a power failure self-locking function.
b)Equipped with emergency descent device
C)Equipped with hydraulic cylinder crack prevention device
3.The platform is equipped with with 1100mm high barrier to ensure your safety.
4.With four screw support legs, in use can effectively ensure the stability of the operation

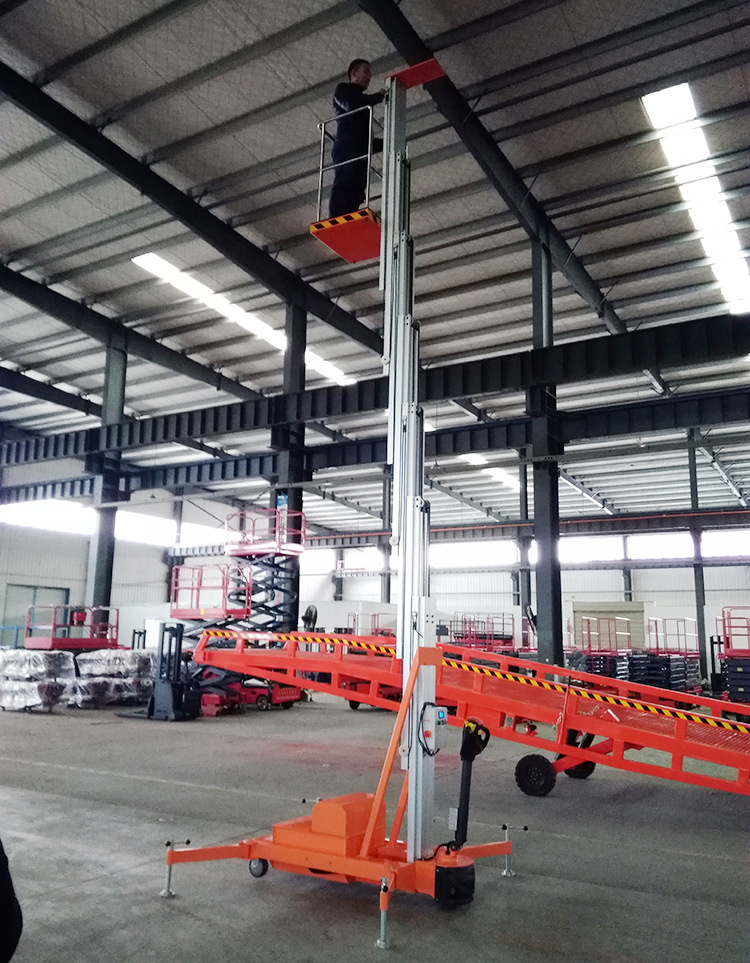

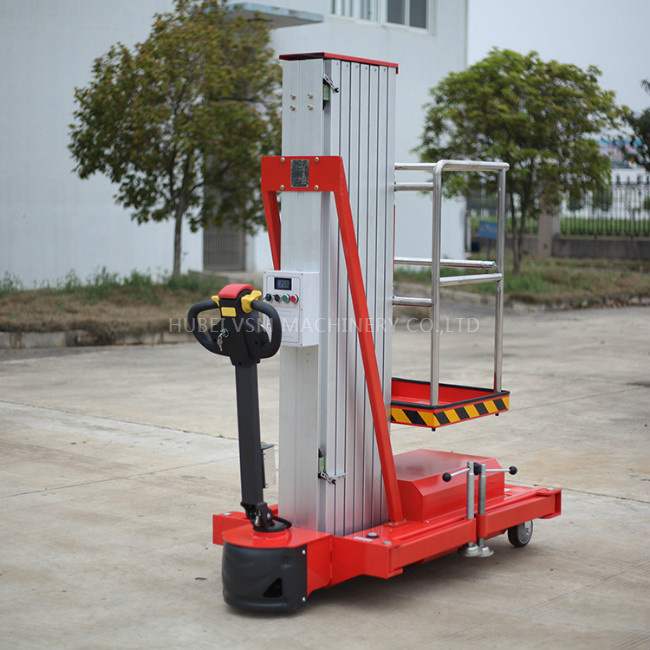

Product display

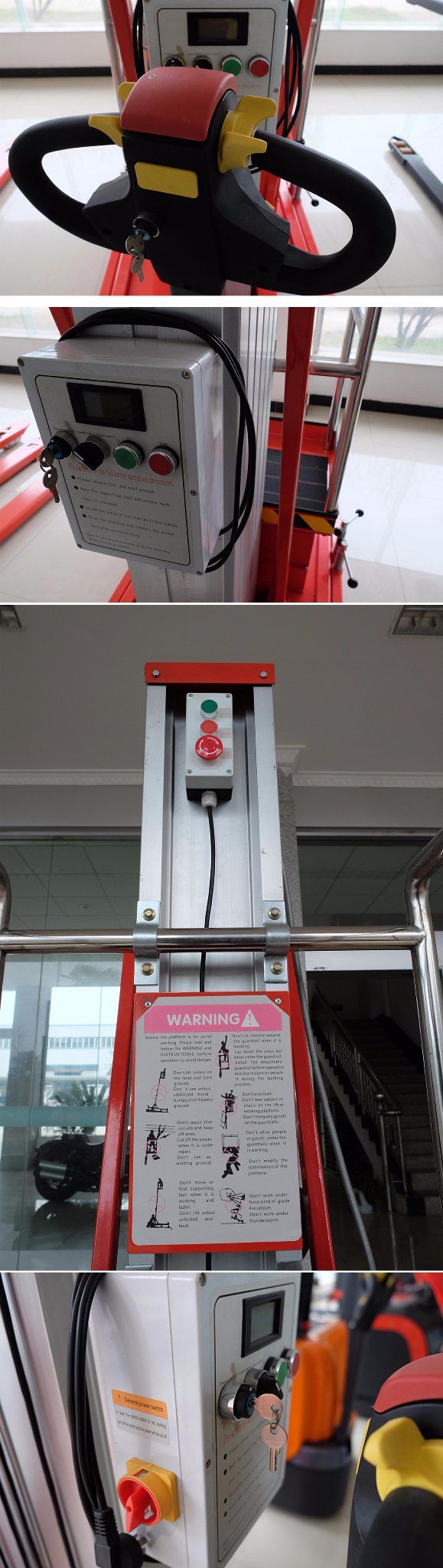

Details
PRODUCT INFORMATION:
| Model | GTWY6-200 | GTWY8-200 | GTWY10-200 | GTWY12-200 | |
| Max.Platform height /mm | 6000 | 8000 | 10000 | 12000 | |
| Working height /mm | 7800 | 9800 | 11800 | 13800 | |
| Platform working dimension /mm | 1115×540 | 1115×540 | 1315×540 | 1315×540 | |
| Support leg expansion size /mm | 2180×1990 | 2180×1990 | 2180×2190 | 2180×2190 | |
| Whole length width height /mm | 1380×950×1980 | 1380×950×1980 | 1580×950×1980 | 1580×950×2250 | |
| Whole weight/kg | 520 | 560 | 610 | 670 | |
| Whole weight/kg | 570 | 610 | 670 | 720 | |
| Platform rated load /kg | 200 | 200 | 200 | 200 | |
| Distance from Earth/mm | 75 | 75 | 75 | 75 | |
| Motor /V/kw(AC) | 220/1.1 | 220/1.1 | 220/1.1 | 220/1.1 | |
| Motor /V/kw(DC) | 24/0.8 | 24/0.8 | 24/0.8 | 24/0.8 | |
| AhBattery /V/Ah | 2×12/85 | 2×12/85 | 2×12/85 | 2×12/85 | |
| Charger /V/A | 24/0.8 | 24/0.8 | 24/0.8 | 24/0.8 | |
| Voltage /V(AC) | 220 | 220 | 220 | 220 | |
| Voltage /V(DC) | 24 | 24 | 24 | 24 |

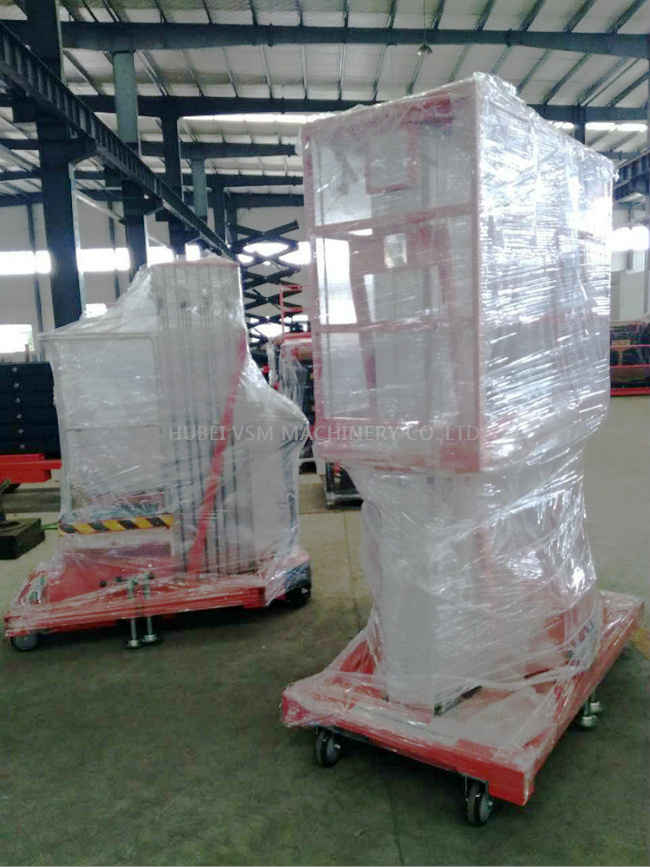

PACKING: According to customers' requirement.

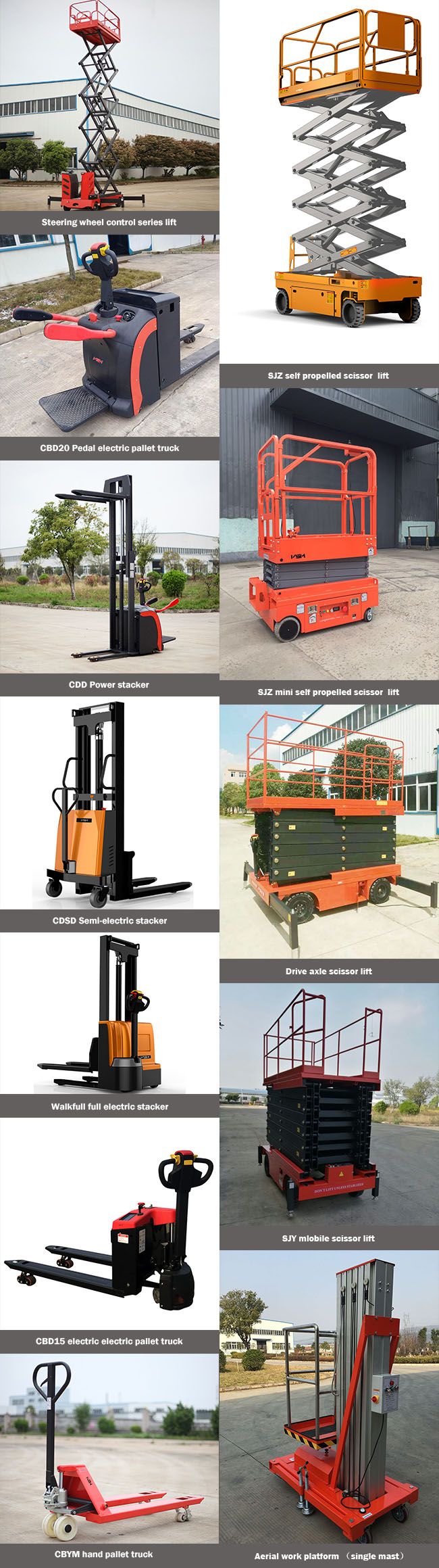

Other hot sale products:

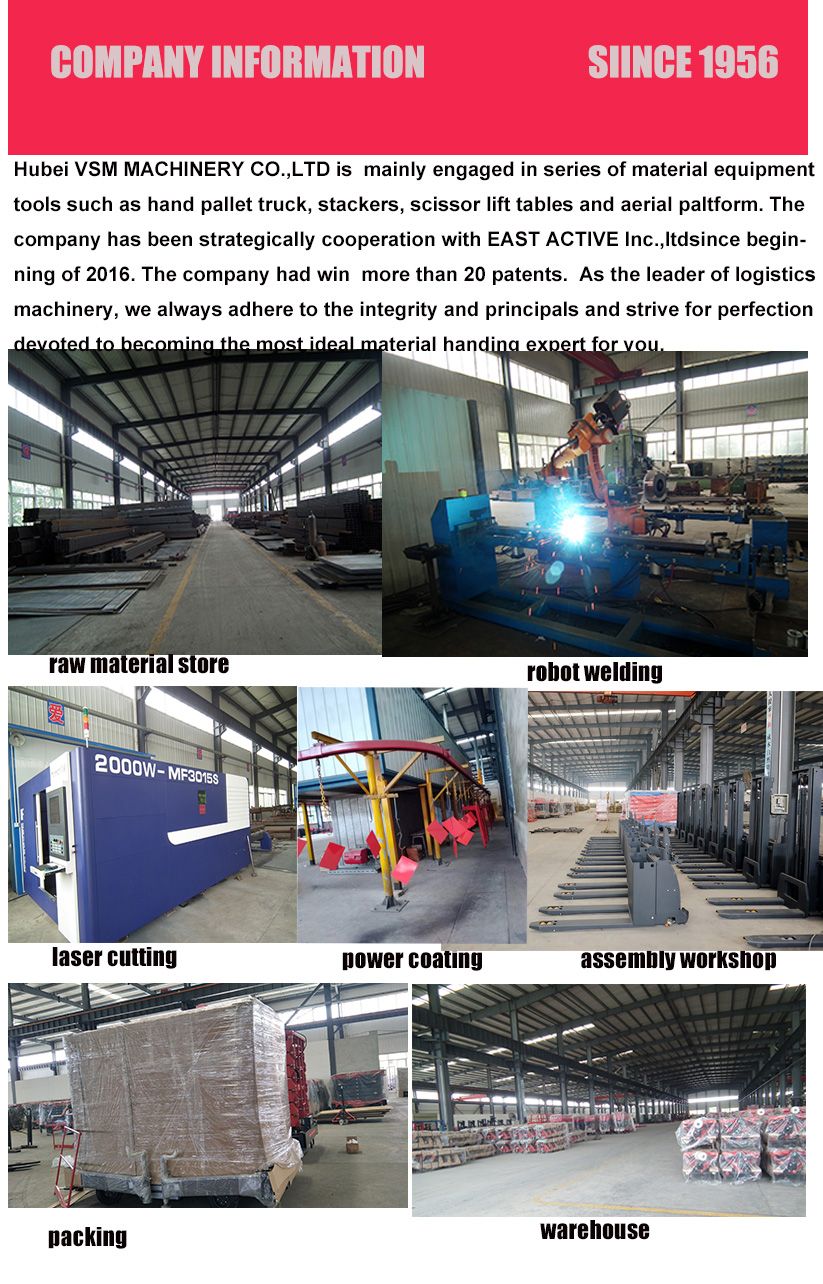

OUR WORKSHOP:
Welcome your factory tour at any time!
Contact us:
Sunny Huang(international sales)
Mobile: 86-153-4226-1630
| Prod Model: | GTWY6-125 |
|---|---|
| Max Platform Height: | 6000mm |
| Working Height: | 7700mm |
| Platform Working Deminsion: | 600mm*500mm |
| Support Leg Expansion Size: | 1780*1780mm |
| Whole Size: | 1280*800*1950mm |
| Whole Weight: | 280kg |
| Platform Rated Load: | 125 |
| Battery: | 2*12V/85ah |
| Charger: | 24V/10A |
| Voltage: | 220V |
| Application: | Building Crane |
| Carrying Capacity: | Light Level |
| Driven Type: | AC |
| Running Mode: | Moving |
