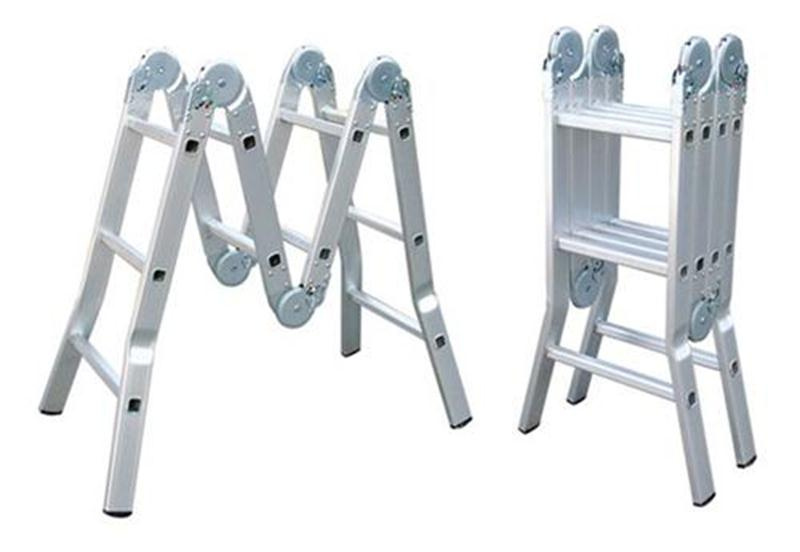

4X3 Aluminum Multi--Purpose Ladder for External Expansion

4x3 aluminum multi--purpose ladder for external expansion
Model: JK-103B
Extension Length: 360 cm
Scaffold Height: 100 cm
Number of rungs: 4foldsx3steps,
Total step: 12STEP;
Space between two rungs: 28cm
N. W: 10.1KG
G. W: 10.5KG
We also can do produce same models like JK-102(8 steps), JK-104(16 steps).

ITEM NO	DESCRIPTION	Max Load	N.W	G.W	20GP	40GP	40HQ	MOQ	packing:
JK-102B	Extension Length: 260 cm	150KG	8.8KG	9.5KG	320PCS	680PCS	765PCS	1*20GP	shrink wrap with color cover (Packing Size:                         72*28*55CM)
	A step ladder height: 125 cm
	Scaffold Height: 70.5 cm
	Number of rungs: 4foldsx2steps,
	total  steps:8 STEP; Space between two rungs: 28 cm
	Aluminum mode:6063,Thickness of Aluminum:1.2mm
JK-103B	Extension Length: 360 m	150Kg	10.1KGS	10.5KGS	235PCS	475PCS	535PCS	1*20GP	shrink wrap with color cover (Packing Size:                         100*28*55CM)
	A step ladder height: 176 cm
	Scaffold Height: 100 cm
	Number of rungs: 4foldsx3steps,
	total  steps:12 STEP; Space between two rungs: 28 cm
	Aluminum mode:6063,Thickness of Aluminum:1.2mm
JK-104B	Extension Length: 470 cm	150Kg	11.4KGS	12.0KGS	190PCS	380PCS	425PCS	1*20GP	shrink wrap with color cover (Packing Size:                         127*28*55CM)
	A step ladder height: 235 cm
	Scaffold Height: 126 cm
	Number of rungs: 4foldsx4steps,
	total  steps:16STEP; Space between two rungs: 28 cm
	Aluminum mode:6063,Thickness of Aluminum:1.2mm

Multi-purpose aluminum ladder:
1).Compact dimensions for easy transportation and storage.
2).Easily converted  to working platform,stepladder, single ladder.
3).Loading capability:150KGs.
4).Removable platform.
5).Stabilisers for extra stability.
6).Simple 'click lock' hinge system.
7).Suitable for wide variety of uses.
8).EN131, GS.
Specification:
1.Lightweight 6063 Aluminum Alloy Construction Specially Treated Anodised Aluminum.
2.1.2mm Extra Thick All-Rustproof Aluminum Alloy Construction.
3.One Ladder That Performs at Least 7 Different Functions.
4.MultiPosition Smooth Operating Hinges Allows Different Configurations.
5.Safety Locks at the Bottom with Rubber Protective Pads.
6.Can be Used as Single Ladder, Double Sided Ladder, Trestle, Work Platform, Stair.
Concept:
1. Aluminum ladder is developed under the concept of People safety, comfortable, and High Quality.
2. Based on abundant and historical designs which are handed down continuously throughout the world.
3. We strive to produce new premium quality products to suit all needs.
4. That is why we have named this the aluminum ladder series.
5. One characteristic of this product is unlike wood ladders heavy, this product is designed of easy
     application and light weight
6. We strive to provide and satisfy our customers with innovative ladders.
Features:
1) Made with high strength aluminum alloy materials.
2) Easy to operate, carry and store.
3) Advanced riveting process, with safe, strong anti-slipping footings.
4) It has fifteening functions, and realise one ladder has multi-functions.
5) Especially suitable for hotels, decorations, office buildings.
6) Can be used as an extension ladder, double sided step ladder, stair step ladder, stair platform, stand        off ladder, painting or gardening platform, free standing ladder and work bench.
7) Multi Purpose Ladder features stabilisers with extra large red rubber feet giving 100% grip to floor                surface, and ensuring maximum stability and safety in use.
8) Non slip "ridged" rungs ensuring maximum safety.
Quality control:
(1) Each ladder must pass professional inspection before leaving factory.
(2) Each batch goods, We choose samples to pass the following test: Open ladder, then put them as
      platform and put 150KGS goods in the middle. After 30 hours, Check extend and fold function.
High weight,high strength,compact and competitive price;
We are professional ladder factory and hot sale all over the world.
