6S Mineral Ore Shaking Table for Manganese/ Iron /Gold
| Price: | US $ 1300-1600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
6s Mineral Ore Shaking Table for Manganese/ Iron /Gold
Product Description:

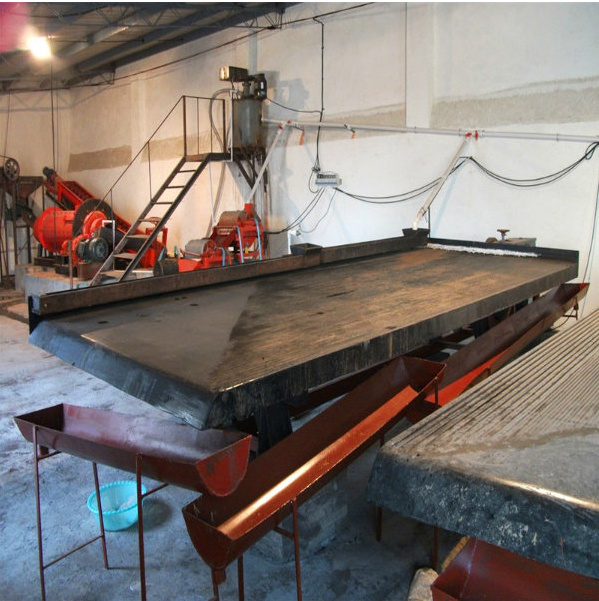

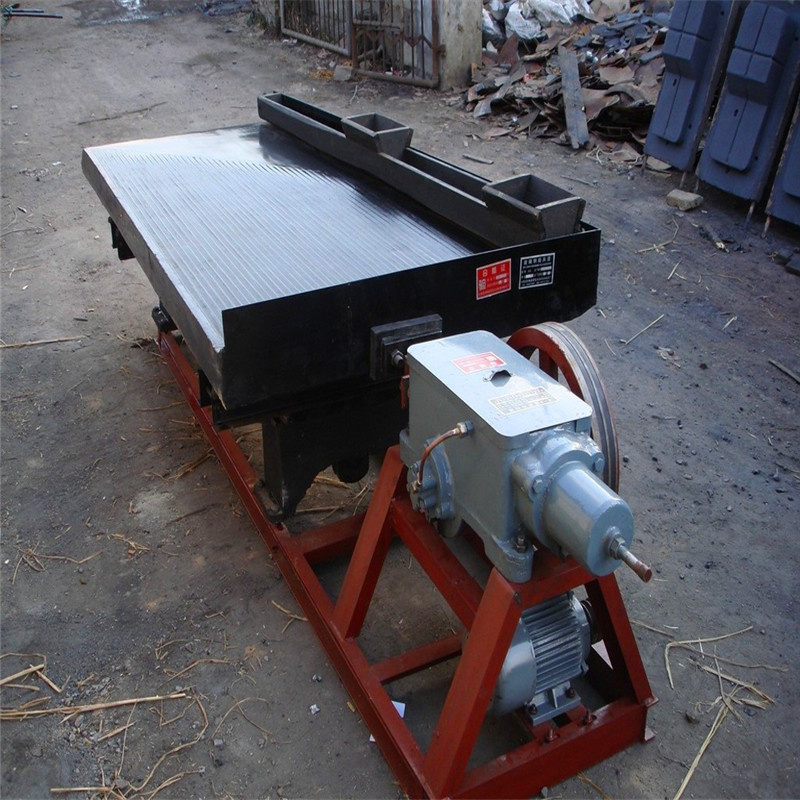

6-S Gold Shaking table, sometimes also known as wet tables, consist of a vibrating riffled deck mounted on some type of support. A motor, usually mounted separately off to the side, drives a small arm that shakes the table along its length. The riffles are usually not more than half an inch high and cover only about half the table surface. Varied riffle designs are available for specific types of applications. Shaking tables are very efficient in recovering heavy minerals from minus 100 microns (150 mesh) down to 5 microns in size. Heavy minerals of a size greater than 150 mesh are better run through a jig.
Application :
Gold shaking table is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Working principle :

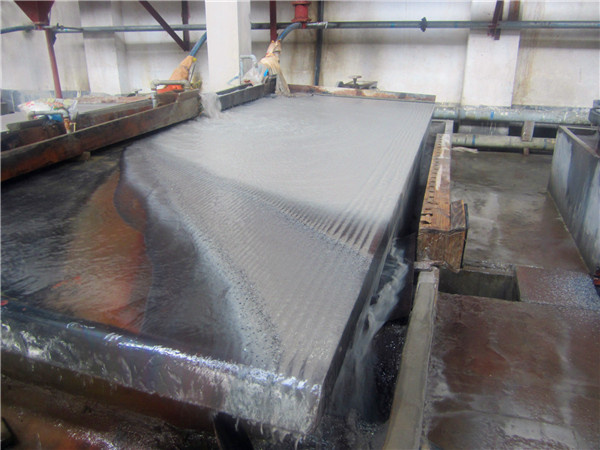

6-S Gold Shaking table beneficiation process is conducted in a copy of the tilted table, ore grain group from the Angle of mesa feeder trough into, by lateral flushing water supply for the sink at the same time, under the influence of vibration wave, according to the proportion and granularity theory, and vertical movement and lateral movement. YanTai proportion and granularity of different ore grain along the movement direction of the respective trapezoidal shed, respectively from the concentrate and tailings discharge side of different position, the final is divided into concentrate, middlings and tailings.
Feathures :
-Classification, Concentration, Recovery of Metals, Minerals from Placer or Alluvial Fields.
-Works as a Wash Plant, Gravity Separation Plant for small to medium size Dredging Operation.
-Classification, Pre-Concentration & Recovery of Primary (Hard Rock) deposits of Gold, Base Metals, Ferrous Metals, Diamonds and other Minerals.
Main technical parameter:
| Model | Ls<6-s> |
| Table structure | Glass steel material, composite structure |
| Table specification | 1500-1850X4500mm |
| Sorting area | 7.5 m2 |
| Table direction | Left and right |
| Horizontal gradient | 0.5 degree |
| Stroke | 10-30mm |
| Stroke frequency | 240-360c/min |
| Feed size: Coarse sand 2-0.5mm; fine sand 0.5-0.074mm; slurry 0.074mm | |
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.
Guarantee and After-sales Service:
1-One years guarantee for main machine, excluding wearing parts
2-Experienced technicians and guidance are available
3-24 hours technical support by e-mail, by phone.
4-Use friendly English user manual
5-Engineers could be dispatched to the quarry site, if requested by customer.
| Prod Model: | LS<6-S> |
|---|---|
| Name: | Shaking Table |
| Table Structure: | Glass Steel Material, Composite Structure |
| Table Specification: | 1500-1850X4500mm |
| Sorting Area: | 7.5 M2 |
| Table Direction: | Left and Right |
| Horizontal Gradient: | 0.5 Degree |
| Stroke: | 10-30mm |
| Stroke Frequency: | 240-360c/Min |
| Type: | Gravity Separator |
| Voltage: | 380V |
| Weight: | <1T |
| Certification: | CE |
| Warranty: | 1 Year |
| Customized: | Non-Customized |
| Condition: | New |
| Material: | Fiber Glass Steel |
| Color: | as Requirement |
