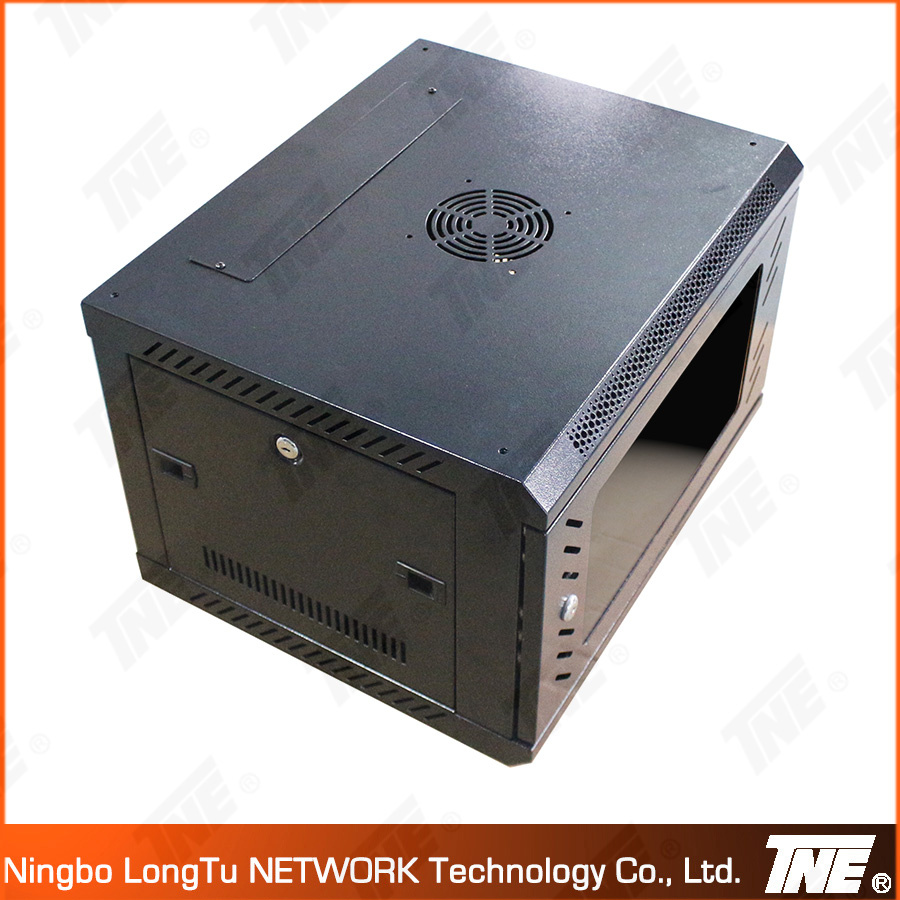

6u 550mm Width Wall Mount Network Cabinet with Flat Pack
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
6u 550mm Width Wall Mount Network Cabinet with Flat Pack
==========Description=============

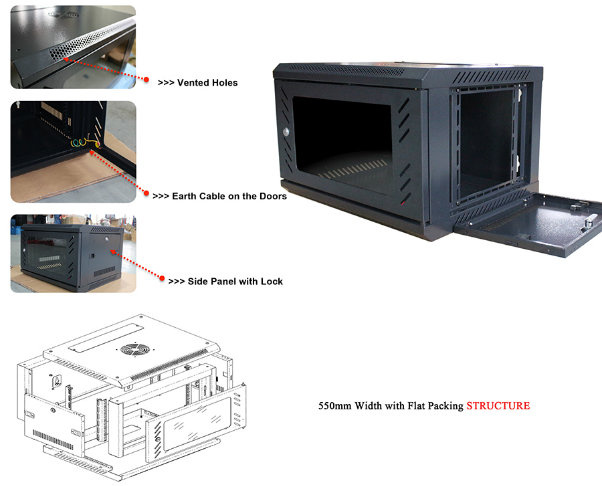

> One Section/ Single Section Wall Mount Cabinet
> >>>>Flat Pack Type
> Standing or wall mounting installation
> Adjustable feet and heavy duty castors are optional
> Removable side panels, side locks optional
> Cable entry on both of top cover and bottom panel
> 120mm fan available (220V or 110V)
> Turning angle of front door is over 180 degrees.
=========Standard==========
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting
Degree of Protection:
IP20.
Body Color:
RAL7035, RAL7044, RAL9004 etc.
===========Size Form============
===========Optional Accessory============
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
And so on...
=================FAQ============
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
==========Description=============
> One Section/ Single Section Wall Mount Cabinet
> >>>>Flat Pack Type
> Standing or wall mounting installation
> Adjustable feet and heavy duty castors are optional
> Removable side panels, side locks optional
> Cable entry on both of top cover and bottom panel
> 120mm fan available (220V or 110V)
> Turning angle of front door is over 180 degrees.
=========Standard==========
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting
Degree of Protection:
IP20.
Body Color:
RAL7035, RAL7044, RAL9004 etc.
===========Size Form============
Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-008 | 4U | 550mm | 450mm/600mm | 279mm |
TN-008 | 6U | 550mm | 450mm/600mm | 368mm |
TN-008 | 9U | 550mm | 450mm/600mm | 501mm |
TN-008 | 12U | 550mm | 450mm/600mm | 635mm |
TN-008 | 15U | 550mm | 450mm/600mm | 769mm |
TN-008 | 18U | 550mm | 450mm/600mm | 901mm |
TN-008 | 22U | 550mm | 450mm/600mm | 1082mm |
TN-008 | 27U | 550mm | 450mm/600mm | 1304mm |
===========Optional Accessory============
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
And so on...
=================FAQ============
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
| Prod Model: | TN-008 |
|---|---|
| Color: | Ral7035, Ral9004, etc |
| Logo: | Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: | Assembled or Dis-Assembled |
| Shipping: | Sea, Air, Train, Truck |
| Material: | SPCC Cold Rolled Steel |
| Certificate: | Ce. RoHS. SGS |
| Usage: | Network Integration System |
| Installation: | Wall-Mounted Cabinet |
| Certification: | GS |
| Condition: | Used |
| Type: | Wall Mount |
| Fan Number: | Optional |
| Capacity: | 4u~18u |
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

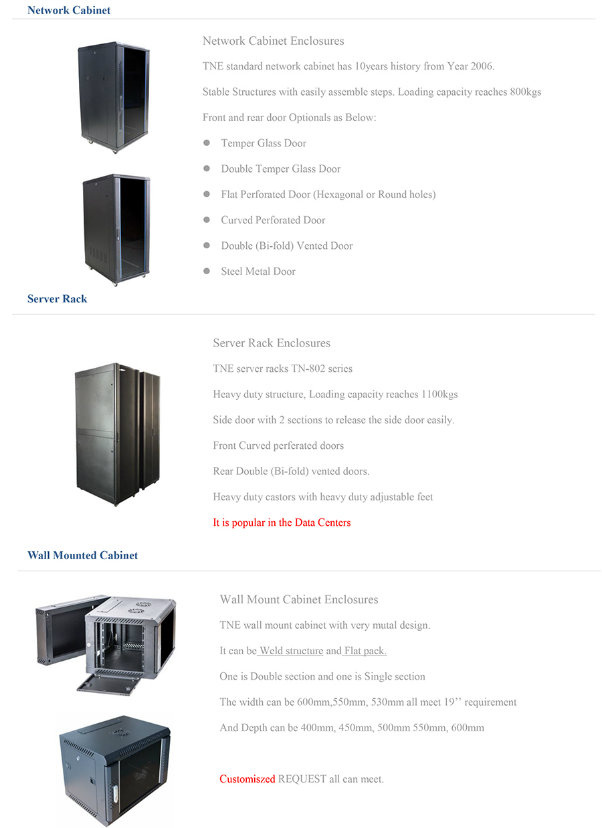

TNE mainly Products as below:
