Anhui Aikefa CNC Technology Co., Ltd. >> 8 Heads CNC Rotary Wood Engraver Machine

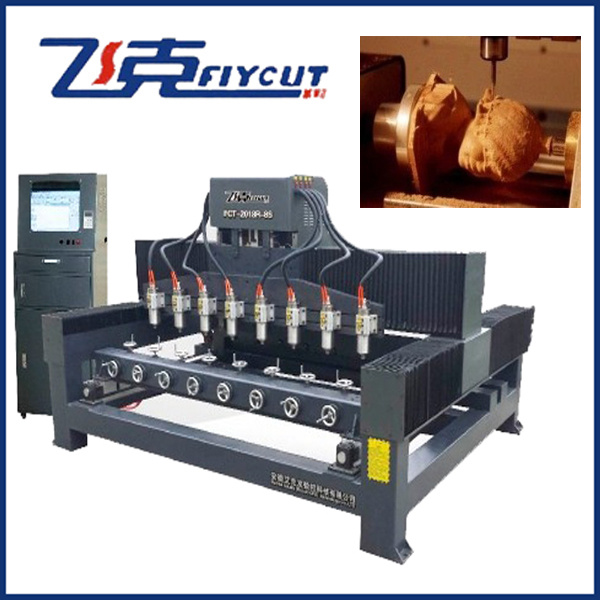

8 Heads CNC Rotary Wood Engraver Machine
| Price: | US $ 12600/Set |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
Machine's Feature:
The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
The special instruments to eliminate welding stress, high-precision machining plan ensure the precision and no deformation.
The major machine body makes the stability and no shaking in high speed.
XYZ all apply imported screw, high precision gear frame and linear square guide, ensure te high accuracy.
The professional mechanical design, scientific sturcture and generous appearance.
XYZ axis use anti-dust system, prevent dust during woking, make sure the long lifespan of spare parts.
High quality driver motors, spindle motors, cables, inverters, etc.
High accuracy, high torsion and professional gear box without any gaps, ensure high engraving accuracy.
Professional CNC control system, the system can compatible with many kinds CAM software, such as Type3/Artcam/Pro-E/Mastercam.
Appliction:
Rotary engraving: Mking relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making etc.
Special configuration:
Special configurations: Customized model machine, imported spindles, servo motors, oil lubrication system, 6--12 spindle heads, etc.
Our service:
1. The machine comes with 1 year warranty;
When it exceed warranty period, if the machine's part need to be changed, we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine, welcome to customize or distribute our machines.
if you have any question,pls contact with me:
alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory
The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
The special instruments to eliminate welding stress, high-precision machining plan ensure the precision and no deformation.
The major machine body makes the stability and no shaking in high speed.
XYZ all apply imported screw, high precision gear frame and linear square guide, ensure te high accuracy.
The professional mechanical design, scientific sturcture and generous appearance.
XYZ axis use anti-dust system, prevent dust during woking, make sure the long lifespan of spare parts.
High quality driver motors, spindle motors, cables, inverters, etc.
High accuracy, high torsion and professional gear box without any gaps, ensure high engraving accuracy.
Professional CNC control system, the system can compatible with many kinds CAM software, such as Type3/Artcam/Pro-E/Mastercam.
Appliction:
Rotary engraving: Mking relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making etc.
Special configuration:
Special configurations: Customized model machine, imported spindles, servo motors, oil lubrication system, 6--12 spindle heads, etc.
Our service:
1. The machine comes with 1 year warranty;
When it exceed warranty period, if the machine's part need to be changed, we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine, welcome to customize or distribute our machines.
if you have any question,pls contact with me:
alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory
| Model | FCT-2018R-8S | ||
| Rotary Diameter | Φ250 | ||
| Rotary length | 1500mm | ||
| Flat working size | 2300*1500*200mm | ||
| Spindle power | Water cooling 2200W×8 | ||
| Spindle rotation | 6000--24000rpm | ||
| Motor driver | Stepper motor driver (Chinese servo motor and Japan servo motor is optional) | ||
| Tool diameter | Φ3.175mm, Φ 6mm, Φ12.7 mm | ||
| Machine structure | Industry square tube structure, gantry moving | ||
| Transmission | XYZ TBI ball screw, Y double ball screw, double driver. | ||
| XYZ rails | PMI square rails | ||
| Dust-proof system | XYZ high quality dust cover | ||
| Mechanical accuracy | <0.03/300mm | ||
| Engraveing speed | 10000mm/min | ||
| Data transmission | PC-connection directly | ||
| Support format | G code or HPGL | ||
| Working voltage | AC220V/50Hz or 380V/50Hz | ||
Net weight | 2500kg | ||
| Prod Model: | FCT-2018R-8S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | 1 Year |
| Spindle Layout: | Vertical |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
| Spindle Number: | 8 |
Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.
Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.
Service concept: Innovation, technology, services
Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.
Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.
Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.
Service concept: Innovation, technology, services
Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.
Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.
Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
