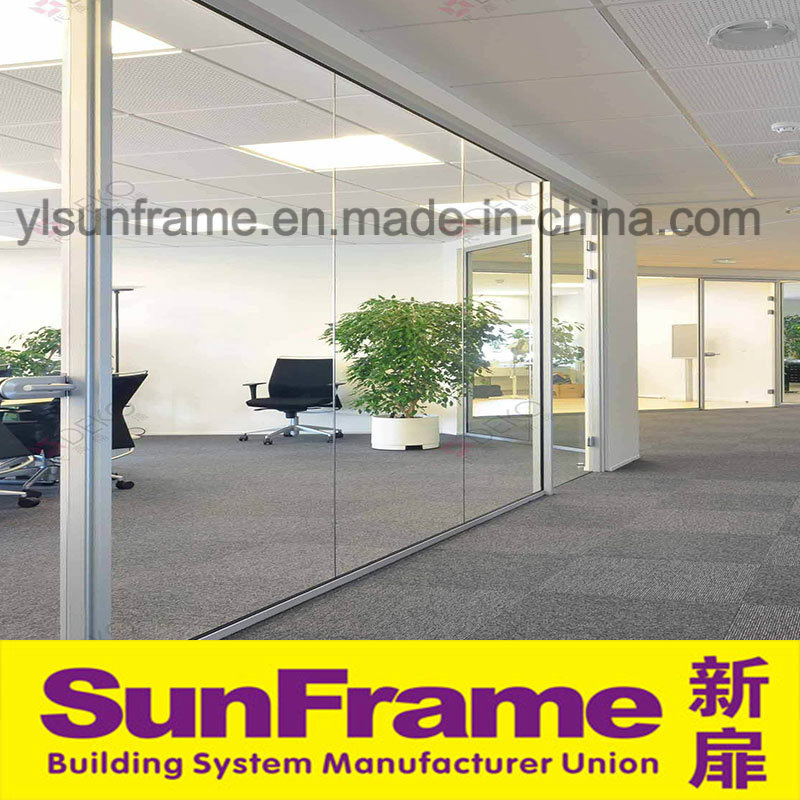

Aluminium Partition/ Office Furniture
| Price: | US $ 45-60/Square Meter |
|---|---|
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T |
Product Description
1, General description: Non-loadbearing floor to ceiling system based on an aluminum framework with sound reducing panels, erected in a combination of single glazed panels.
2, Thickness: 28mm overall
3, Tolerance: +/-5mm.
4, Application height: 2000mm-3000mm
5, Weight: Approximately 30.00kg/m³ For 12mm glass
6, Finishes: Stain anodized or polyester power coating to all exposed aluminum components available in a wide range of colors as standard
7, Fire endurance: 0. E30. EI60
8, Acoustic performance: 35dB, 43dB
9, Framework: A pre-finished aluminum head and floor channel.
10, Glazed module: 12mm toughened safety glass, held in by clear PVC gasket to head and floor channel, or combination with 12mm MDF, MgO board, steel plate
11, Panel joint: Dry clear PVC joint
12, Manifestation: A wide ranges of film and screen printing available as optional extra.
13, Module: 300mm-1500mm maximum.
14, Door unites: A combination of style is available. Standard or full height frames in aluminum or timber fitted glass or timber veneered doors, together with frameless standard height glass doors with over panel or full height glass doors
15, Door furniture: Wide range of fittings available
1, General description: Non-loadbearing floor to ceiling system based on an aluminum framework with sound reducing panels, erected in a combination of single glazed panels.
2, Thickness: 28mm overall
3, Tolerance: +/-5mm.
4, Application height: 2000mm-3000mm
5, Weight: Approximately 30.00kg/m³ For 12mm glass
6, Finishes: Stain anodized or polyester power coating to all exposed aluminum components available in a wide range of colors as standard
7, Fire endurance: 0. E30. EI60
8, Acoustic performance: 35dB, 43dB
9, Framework: A pre-finished aluminum head and floor channel.
10, Glazed module: 12mm toughened safety glass, held in by clear PVC gasket to head and floor channel, or combination with 12mm MDF, MgO board, steel plate
11, Panel joint: Dry clear PVC joint
12, Manifestation: A wide ranges of film and screen printing available as optional extra.
13, Module: 300mm-1500mm maximum.
14, Door unites: A combination of style is available. Standard or full height frames in aluminum or timber fitted glass or timber veneered doors, together with frameless standard height glass doors with over panel or full height glass doors
15, Door furniture: Wide range of fittings available
| TYPE | NG-28 | NG-90 | NG-100 | NG-108 |
| Panel suspension | Non-loadbearing floor to ceiling system based on an aluminum framework with sound reducing panels, erected in a combination of single OR double glazed panels. | |||
| Track system | head and floor channel | head and floor channel | head and floor channel | head and floor channel |
| Thickness | 28MM | 90MM | 100MM | 108MM |
| Application height | 2.8M | 3.6M | 3.8M | 3.8M |
| Max height | 3.0M | 3.8M | 4.0M | 4.0M |
| Panel width | ≤1200MM | ≤1400MM | ≤1500MM | ≤1500MM |
| Framework | A pre-finished 1.4-2.0mm thickness aluminum head and floor channel. | |||
| Face material | 12MM single toughened glass | 6mm+78+6mm double toughened glass. Shutter as option | 6mm+78+6mm double toughened glass. Shutter as option | 6mm+78+6mm double toughened glass. Shutter as option |
| Fire safety | 0.E30.EI60 | 0.E30.EI60 | 0.E30.EI60 | 0.E30.EI60 |
| Tolerance | ±5 | ±5 | ±5 | ±5 |
| Finishing | Stain anodized or polyester power coating to all exposed aluminum components available in a wide range of colors as standard | |||
| Inner framework | n/a | 1.0-1.2mm thickness galvanized steel keel | ||
| Locking | Optional lock | |||
| Sound insulation | 35dB\43dB | 44dB\52dB | 44dB\52dB | 44dB\52dB |
| Weight | Approximately 30.00kg/m³ | Approximately 34.00kg/m³ | Approximately 36.00kg/m³ | Approximately 38.00kg/m³ |
| Condition: | a |
|---|---|
| Material: | Glass |
