Aot800 Hospital Equipment Suppliers Electric Surgical Ot Operating Table
| Price: | US $ 20000-25000/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

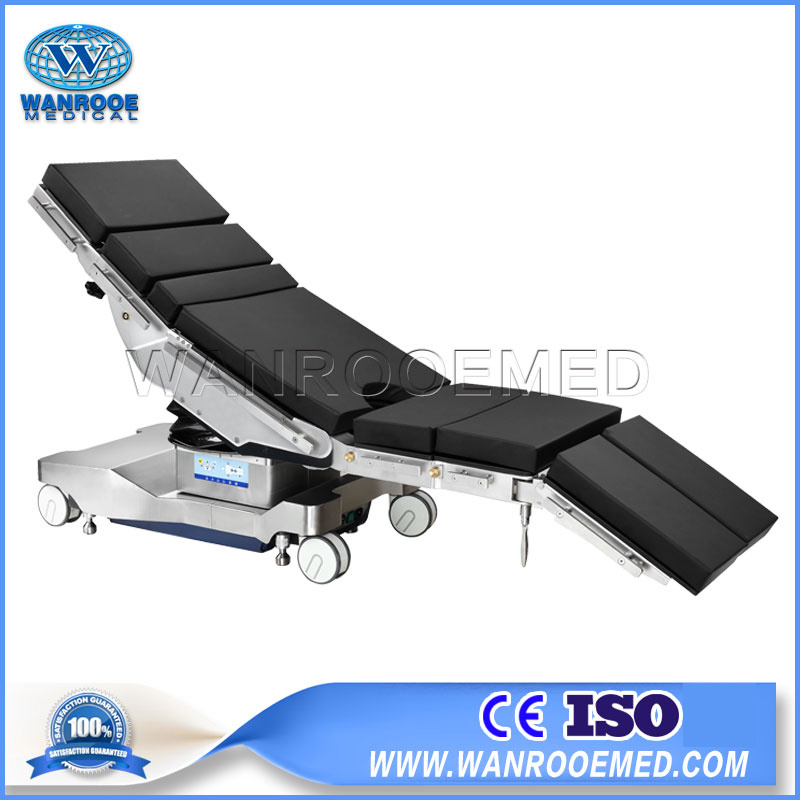

AOT800 Hospital Equipment Suppliers Electric Surgical Ot Operating Table
Engineered for increasingly complex surgical scenes, AOT800 comes with extreme loads in any position. The modular structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. A longitudinal shift of up to 310mm makes the AOT800 even more versatile.
1. Longitudinal slide up to 310mm for free access to C-arm without repositioning the patient.
2. Extreme weight load capacity of 350kg with highest safety and stability.
3. Modular design tabletop tailored for various surgical discipline needs.
4. The easy click new mounting point enables the table adapted to wide variety of surgery and patients' height
5. Memory pad with antistatic, waterproof design
6. Standard override panel control makes the control safer
7. Maximum and minimum heights of the AOT800, for comfortable working, both seated and standing.
Features
*Modular Design
The modular structure of the table top is tailored for various surgical discipline needs, which also can low down the cost of the hospital.
*Easy Click Connection Design
The easy click design offers a convenient, safe, intuitive modular mounting solution. Different surgery have different requirement of table. The easy click connection makes the table easy to adapt to the surgeries.
*Double Control System
The table is controlled by using a corded hand remote, in the event of emergency, it can also be operated using the override control panel.
All of the essential operating table functions can be controlled by the hand remote and the override panel (e.g. Flex, Reflex, 0-position or foot locking). The elevation of the kidney bridge is controlled by manual handle.
*Extreme High Extreme Low Position
Maximum and minimum heights of AOT800, not only suitable for kinds of an surgery also for doctors' comfortable working, both seating and standing.

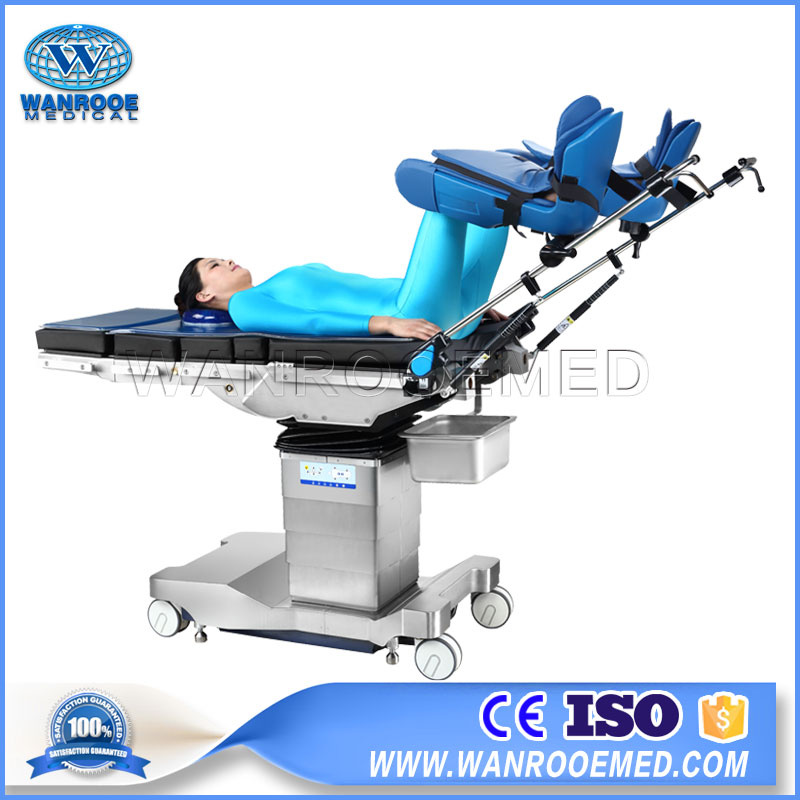

*Flexible Patient Position
AOT800 is a multi-functional operating table that meets various requirements, such as chest, kidney, cholecyst surgery, endoscopic surgery, gynecologic surgery, ENT surgery, etc.
Parameter:
| Model | Length | Width | Tabletop lowest height | Elevation range |
| AOT800 | ≥2100mm | ≥550mm | ≤550mm | ≥500mm |
PS 2: Lowest height without mattress and X-ray board
| Movements | Model AOT800 | |
| Tabletop tredelenburg | Reverse Trendelenburg | ≥35° |
| Trendelenburg | ≥35° | |
| Lateral Tilt (left and right) | ≥25° | |
| Head plate | UP | ≥40° |
| Down | ≥90° | |
| Flexible | ≥40° | |
| Back plate | Up | ≥80° |
| Down | ≥45° | |
| Leg plate | Electric Up | ≥80° |
| Electric Down | ≥90° | |
| Manual Down | ≥90° | |
| Manual Outward | ≥90° | |
| Kidney Bridge Elevation | ≥120mm | |
| Horizontal Sliding | ≥310mm | |
| Flex | ≥225° | |
| Reflex | ≤100° | |
| Standard: | Hand remote, Control panel User-defined memory location function Extension modules Kidney bridge Electric split leg (independent controlled) |
| Optional: | Electric leg plate (one piece) Wireless LCD hand remote |
| Prod Model: | AOT800 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Full Length: | 2100mm |
| Width: | 510mm |
| Height (Lowest): | 550mm |
| Height (Highest): | 810mm |
| Kidney Bridge Elevation: | 110mm |
| Battery Power: | Optional |
| OEM: | Available |
| Location: | 1.5 Hours From Shanghai |
| Folded: | Unfolded |
| Using Ambient: | Hospital |
| Certification: | CE |
| Material: | Stainless Steel |
| Type Of Hospital Bed: | Operating Table |
