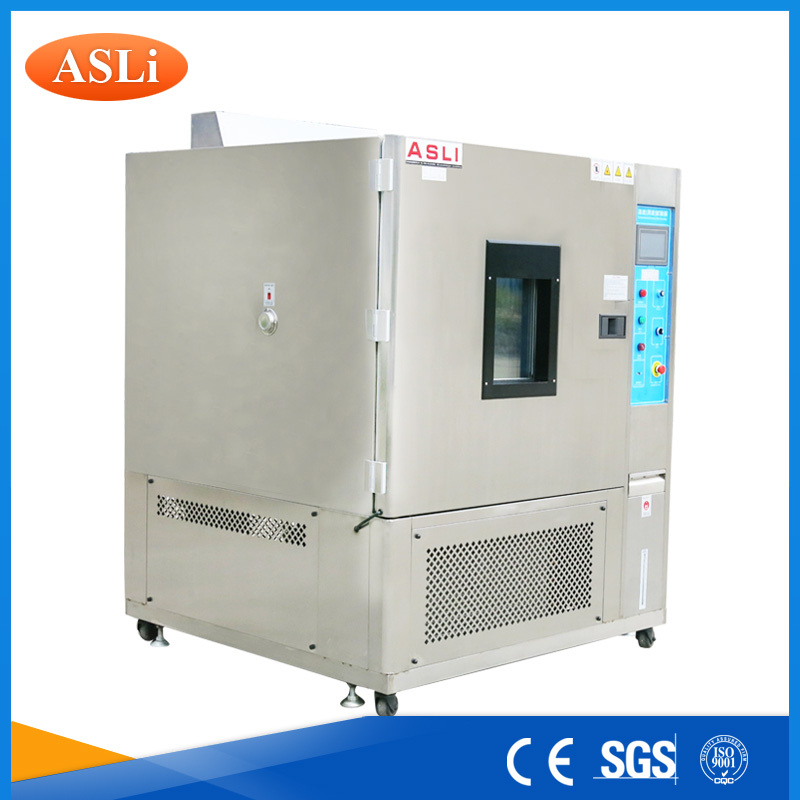

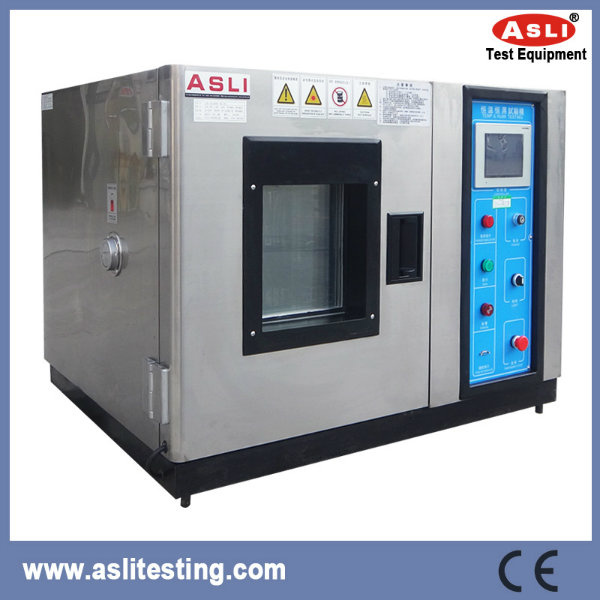

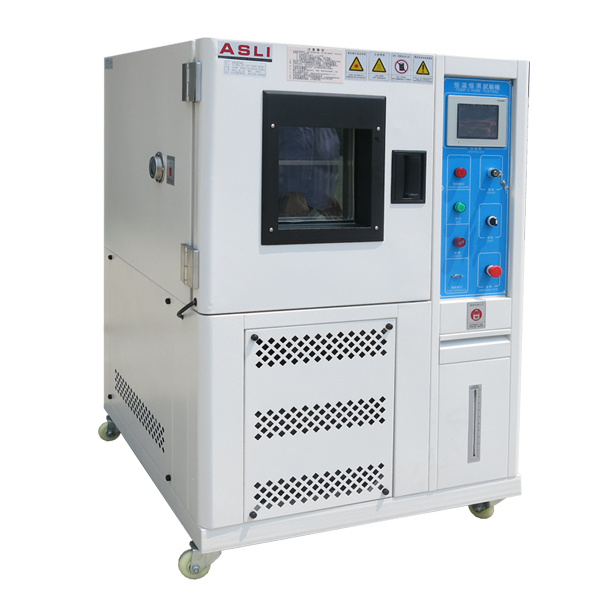

Asli Factory Th Series Climate and Temperature and Humidity Chamber
| Price: | US $ 5000-12000/Set |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
ASLi Factory TH series climate and temperature and humidity Chamber
1.Professional Manufacturer
2.Material:SUS#304
3.Customized Size
4, LCD touch screen
ASLi Factory TH series climate and temperature and humidity Chamber
Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of
electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials,
medical and aerospace industries.
ASLi Factory TH series climate and temperature and humidity Chamber feature:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular doubleglassed watching window for the observation of the test
production during the testing process. The window is equipped with sweatproof
electrical heating device that can prevent water steam from condensing into
droplets, and with high brightness PL fluorescentbulbs to provide light inside the box.
3. Double- layer insulated airtight doors, able to insulate the internal temperature
effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Asli Main Products:
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc
1.Professional Manufacturer
2.Material:SUS#304
3.Customized Size
4, LCD touch screen
ASLi Factory TH series climate and temperature and humidity Chamber
Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of
electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials,
medical and aerospace industries.
ASLi Factory TH series climate and temperature and humidity Chamber feature:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular doubleglassed watching window for the observation of the test
production during the testing process. The window is equipped with sweatproof
electrical heating device that can prevent water steam from condensing into
droplets, and with high brightness PL fluorescentbulbs to provide light inside the box.
3. Double- layer insulated airtight doors, able to insulate the internal temperature
effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Asli Main Products:
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc
| Model | TH-225-D |
| Internal Dimension | W600xH750xD500(mm) |
| Internal Dimension | W1200xH1900xD1150(mm) |
| Temperature Range | Low Temperature: D:-40ºC (Temperature according to customer's requirement) |
| Humidity Range | 30%R.H.(Humidity according to customer's requirement) |
| Analytic Accuracy/ Distribution uniformity of temperature and humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5ºC; ±2.5% R.H. |
| Temperature Rising/ falling Speed Rate | Temperature rising approx. 0.1~3.0ºC/min / temperature falling approx. 0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºCper minute is a special optional condition) |
| Temperature /humidity | -40 degree, 20%~98%R.H. |
| Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand,Germany Bizer Brand |
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ |
| Approx. Weight (Kg) | 250 |
| Prod Model: | TH SERIES |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Name: | Moisture Test Chamber |
| Usage: | Temperature & Humidity Testing |
| Material: | SUS 304# Stainless Steel and See Cold-Rolled Steel |
| Humidity Range: | 20%R.H.(Humidity Can Be Customized) |
| Temperature /Humidity: | -40 Degree, 20%~98%R.H. |
| Compressor: | French Tecumseh Brand, Germany Bizer Brand |
| Power: | AC220V 1pH 3 Lines, 50/60Hz, AC380V 3pH 5 Li |
| Warranty: | One Year Warranty, Lifelong Time Maintainance |
| Service: | OEM Service, Design Service |
| Package: | Standard Export Wooden Case |
| Analysis Method: | Physical Analysis |
| Type: | Temperature and Humidity Test Chamber |
| Application: | Instrument, Automobile, Plastic, Metal, Food, Chem |
| Portable: | Customized |
| Physical Analysis Type: | Temperature and Humidity Test Chamber |
