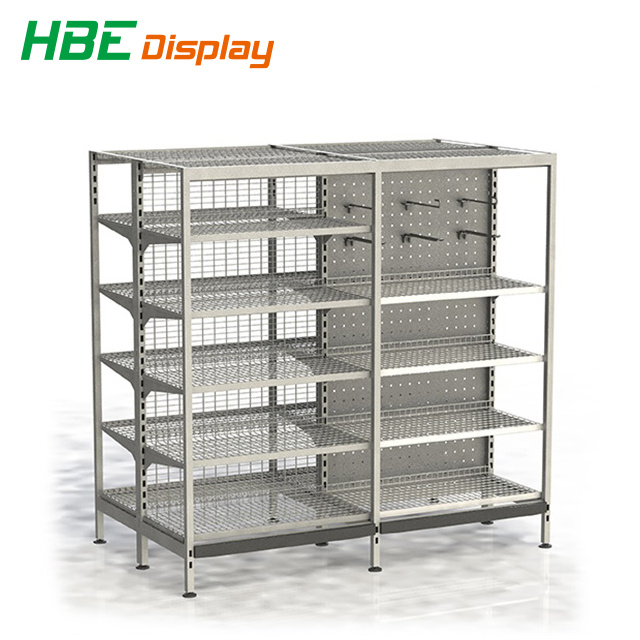

Au Iga Style Hammer Tone Heavy Duty Outrigger Supermarket Shelf
| Price: | US $ 95-185/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T,Western Union |
AU IGA style Outrigger rack Supermarket Shelving
Specification
4. Bracket Thickness Options:
2.5/3.0mm
1. Heavy-duty capacity,Beautiful apperance,Suitable struction design.
2. Struction details:
* Upright:30*60*(2.0-2.5mm) / 30*80*(2.0-2.5mm)
* Thickness of shelf:0.7-1.0mm
* Thickness of back panel:0.5-1.0mm (plain or perforated)
* Thickness of bracket:2.0-3.0mm
3. Surface treatment: phosphate rust - epoxy polyester coating proces: Akzo / Dupnot Brand
4. Layer board can be adjusted freely,Base foot assemble with the upright
5. Bearing capacity: 120-150kg per shelf

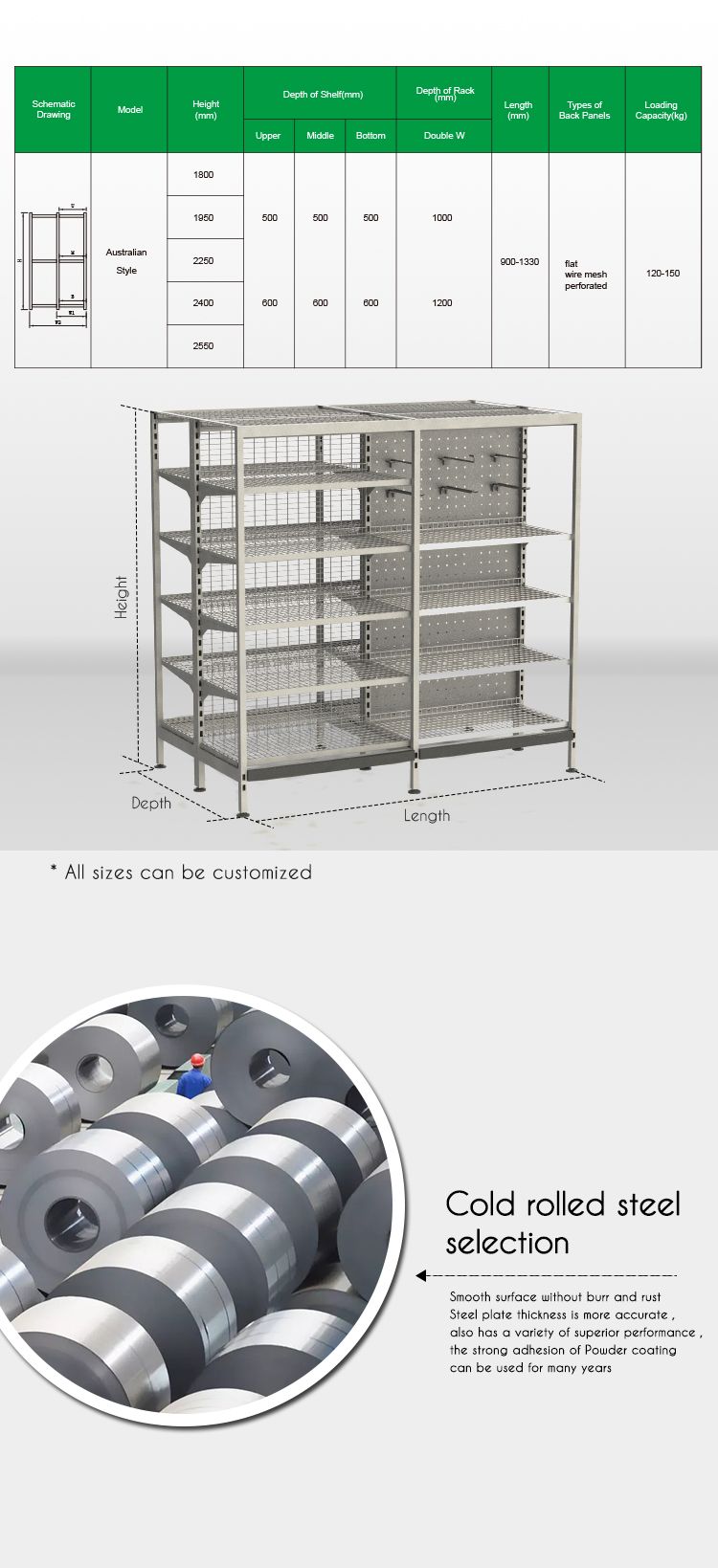

6. Size:
* Length:900/1000/1200mm
* Width:300/350/400/450/500/550/600mm
* Hight::1200/1500/1800/2000/2200/2500/2800/3000mm
Susperiority
1. Corrosion resistand,rust proof.The naturally-formed oxide layer can prevent metal from oxidization
and have good acid alkali resistance.
2. Different size and design available,Welcome your own drawing.
3. Produce ability: 30*40GP per month
4. Deliver time 15 days per container
Features:
1) Easy to assemble and disassemble;
2) Available with light, medium, and heavy carrying capacities;
3) High quality and good appearance;
4) The most commonly used in all supermarket systems;
5) Each layer carrying up to 30-150kg.
6) The reliable and efficient service before and after deal.
Specification
4. Bracket Thickness Options:
2.5/3.0mm
1Post or upright size | 40*80 | 30*60 | ||
2Side(oneside or inside | One side | Double side | One side | Double side |
3Specification | 1200*550*2000 | 1200*1100*2000 | 1200*450*1800 | 1200*900*1800 |
4Thickness of board | 0.6mm | 0.6mm | 0.5mm | 0.5mm |
5Thickness of post or upright | 1.8mm | 1.8mm | 1.35mm | 1.35mm |
6Thickness of back panel | 0.4mm | 0.4mm | 0.4 mm | 0.4mm |
7Capacity(each layer) | 120-150kg | 150-200kg | 100-120kg | 120-150kg |
8Quantity of layers | 5 | 5 each side | 5 | 5 each side |
9Cubic meter | 0.088 | 0.163 | 0.068 | 0.129 |
10weight | 53.14kg | 92.95kg | 36.08kg | 65.41kg |
color | Wight or others | Wight or others | Wight or others | Wight or others |
Post or upright size | 40*60 | 30*70 | ||
Side(oneside or inside | One side | Double side | One side | Double side |
Specification | 1200*550*2000 | 1200*1100*2000 | 1200*450*1800 | 1200*900*1800 |
Thickness of board | 0.6mm | 0.6mm | 0.5mm | 0.5mm |
Thickness of post or upright | 1.8mm | 1.8mm | 1.35mm | 1.35mm |
Thickness of back panel | 0.4mm | 0.4mm | 0.4 mm | 0.4mm |
Capacity(each layer) | 100-150kg | 100-200kg | 100-120kg | 120-150kg |
Quantity of layers | 5 | 5 each side | 5 | 5 each side |
Cubic meter | 0.088 | 0.163 | 0.068 | 0.129 |
weight | 49.14kg | 88.95kg | 39.08kg | 68.41kg |
color | Wight or others | Wight or others | Wight or others | Wight or others |
1. Heavy-duty capacity,Beautiful apperance,Suitable struction design.
2. Struction details:
* Upright:30*60*(2.0-2.5mm) / 30*80*(2.0-2.5mm)
* Thickness of shelf:0.7-1.0mm
* Thickness of back panel:0.5-1.0mm (plain or perforated)
* Thickness of bracket:2.0-3.0mm
3. Surface treatment: phosphate rust - epoxy polyester coating proces: Akzo / Dupnot Brand
4. Layer board can be adjusted freely,Base foot assemble with the upright
5. Bearing capacity: 120-150kg per shelf
6. Size:
* Length:900/1000/1200mm
* Width:300/350/400/450/500/550/600mm
* Hight::1200/1500/1800/2000/2200/2500/2800/3000mm
Susperiority
1. Corrosion resistand,rust proof.The naturally-formed oxide layer can prevent metal from oxidization
and have good acid alkali resistance.
2. Different size and design available,Welcome your own drawing.
3. Produce ability: 30*40GP per month
4. Deliver time 15 days per container
Features:
1) Easy to assemble and disassemble;
2) Available with light, medium, and heavy carrying capacities;
3) High quality and good appearance;
4) The most commonly used in all supermarket systems;
5) Each layer carrying up to 30-150kg.
6) The reliable and efficient service before and after deal.
| Prod Model: | HBE-SR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: | Hammer Tone |
| Design: | OEM Avilable |
| Color: | Customized |
| Guarantee: | 3 Year |
| Material: | Steel |
| Style: | Back Net Style |
| Side Number: | Single Sided |
| Weight: | Heavy Weight |
| Rotary: | Fixed |
| Usage: | Convenient Store |
| Customized: | Customized |
