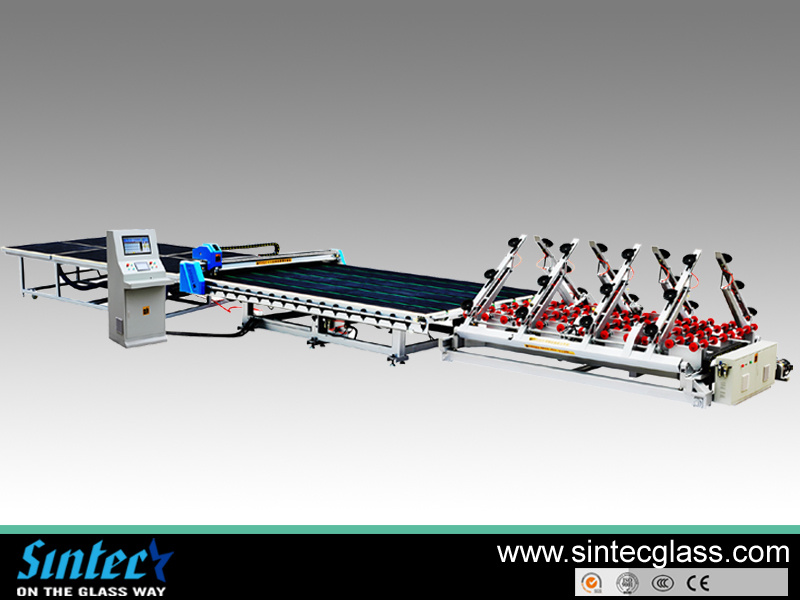

Automatic CNC Various Shapes Glass Cutting Table Sp-4228
| Price: | US $ 10000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

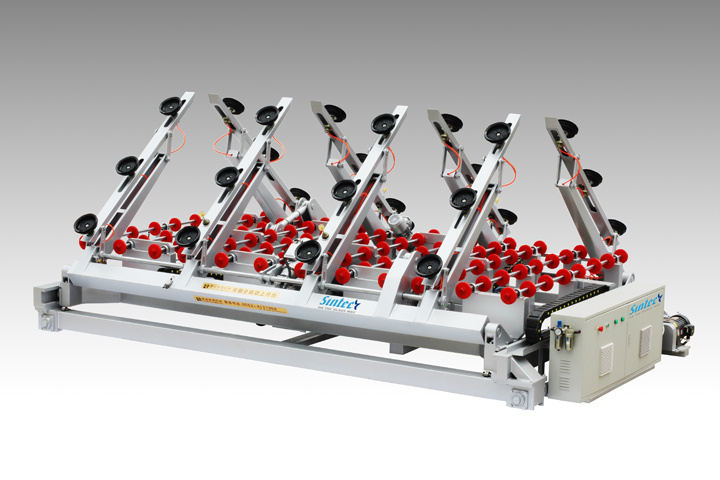

XC-SP-4228 Automatic Glass Loading Machine
Mechanical characteristic:
- Mn bridge steel (Q345A ), perfect surface treatment
- High quality vacuum system, fast sucking speed and high stability
- One key original reset function, for improving work efficiency
- Trouble alarm system and safety alarm system
- Four-bar linkage glass lift structure
- High density PU material glass convey wheel
- Acrylonitrile-butadiene rubber suck disc
- 40CBM/hour vacuum pump
- Enclosed wire and air pipe set

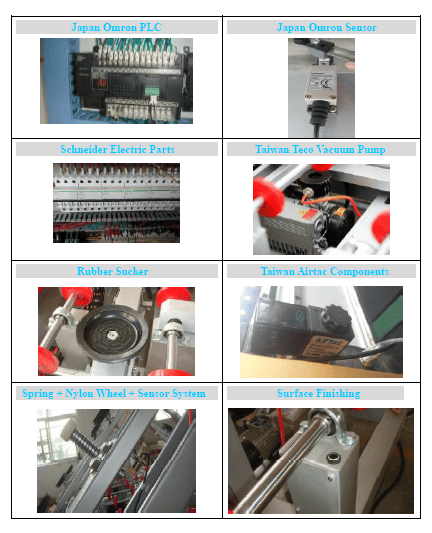

Main parts list:
PLC: Omron (Japan)
Touch screen: MCGS
Converter: Teco (Taiwan)
Sensor: Omron (Japan)
Technical introduction:
- Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm
- Chain convey after glass suck
- Both auto and manual modes
- Auto alarm system and emergency button for make sure safety operation
- English language touch screen operation
- Glass sheet quantity and station position auto set
- Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table
Technical parameter:
| Model | Max. glass size | Thickness | Dimensions (L*W*H) | Power | Air pressure |
| SP-2620 | 2600*2000mm | 2~19mm | 3560*2200*900mm | 8KW | 0.6~0.8MPa |
| SP -4228 | 4200*2800mm | 3~19mm | 5000*2850*900mm | 8KW | 0.6~0.8MPa |
| SP -5133 | 5100*3300mm | 3~19mm | 5400*3000*900mm | 8KW | 0.6~0.8MPa |
| SP -6133 | 6100*3300mm | 3~19mm | 6430*3340*900mm | 8KW | 0.6~0.8MPa |
| Prod Model: | SP-4228 |
|---|---|
| Max. Glass Sheet Size: | 4200*2800mm |
| Glass Thickness: | 3-19mm |
| Dimensions (L*W*H): | 5000*2850*900mm |
| Air Pressure: | 0.6~0.8MPa |
| PLC: | Omron |
| Touch Screen: | Mcgs |
| Sensor: | Omron |
| Converter: | Teco (Taiwan) |
| Type: | Glass Cutting Machine |
| Certification: | ISO |
| Control System: | Galia USA |
