Automatic Glass Cutting Machine CNC Glass Cutting Table
| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

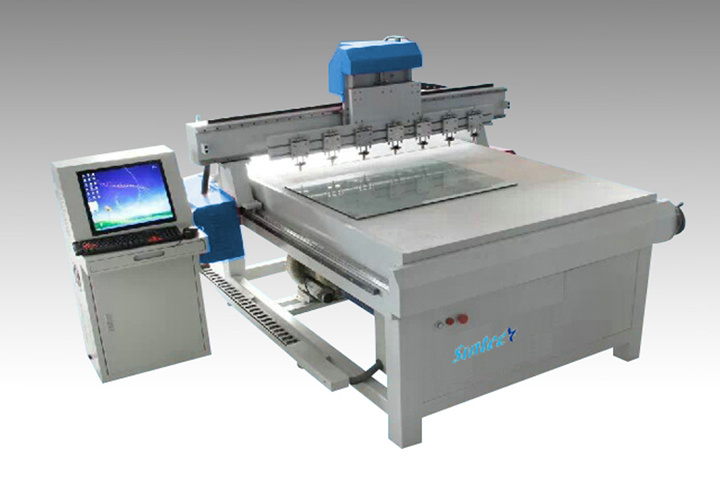

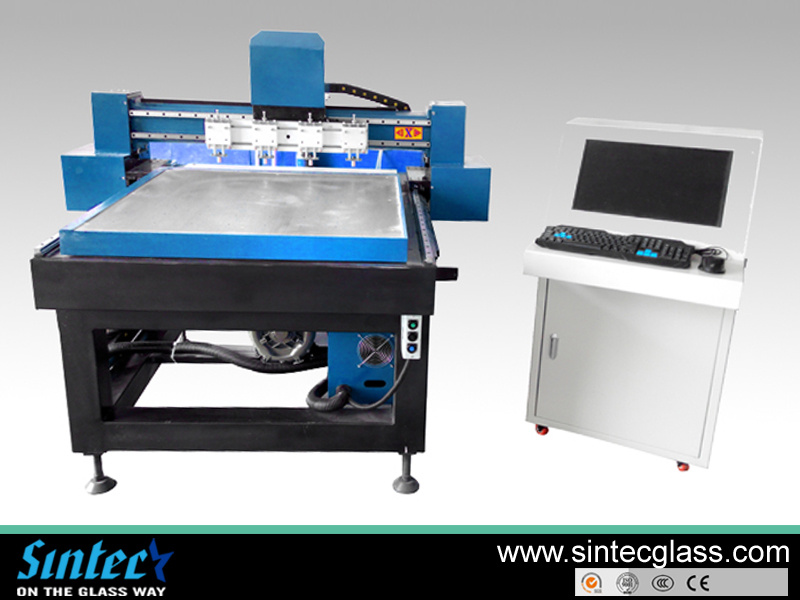

NC -1613 Automatic Glass Cutting Machine
Feature
Any shape cut, straight line cut
Multi-cutters install, high cutting efficiency
Ultra thin glass cut (0.7-8mm)
Characteristic

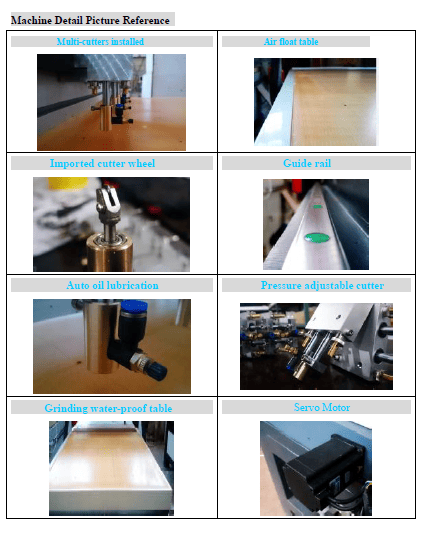

- Any shape of glass cut available with high precision.
- AUTO CAD designed graphs input
- Convex glass cut available (Optional)
- Art glass, Optical glass, Phone panel and Car mirror industries are all available
- Air float and air suck table function
- Auto lubrication system
- High accuracy, fast speed, easy operation and wide application.
Technical parameter:
| Model | Max. glass size | Thickness | Dimensions (L*W*H) | Max. speed | Weight |
| NC-800 | 800*800mm | 0.4~8mm | 1200*1200*1200mm | 20m/min | 350kg |
| NC-1313 | 1300*1300mm | 0.4~8mm | 2200*1800*1200mm | 30m/min | 450kg |
| NC-1613 | 1600*1300mm | 0.4~8mm | 2600*1800*1200mm | 40m/min | 600kg |
| NC-2520 | 2500*2000mm | 0.4~8mm | 3400*2500*1200mm | 40m/min | 800kg |
| Prod Model: | NC-1613 |
|---|---|
| Max. Glass Sheet Size: | 1600*1300mm |
| Glass Thickness: | 0.4-8mm |
| Dimensions (L*W*H): | 2600*1800*1200mm |
| Max. Cutting Speed: | 40m/Min |
| Air Pressure: | 0.6~0.8MPa |
| Nc System: | Weihong |
| Drawing Software: | Wentai |
| Pneumatic Parts: | Airtac (Taiwan) |
| Low Voltage Electric Parts: | Schneider (France) |
| Type: | Glass Cutting Machine |
| Certification: | ISO |
| Control System: | Galia USA |
Sintec Glass Machinery Co., Ltd., is located in a beautiful pearl City -- Bengbu, Anhui Province, is a professional high-tech enterprises which produce various kinds of glass cutting machines in China since 2009.
To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.
After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.
Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.
Sintec for its excellent quality and perfect after sale service by the customers trust and support,
We will take sincere attitude of friends at home and abroad, joint development of glass machinery manufacturing industry brilliant tomorrow!
To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.
After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.
Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.
Sintec for its excellent quality and perfect after sale service by the customers trust and support,
We will take sincere attitude of friends at home and abroad, joint development of glass machinery manufacturing industry brilliant tomorrow!
