Automatic Radio Shuttle Racking System for Warehouse with Ce

Automatic Radio Shuttle Racking System for Warehouse with Ce
Price: US $ 33-330/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FL-339
Surface Treatment: Plastic Spray or Baked Paint Finishing
Operation: Automatic Addressing Artificial Loading
Certificates: ISO 9001
Features: Corrosion Protection
OEM: Yes
ODM: Yes
Upright Height: Max 5000mm
Arm Support: Max 1200mm
Warranty: at Least 5 Years
Delivery: Within 15 Days
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 5-15m
Closed: Open
Development: New Type
Serviceability: Common Use
Weight: 500-3000kg

Product Description

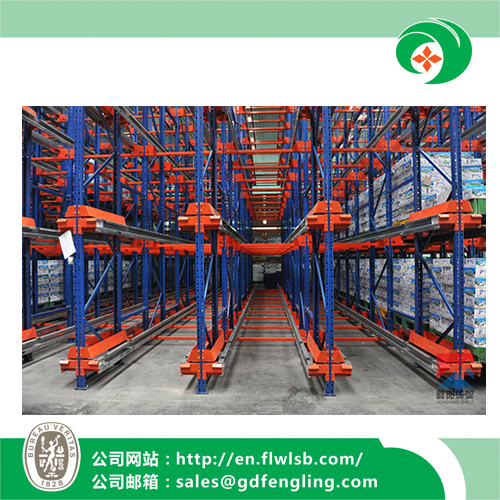

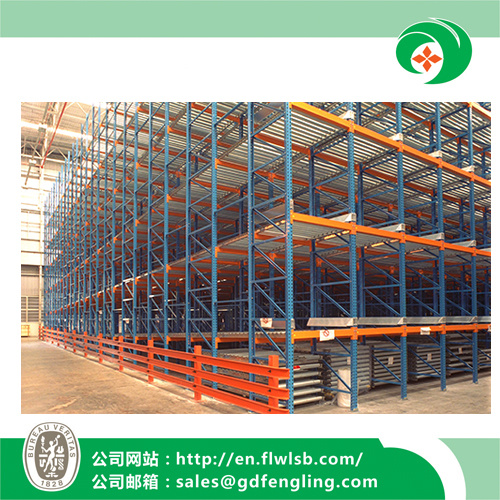

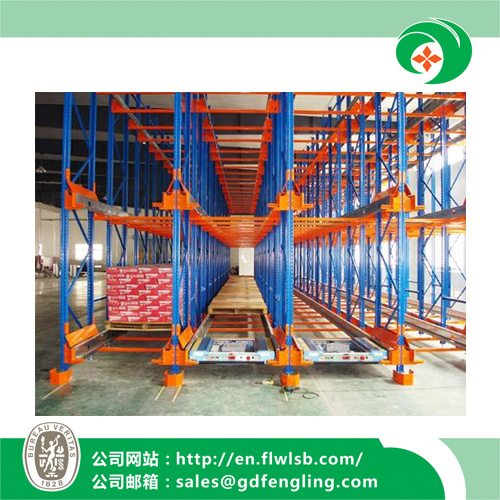

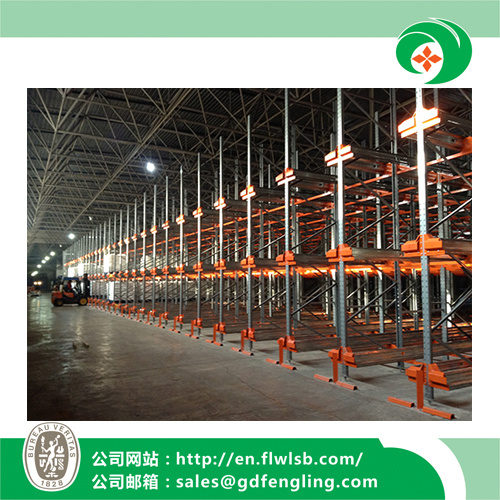

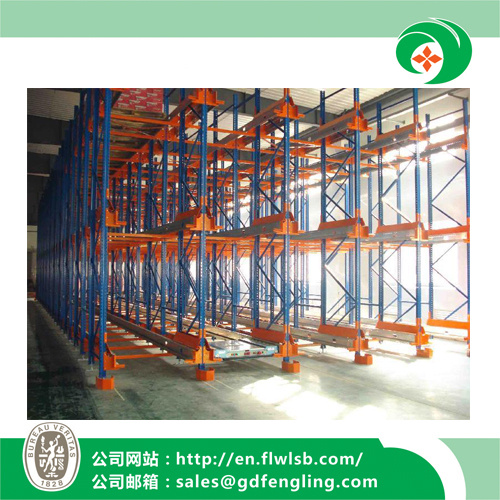

Automatic Radio Shuttle Racking System for Warehouse with CE




Specification

Pallet Size: W1200*D1000mm
Pallet Material: Steel, Plastic, Wood
Pallet Outline: Grid-shaped, Tin-shaped
Deflection of Pallet: Max 20mm
Total Weight of Loading: Max 500kg/1000kg/1500kg/2000kg
Modle of Running: Inside the two rails
Running without Loading: 1.1m/s
Running with Max Loading: 0.9m/s, 0.7m/s, 0.5m/s, 0.5m/s
Lift Distance: 22mm
Single Lift time: 1.1s / 1.3s / 1.5s / 1.5s
Total Weight of Equipment: 222kg/228kg/240kg/240kg
Battery Packs Capacity: BYD 2 set x 24V 30AH
Battery Voltage: DC 24V
Remote Control Type: Radio-transmitter
Running Noise: < 70DB


Certificate


FAQ

1. Q: Are you a factory or trading company?
A: Factory, which was established in 2002.
Specialized in providing expert service, including design, manufacture, installation & maintenance for the logistic industries,warehouse equipments and sheet metal products.
2. Q: What is the term of payment?
A: T/T,L/C,Western Union, MoneyGram are available.
As usual, pre-paid full payment or 30% deposit then pay the balance before delivery.
3. Q: What is your delivery time?
A: It depends on the order quantity and racking types.
Generally, within 20 work days for ordinary order quant after receiving the deposit.
4. Q: Which port will be used as loading port?
A:Guangzhou port, the closest port to us, is recommended strongly as loading port.
5. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. Every step will be send to you in time.

Contact:
Ryann Chan
Tel: (+86) 22176631/21661941
Fax:(+86) 22288142
Phone:(+86)13794987237


Our factory can design and manufacture no-standard products according to customers' requirements.
Please feel free to contact me for storage equipment any time.
We can quote you upon request, and will reply you within 24 hrs.
Dongguan Fengling Logistics Equipment Manufactory Limited was originally established in 2002, and now is greatly developed as a professional enterprise to design, manufacture and install 3 series of products lines as below:

1) All series of Racking system,

2) Racking accessories inc. Racks, pallets, mental trolley, roller cage, IBC, cart, container, and other non-standard mental products,

3) Metal frame, steel cladding and steel structured building, etc.

Our expertise and products are widely recognized and accepted in the following fields you may working in:

Automobile,

Agriculture and gardening,

Electrical and Electronics,

Textile(esp. Cloth),

Furniture,

Shoes,

Glass and ceramic,

Construction and real estate,

Refrigerate Chain,

Warehousing, Logistics & Supply Chain,

etc.

Domestic market is our past precious strength and we are now exporting to Japan, Europe, US, Australia and New Zealand, and quite a few South East Asia and South Asia countries.

No matter where you are, we are expecting you here.

Welcome your enquiry and possible visit.

Dongguan Fengling Logistics Equipment Manufactory Limited

Tel: 86-76933668485 15625556206

Overseas Manager: MATT YAN

Devoted as a comprehensive supplier for racking, logistics accessories and metal/steel structure project!
