Yancheng Haide Machinery Manufacturing Co., Ltd. >> Automatic Square Cloth Sample Cutting Table

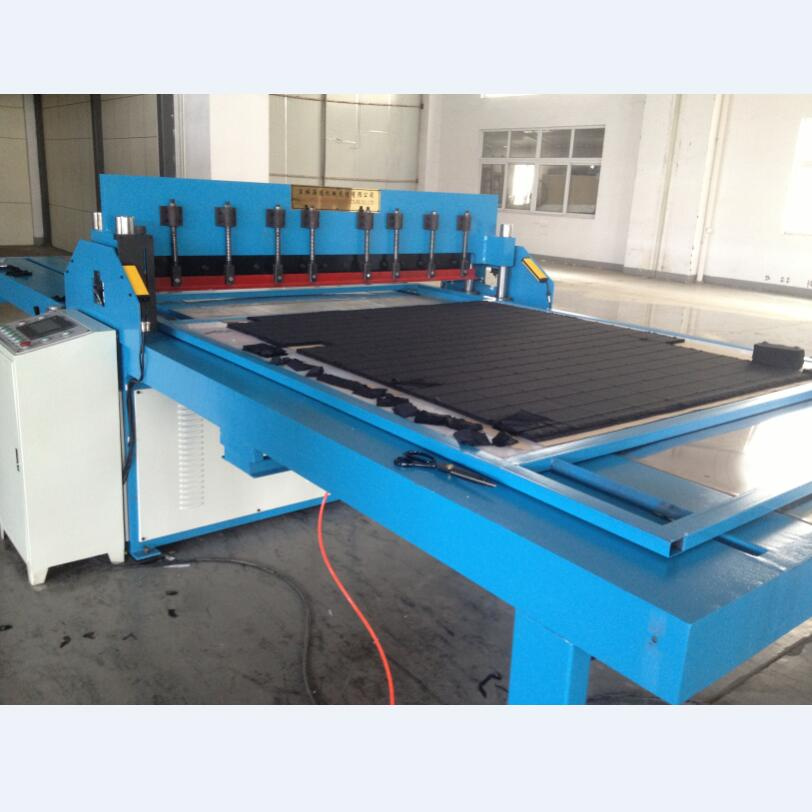

Automatic Square Cloth Sample Cutting Table
| Price: | US $ 9000-12000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Features
We offer both fully automatic and semi-automatic type machine, the max width of fabric can be 500mm-2800mm
1.Effortless cutting of any fabric quality---far superior to hand operated machines
2.Precise and accurate thanks to right angle guide with milimeter graduation.
3.Easy to operate,fast and powerful.
4.Safe,computerized operated.
5.Reliable and maintenance-free
Techinical Parameters

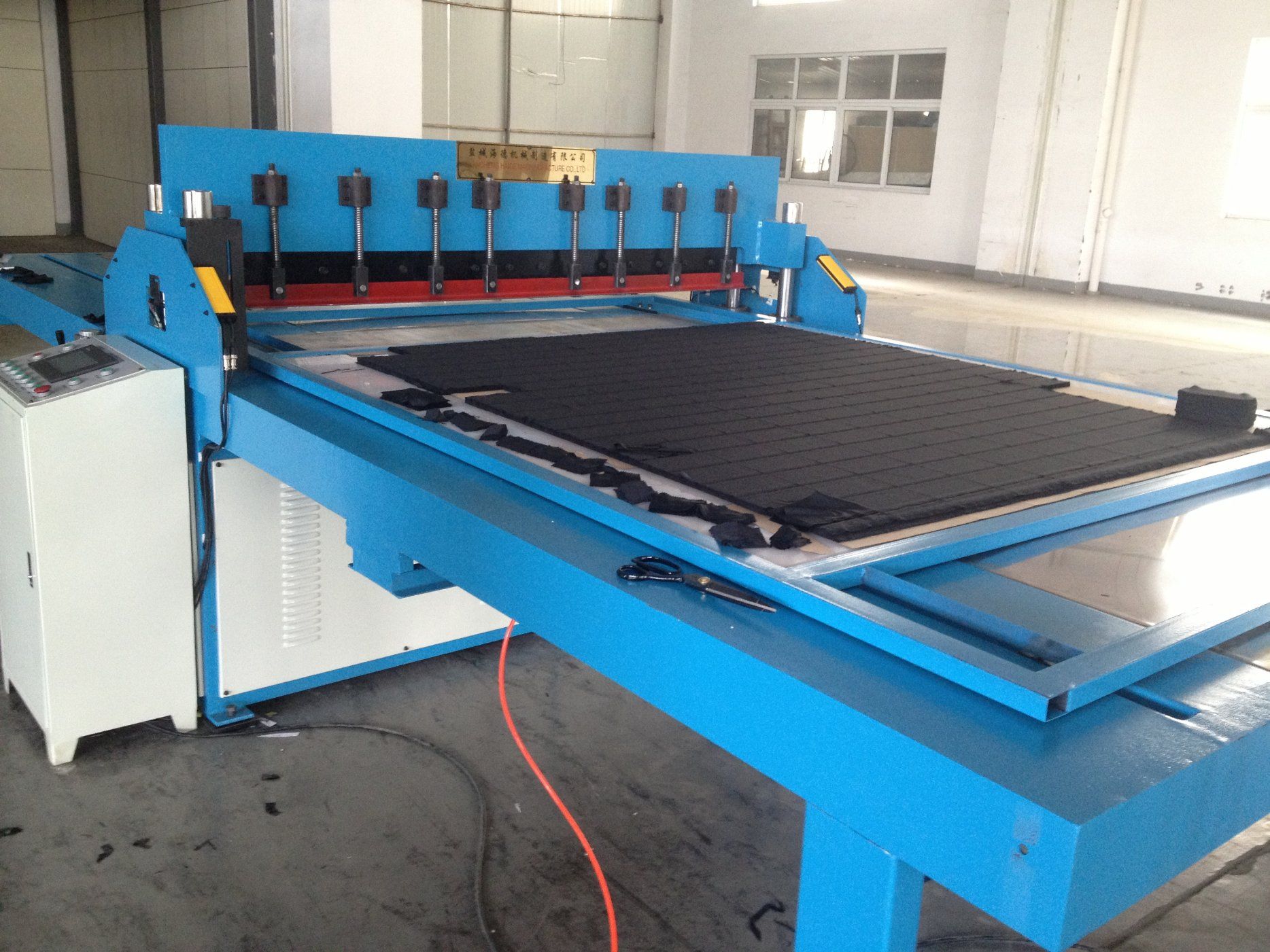

automatic type

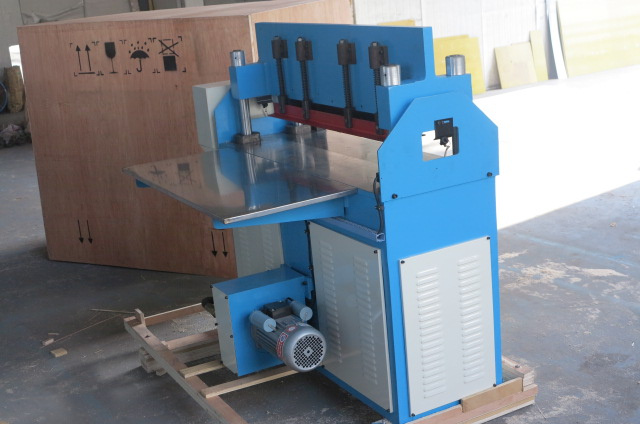

manual type for reference
Application
mainly used for cutting fabric, glass cloth, leather, cotton textiles, cardboard and other similar materials
Package
FAQ
1. Q:Are you a factory or trading company?
A: Yes,we are a factory. welcomed to visit us
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng, Jiangsu, China. It takes about 1 hours from Shanghai by plane
3. Q: What is the lead time?
A: It depends on your order quantity
4. Q: Where is your Loading Port
A: Shanghai. port, China or otheres as you request
5. Q: What are your payment terms?
A: 30% deposit and balance T/T before shippment.
Contact
We offer both fully automatic and semi-automatic type machine, the max width of fabric can be 500mm-2800mm
1.Effortless cutting of any fabric quality---far superior to hand operated machines
2.Precise and accurate thanks to right angle guide with milimeter graduation.
3.Easy to operate,fast and powerful.
4.Safe,computerized operated.
5.Reliable and maintenance-free
Techinical Parameters
| the cutting force | 20T,25T,30T,35T,40T |
| Min cutting length | 1mm |
| The cutting width | 1600mm |
| The cutting thickness | 50mm |
| The cutting stroke | 140mm |
| The height between work table and blade | 150mm |
| The size of working table | 1600mm*1600mm |
| The cutting size error | ≤1mm |
| Main motor Power | 2.2KW |
| Foward motor Power | 1KW |
| Hydraulic press capacity | 85L |
| Mahchine Dimension | 2270mm*1400mm*2580mm |
| Package Dimension | 2180mm*1210mm*2390mm |
| Gross weight | 2350kg |
| Net weight | 2250kg |
A. We manufacturer both fully automatic type and semi automatic type
B. The machine is customized, we can make machine according to your request
C. For more details, such as more pictures, technical parameter or operating video, please contact us freely
automatic type
manual type for reference
Application
mainly used for cutting fabric, glass cloth, leather, cotton textiles, cardboard and other similar materials
Package
FAQ
1. Q:Are you a factory or trading company?
A: Yes,we are a factory. welcomed to visit us
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng, Jiangsu, China. It takes about 1 hours from Shanghai by plane
3. Q: What is the lead time?
A: It depends on your order quantity
4. Q: Where is your Loading Port
A: Shanghai. port, China or otheres as you request
5. Q: What are your payment terms?
A: 30% deposit and balance T/T before shippment.
Contact
| Prod Model: | HDJX-1600A |
|---|---|
| Delivery Time: | 15 Working Days After We Got The Payment |
| Automatic Grade: | Automatic |
| Certification: | ISO9001: 2000 |
| Condition: | New |
| Application: | Fabric Sample/Swatch |
