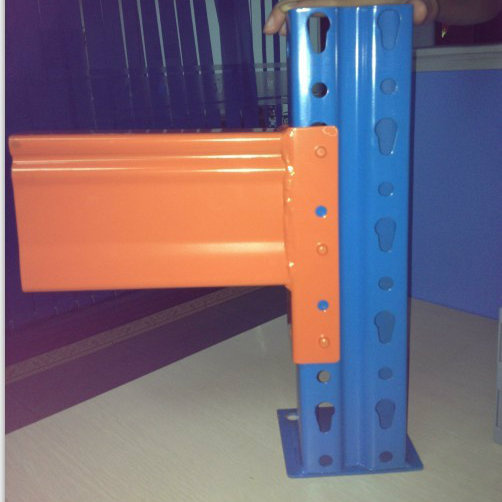

Beams and Uprights for Warehouse Storage Rack
| Price: | US $ 20-50/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
What is main features for Jintuo rack
1, easy to assemble, adjustable by 75mm;
2, Blue upright and orange beams
3, Pallets can be located, accessed and moved individually.
4, Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety;
5, Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire deckings, steel shelf, etc.;
6, First level pallets can be placed on the floor.
7, Can be customized by your needs.
Advantages of Jintuo rack
1, Versatility and flexibility to meet any storage needs;
2, Infinitely adjustable and offering a wide range of options and components.
3, Strength and rigidity prevents compression damage to goods.
4, Direct factory price, 5 years warranty for quality
5, Hand sample is available
Sample policy:
we will send you sample for your reference, but have to pay from your side; we will refund the fee once you have an order with us!
We offer design customized, so need the following details:
Customized, please inform us the following information, we can provide the solutions as your requirment, thanks!
1) Size of the warehouse
2) Required Pallet Racking Dimension: Height*Depth*Length
3) Number of Levels for each unit of rack
4) Loading capacity for each pallet or for each level of beams
5) Color
6) Better offer us your CAD layout drawing for design if available.
If you are not very sure of above info, please just let us know your storage needs.
1, easy to assemble, adjustable by 75mm;
2, Blue upright and orange beams
3, Pallets can be located, accessed and moved individually.
4, Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety;
5, Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire deckings, steel shelf, etc.;
6, First level pallets can be placed on the floor.
7, Can be customized by your needs.
Advantages of Jintuo rack
1, Versatility and flexibility to meet any storage needs;
2, Infinitely adjustable and offering a wide range of options and components.
3, Strength and rigidity prevents compression damage to goods.
4, Direct factory price, 5 years warranty for quality
5, Hand sample is available
Sample policy:
we will send you sample for your reference, but have to pay from your side; we will refund the fee once you have an order with us!
We offer design customized, so need the following details:
Customized, please inform us the following information, we can provide the solutions as your requirment, thanks!
1) Size of the warehouse
2) Required Pallet Racking Dimension: Height*Depth*Length
3) Number of Levels for each unit of rack
4) Loading capacity for each pallet or for each level of beams
5) Color
6) Better offer us your CAD layout drawing for design if available.
If you are not very sure of above info, please just let us know your storage needs.
| Height (2-13m) | Depth (600-1,400mm) |
| Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm | |
| Thickness: 2.0/2.3/2.5/3.0mm | |
| Beam | Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm |
| Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm | |
| Thickness: 1.4--1.5mm | |
| Load capacity | 1-4Tons/Layer |
| Others | - Pitch: 75mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity: 50,000T/month - Available in various colors/specifications/sizes |
| Prod Model: | Selective |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: | Plastic Spray or Baked Paint Finishing |
| Color: | as Required |
| Pitch: | 75mm |
| Feature: | Corrosion Protection |
| Connecting Way: | Bolted |
| ODM: | Yes |
| OEM: | Yes |
| Type Of Company: | Manufacturer |
| Loading Port: | Nanjing |
| Delivery Time: | 10-20 Days According to Quantity |
| Material: | Steel |
| Structure: | Layer Frame |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Type: | Beams and Uprights |
| Height: | 0-11.8m |
| Weight: | 1000-10000kgs |
