Beijing Finen Electronic Equipment Co., Ltd. >> Beijing Finen as Telecom Network Cabinet Server Rack Cabinet

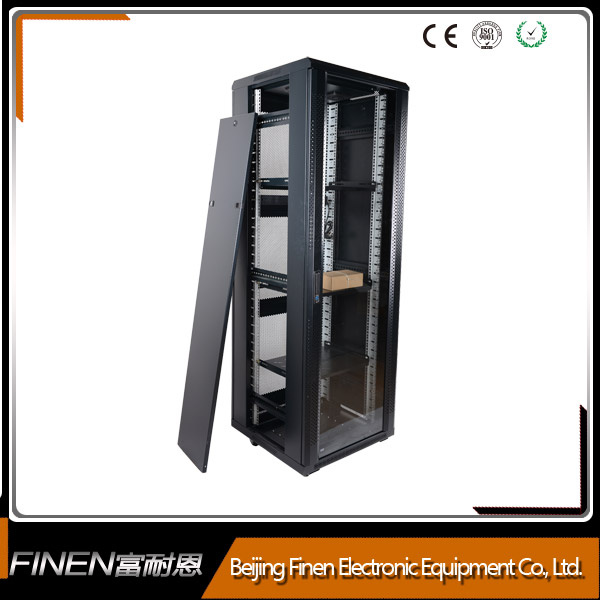

Beijing Finen as Telecom Network Cabinet Server Rack Cabinet

Beijing Finen as Telecom Network Cabinet Server Rack Cabinet
Price: US $ 80-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 15/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: FINEN A2 series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: as Network Cabinet
Loading Capacity: 800kg
Optional Color: Black, Gray, White
Width: 600, 800mm
Depth: 600mm 800mm 900mm 1000mm 1100mm 1200mm
Material: SPCC Cold Rolled Steel
Front Door: Toughened Glass Door
Rear Door: Solid Rear Door
Accessories: Available
Surface Finish: Degreasing/Pickling/Phosphating/Power Coating
Type: Network Cabinet
Usage: Wireless Monitoring System
Installation: Vertical
Certification: IEC
Fan Number: Optional
Capacity: 18u-47u

Product Description

AS Beijing network cabinet server rack cabinet



More options:



1.Wall mounted cabinet:4u,6u,9u,12u,15u

2.Floor standing cabinet:width 600mm,800mm,depth 600mm,800mm,1000mm,1200mm

3.Front door option:Glass door,perforated mesh door

4.Rack accessories:PDU,Shelves,Fans,Cable managers





 Production Information





Basic Information

1) Standard

Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92ETSI Standard

2) Material

SPCC high-quality cold rolled steel

3) Thickness

Mounting profile 2.0mm

Others 1.2mm

4) Surface Finish

Degreasing, Pickling, Phosphating, Powder coating

5) Protection Degree

IP20

6) Loading Capacity

800kgs(=1763lbs)

7) Color

Optional:  Black(RAL9004)  White(RAL7035)  Grey(RAL7032)

Features



 2 Sets of adjustable mounting rails(Zinc Plated)

 Cage nut style mounting rails

 Removable/lockable side panels

 Top and Bottom removable cable slots

 Glass front door/Vented Rear door


Specifications



 Width - 23.62 Inches (600mm), 31.50 Inches (800mm)

 Depth - 223.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm)

 Rail Width - 19 inch EIA Compliant



Advantage

1.Secure,firm and reliable

2. Easy to maintain equipment

3. Two Packing Ways:

    1).Assembly packing to save labour cost, ready to resell or use

    2).Disassembly packing to save space and transport cost, easy to assemble

4.Certification: ISO 9001:2000

5. OEM/ODM service available


Recommended options



 Fan assembly kit

 PDU

 Racks Screws,Cage nuts

 Plastic/Metal Cable management

 Shelves





Cabinet Structure

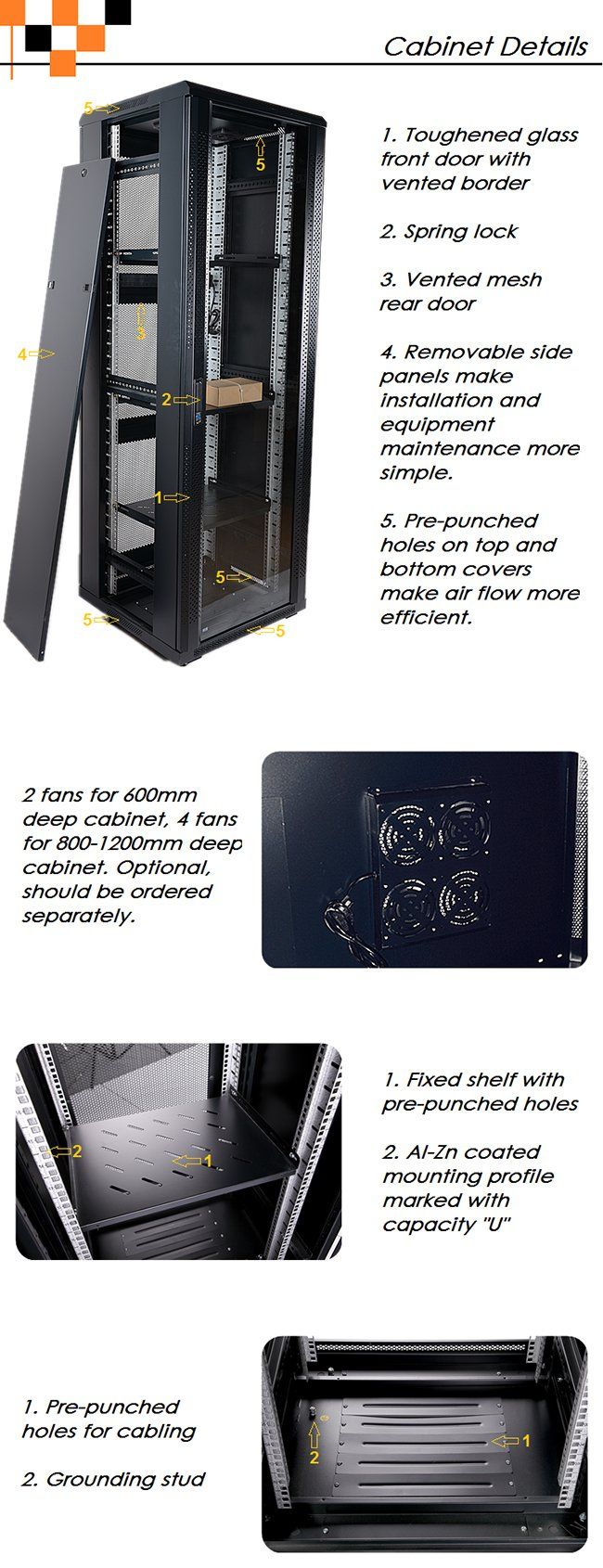

Cabinet Details

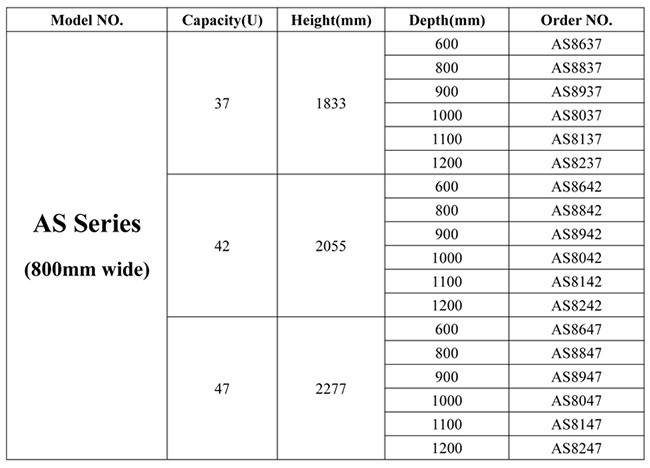

Specification




More











Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
