Benefication Equipment Wilfley Shaking Table

Benefication Equipment Wilfley Shaking Table
Price: US $ 1700/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 6S separator
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Feeding Granularity: 2 Mm
Feeding Concentration: 15-25 %
Distance: 8-22 Mm
Frequency: 15-57 F
Transverse Gradient: 1-4.5 Deg
Benefication Area: 7.6
Type: Gravity Separator
Voltage: 380V
Weight: 2T
Certification: CE
Warranty: 1 Year
Color: Black
Customized: Customized
Condition: New

Product Description

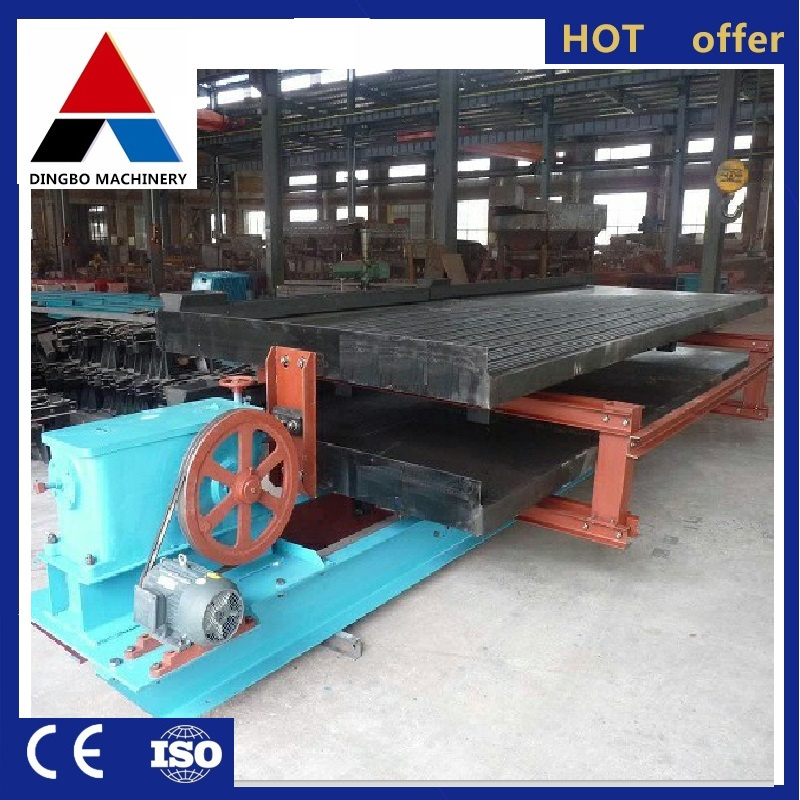

Wilfley Shaking Table
It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.



LS Wilfley Shaking Table(shaker table for gold)  is to make separations based on  the difference of specific  gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.


spiral concentrator surface is constructed of ore sand or slime and is made up of glass fibre reinforced plastic or aluminum alloy.




Main technical parameters

Name

Unit

Course ore Deck

Fine sand
Deck

Slime Deck

Deck Size

Length

mm

4450

4450

4450

transmission end width

mm

1855

1855

1855

Concentrate end width

mm

1546

1546

1546

Maximum Feeding Size

mm

2

0.5

0.15

Feeding Amount

t/d

30-60

10-20

15-25

Feeding Density

%

25-30

20-25

15-25

Stroke

mm

16-22

11-16

8-16

Frequency

f

45-48

18-53

50-57

Water added

t/d

80-150

30-60

10-17

Transverse slope of Deck

°

2°30-4°30

1°30-3°30

1°-2°

Longitudinal slope of Deck

°

1.4

0.92

------

Beneficiation Area

m2

7.6

7.6

7.6

Cross-section Shape of Deck



rectangular

saw tooth

triangle

Motor Power

KW

1.1

1.1

1.1

Transmission Mechanism



Eccentric linkage


LS Wilfley Shaking Table are effective gravity separation equipment  which can be  used for different  operation such as rough selection, elaborate selection and scavenging for large, medium and small-sized factories and applies to the sorting of nonferrous metal, ferrous metal, rare and precious metal, gold and nonmetallic ores of fine grains. Such shaking tables are divided into ore sand tables and ore slime tables. Oresand tables apply to the sorting of coarse ores and ore slime tables apply to the sorting of fine ores. Shaking Table Price

concentrator table is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal , coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.

The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.

Our main products include:

1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.

2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.

3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.

Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.

Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.

We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
