Best-Selling 3D CNC Engraving Machine for Furniture
| Price: | US $ 7000-13010/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

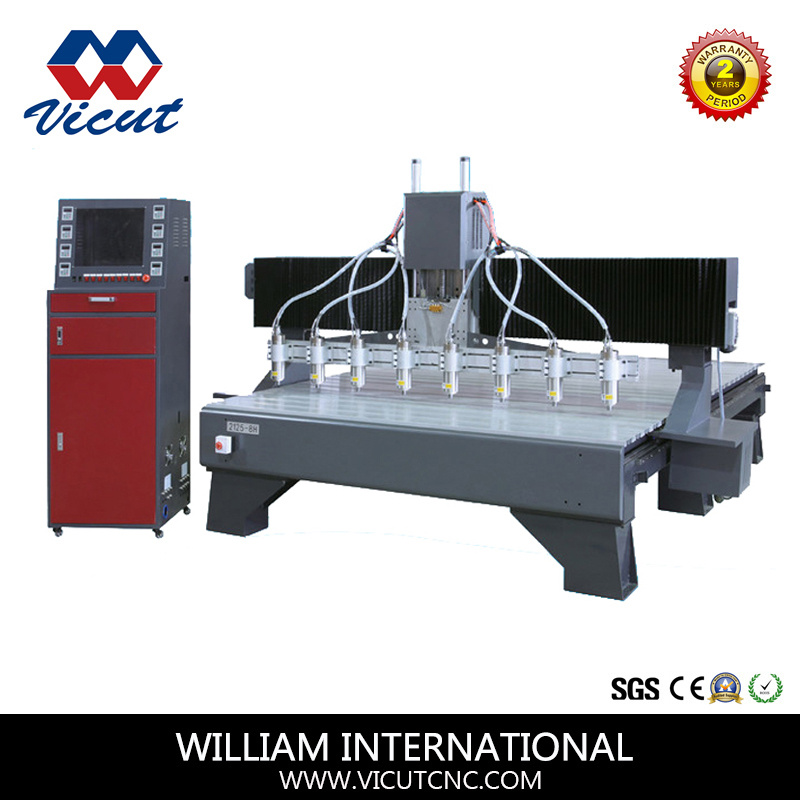

Best-Selling 3D 1500*2500mm CNC Engraving Machine for Furniture (VCT-1525FR-4H)
Features:
1. Heavy duty machine body, thick steel tube welding structure, ensures stable work and high accuracy.
2. FR series CNC router is professional in making 2D and 3D engraving jobs. Multiple spindle and rotary axes can process on cylinder materials as well as flat ones with high efficiency.
3. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.
4. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
5. Big size with more heads (up to 16 heads) can be customized.
Applications:

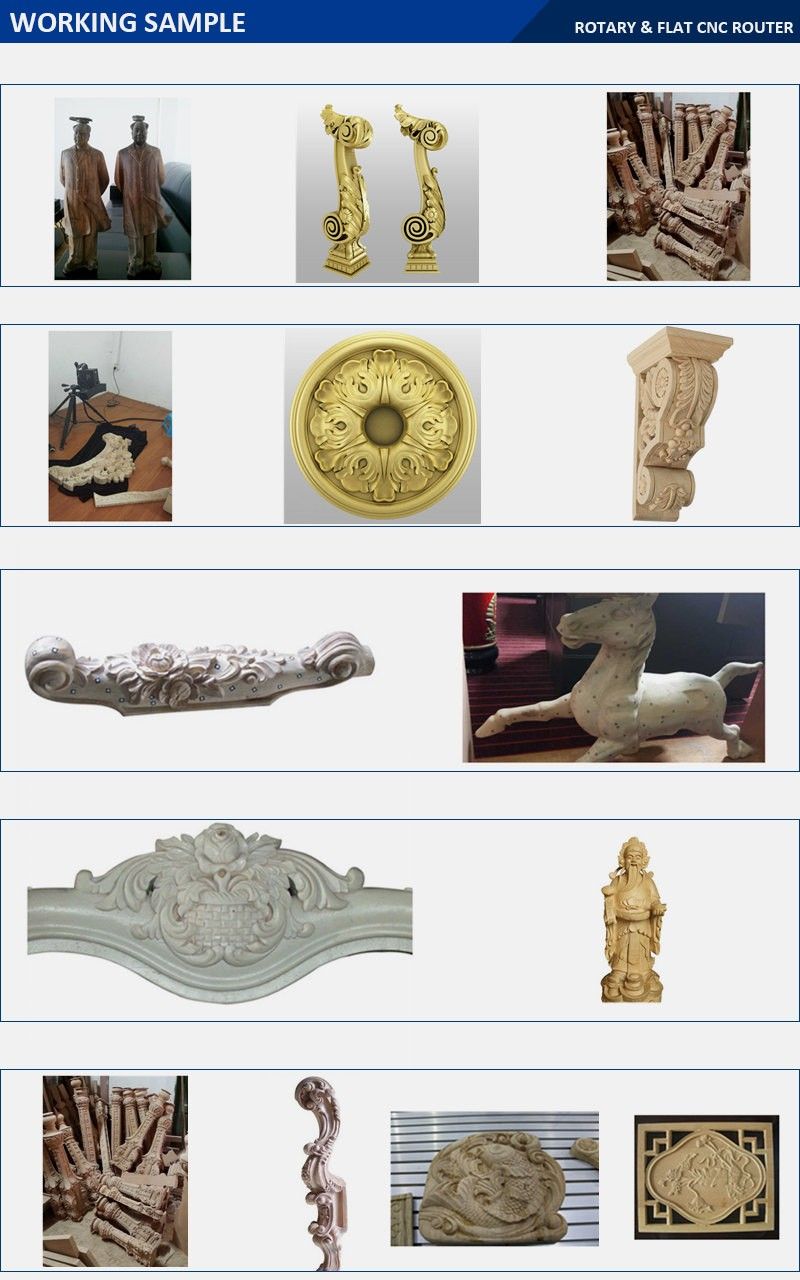

Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:

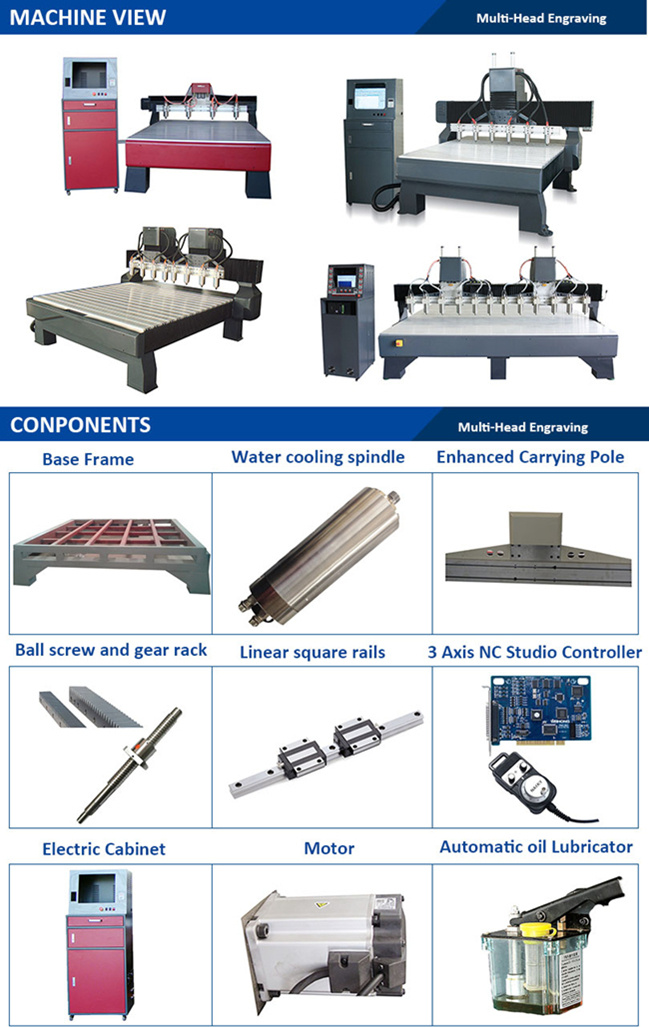

Details:
1.Base Frame:The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2.Multiple Cooling Spindle:Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc;We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz.Tools diameter are 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3.Ball Screw:High accuracy ball screw for Z axis, quality TBI Anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.The combination of ball screw and gear rack offers accuracy and high speed machining.
4.Gear Rack and Linear guide:We use precision gear racks for XY AXIS, PMI linear guide rails for XYZ axis, carefully installed and regulated by experienced worker with special purpose instrument, and this assures smooth motion and long term reliability.
5.NC Studio 4 AXIS Controller:74A model.PC based NC Studio Controller with friendlier
Human& machine interface/HMI, fully executed with computer.It well realizes high-speed and high-precision motion control.
6.Rotary Axis:Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters;We can put different number of rotary axis according to specified requirement.
7.Motor and Driver:We use high accuracy stepper motor drivers for small size rotary machine;Each stepper motor supports each rotary device.For big size machine, we use 6 sets of Panasonic servo motors and drivers, including 2 sets support 8 rotary, 2 motors for Y axis, 1 motor for X axis, 1 motor for Z axis.
8.Central oil Lubricator:Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
9.Control Cabinet:All the electrical components are housed and wired in a mobile, double door electrical enclosure.This allows for easy access and service when needed.Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
10.4 AXIS Software:You can use power-mill software to make processing of 3D files
, which was scanned with 3D scanner.We can make 4 axis movements, AXYZ axis
Can move at the same time.
Optional:
1.3D Scanner:A fast and easy to operate device for massive production based on complicated three-dimensional samples.Good for woodworking, small molds, plastic products, shoe last and soles mold, sculpture, artifacts, toy, tooth, jewelry design, core carving, fine pieces design, small toy parts, etc.
2.Nebulizer Cooling System:It sends oil mist to machining surface, it is important for tool cooling and lubricating.
>>Contact us:
If you want to get more information, please feel free to contact us.
Contact person: Niki Zhao
Contact number: 0086-551-65774134 / 18855309105
Features:
1. Heavy duty machine body, thick steel tube welding structure, ensures stable work and high accuracy.
2. FR series CNC router is professional in making 2D and 3D engraving jobs. Multiple spindle and rotary axes can process on cylinder materials as well as flat ones with high efficiency.
3. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.
4. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
5. Big size with more heads (up to 16 heads) can be customized.
Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:
| Model | VCT-1518W-4H | VCT-2013W-6H | VCT-2530W-8H | VCT-3230W-2Z-12H |
| Machine Dimension | 2100x2400x1900mm (6.89x7.87x6.23ft) | 2600x1900x1900mm (8.53x6.23x6.23ft) | 3100x3600x1900mm (10.17x11.81x6.23ft) | 3800x3600x1900mm (12.47x11.81x6.23ft) |
| Working Size | 1500×1800×180mm (4.9×5.9×0.59ft) | 2000×1300×180mm (6.56x4.26x0.59 ft ) | 2500 x 3000 x 200mm (8.2x9.8x0.67 ft) | 3200 x3000 x200mm (10.5x9.8x0.66ft ) |
| Spindle Power | 2.2KW×4PCS | 2.2KW×6PCS | 2.2KW x 8PCS | 2.2KW x 12PCS |
| Motor & Driver | Leadshine Hybrid Servo Motor | Leadshine Hybrid Servo Motor | Schneider / Panasonic servo motor 1KW | Schneider / Panasonic servo motor 1KW |
| Tool Diameter | 4,6, 8, 12mm | |||
| Body Structure | Thick steel tube welding | |||
| Transmission | XYZ high accuracy TBI ball screw(gear rack is optional) | XY axis gear rack, Z axis high accuracy TBI ball screw | XY axis gear rack, Z axis high accuracy TBI ball screw | XY axis gear rack, Z axis high accuracy TBI ball screw |
| XYZ Guiding Rails | Original Taiwan PMI square rails | |||
| Machining Accuracy | <0.03/300mm | |||
| Maxi Engraving Speed | 8000mm/m | 12000mm/m | 15000mm/m | 15000mm/m |
| Spindle Speed | 6000~24000rpm | |||
| Controller | Original 3 Axis NC Studio controller with handle wheel (connect with PC directly) | |||
| Supporting file Format | G code or HPGL | |||
| Voltage | AC220V/50HZ or 380V/60Hz | |||
| Weight | 800KG | 1300KG | 2500KG | 3000KG |
| Packing size | 2.45x2.6x2m 12.74CBM | 2.85x1.95x2m 11.12CBM | 3.2x4x2.2m 28.16CBM | 4.2x4x2.2m 36.96CBM |
1.Base Frame:The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2.Multiple Cooling Spindle:Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc;We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz.Tools diameter are 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3.Ball Screw:High accuracy ball screw for Z axis, quality TBI Anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.The combination of ball screw and gear rack offers accuracy and high speed machining.
4.Gear Rack and Linear guide:We use precision gear racks for XY AXIS, PMI linear guide rails for XYZ axis, carefully installed and regulated by experienced worker with special purpose instrument, and this assures smooth motion and long term reliability.
5.NC Studio 4 AXIS Controller:74A model.PC based NC Studio Controller with friendlier
Human& machine interface/HMI, fully executed with computer.It well realizes high-speed and high-precision motion control.
6.Rotary Axis:Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters;We can put different number of rotary axis according to specified requirement.
7.Motor and Driver:We use high accuracy stepper motor drivers for small size rotary machine;Each stepper motor supports each rotary device.For big size machine, we use 6 sets of Panasonic servo motors and drivers, including 2 sets support 8 rotary, 2 motors for Y axis, 1 motor for X axis, 1 motor for Z axis.
8.Central oil Lubricator:Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
9.Control Cabinet:All the electrical components are housed and wired in a mobile, double door electrical enclosure.This allows for easy access and service when needed.Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
10.4 AXIS Software:You can use power-mill software to make processing of 3D files
, which was scanned with 3D scanner.We can make 4 axis movements, AXYZ axis
Can move at the same time.
Optional:
1.3D Scanner:A fast and easy to operate device for massive production based on complicated three-dimensional samples.Good for woodworking, small molds, plastic products, shoe last and soles mold, sculpture, artifacts, toy, tooth, jewelry design, core carving, fine pieces design, small toy parts, etc.
2.Nebulizer Cooling System:It sends oil mist to machining surface, it is important for tool cooling and lubricating.
>>Contact us:
If you want to get more information, please feel free to contact us.
Contact person: Niki Zhao
Contact number: 0086-551-65774134 / 18855309105
| Prod Model: | VCT-1518W-4H |
|---|---|
| Markets: | North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
| 2D Working Size: | 1500×1800×180mm |
| Spindle Power: | 2.2kw×4PCS |
| Xyz Transmission: | Xz Tbi Ball Screw, Y Gear Rack |
| Controller: | 4 Axis Nc Studio Controller( Use Computer to Contr |
| Spindle Speed: | 6000~24000rpm |
| Driver: | 7PCS Stepper Motors |
| Tool Diameter: | 4, 6, 8, 12mm |
| Voltage: | 380V/60Hz or 220V/50Hz |
| Net Weight: | 1300kg |
| Spindle Layout: | Vertical |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
