Zhejiang Qianxi Vehicle Co., Ltd. >> Cheap Metal Folding Chairs with Ce

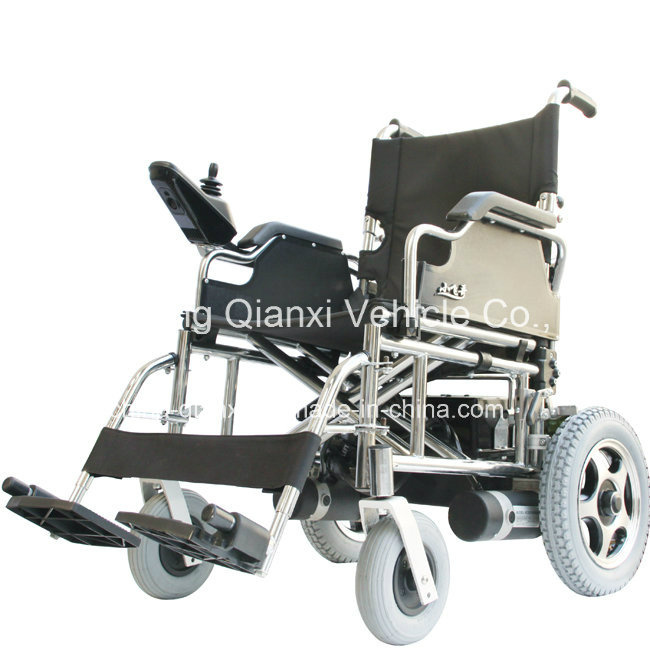

Cheap Metal Folding Chairs with Ce
| Price: | US $ 480-590/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
1.Electric wheelchair application
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around, lying down.
2.Electric wheelchair specification:
| Item No. | XFG-102FL | XFG-103FL | XFG-104FL | XFG-105FL | XFG-107FL | XFG-112FL |
| Motor | 24v/200w*2 | 24v/300w*2 | 24v/300w*2 | 24v/300w*2 | 24v/300w*2 | 24v/250w*2 |
| Battery | 12v20ah*2 | 12v28ah*2 | 12v38ah*2 | 12v38ah*2 | 12v28ah*2 | 12v12ah*2 |
| Charger | Ac100-240v 50/60hz Output: 24v 3A | Ac100-240v 50/60hz Output: 24v 4A | Ac100-240v 50/60hz Output: 24v 5A | Ac100-240v 50/60hz Output: 24v 5A | Ac100-240v 50/60hz Output: 24v 4A | Ac100-240v 50/60hz Output: 24v 1.8A |
| Loading capacity | 110kgs | 110kgs | 120kgs | 120kgs | 120kgs | 110kgs |
| Climbing ability | 10° | ≥10° | ≥12° | ≥12° | ≥12° | ≥6° |
| Driving distance | 14km | 25km | 25km | 25km | 25km | 10km |
| Seat | 410*460mm, Foldable, Width can be customized | 410*460mm, Foldable | 460*470mm, Width adjustable, 135°lie low, Foldable | 490*460mm, Width adjustable, Seat 360°rotate, 180°lie low, Foldable | 410*460mm, Width Adjustable, Foldable | 410*460mm, Foldable |

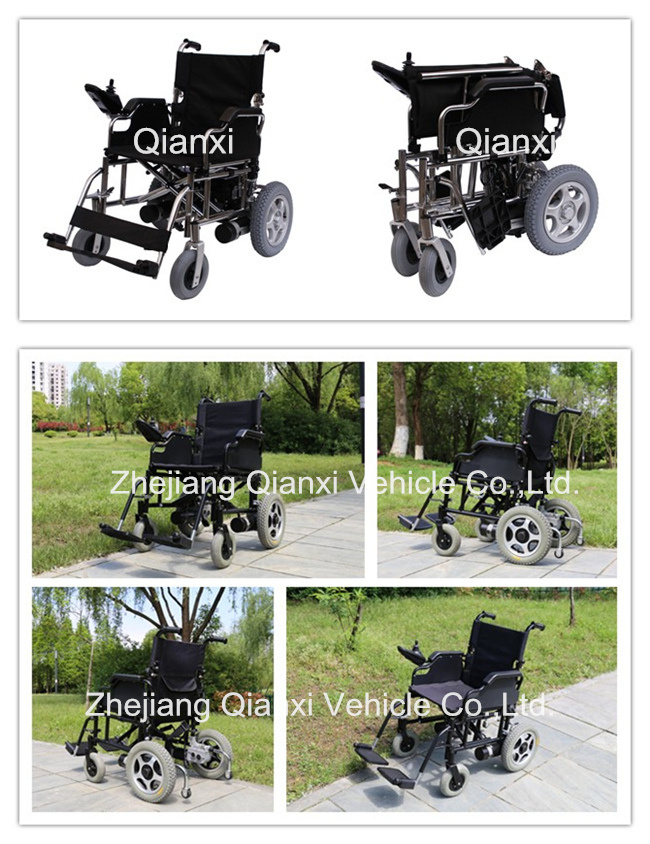

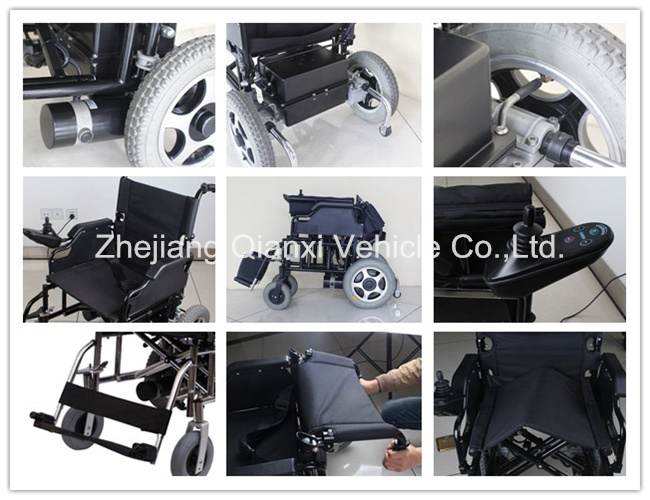

3.Electric wheelchair parts images:

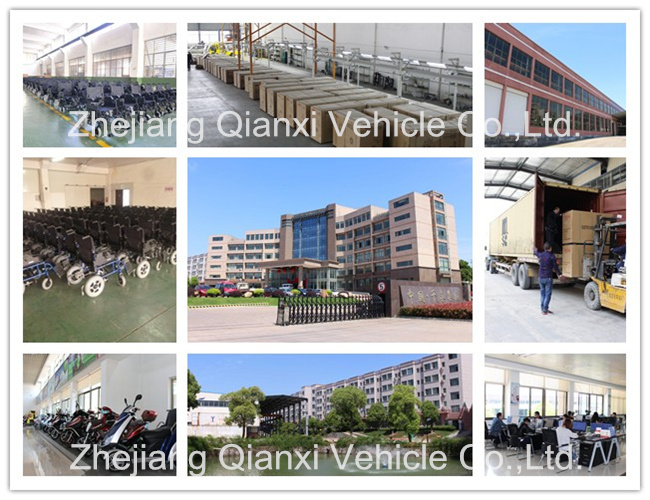

4.Our factory:
5.Certificate:
Factory:ISO9001:2008 standard
Products:All electric wheelchairs have been reviewed against the slef declaration requirements of conformity for ce marking according to annex 1 & 4 of the 93/42/eec medical device directive (including 2007/47/ec).
6.Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours
2.We own passional sales & after- sale services who can speak fluent english language
3.We offer oem services.Can print your own logo on product , can customize the retail box packing and other things.
4.We have very experienced engineers and we help you better use our products.
| Prod Model: | XFG-103FL |
|---|---|
| Motor: | 300W*2 Brush |
| Forward Reverse Speed (Adjustable): | 0-6km/H |
| Rear Wheel Size: | 12 1/2" |
| Front Wheel Size: | 200*50mm/8*2" |
| Anti-Tip Wheel: | 50*25mm/2*1" |
| Turning Radius: | 600mm |
China Leading Professional Electric Vehicle Manufacturer --Zhejiang Qianxi Vehicle Co., Ltd. Was established in 1996 as a subsidiary company of Qunsheng group Co., Ltd; Specialing in electric bike/electric scooter/electric wheelchair/mobility scooter/electric tricycle/e-bike/golf cart/gasscooter/hybrid scooter/electric car.
As a leading electric vehicle manufacturer in China, We have two main production base with more than 200, 000 Square Meter. Located in Zhejiang and Tianjing.
We possesses more than 30 modernized automatic production lines which covering:
Hardware Branch, Frame Branch, Rim and Wheel Branch, Smart charger and CPU controller Branch, ABS system Branch, Painting Branch, Module Branch and Assembly Branch. So the quality of each product can be controlled strictly according to ISO9001 and clients high requirement. Each vehicle motor, frame and controller have one unique serail number to guarante each model more reliable and trackable.
With more than 600 employee and 280 permanent high-class engineers and technicans ensure our annual output of electric vehicle more than 500, 000 pieces with hi-quality.
We pay high attention to R&D. With Shanghai FLYBROTHER TECHNOLOGY Center and factory Test Center established, offering strong support for existing products and new products improvement and development. Till now, we developed more than 50 serials and 1000 new products with 11 National Patents. The output power of brushless motor can reach 370W, which is the leading in the industry. In 2006, we are honoured to be the first private enterprise in Jinhua City, who carry out China NATIONA 863 Focus Projecet ( Smart electric wheelchair and relative research)
Our company is the credit standing member of Chinese Bicycle Association. We won the prizes of "The Top 500 Private Enterprises in China", "Top Tax-Payer" and "AAA Enterprise".
Our company has passed the evaluations of ISO9001, CE UL, EEC EN15194 certifications and won the prizes of "China Famous Brand" "Credit standing brand" and "Gold-Medal Products".
Our sales network has spread into more than 20 provinces, municipalities and autonomous regions in the whole country. Moreover, our products sell very well in over 20 countries and regions in the world, such as Japan, the USA, Korea, Spain and Italy. Welcome all kinds of OEM or ODM project and co-operation, please feel free to contact us now for professional service.
