| Prod Model: |
TCK32 |
| Max Swim Over Bed Diameter: |
420mm |
| Spindle Bore: |
56-62mm |
| Motor Power: |
5.5kw |
| Spindle Speed: |
1-4000rpm |
| CNC Controller: |
GSK, Siemens, Fanuc |
| Machine Bed Type: |
Slant Bed CNC Lathe Machine |
| Travel: |
X 240mm, Z 300mm |
| Linear Guide Width: |
30mm |
| Turret Type: |
Gang Type Tool Carrier |
| Lighten System: |
LED |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Point to Point Control |
| Control Method: |
Open-Loop Control |
| Performance Classification: |
High-End CNC Machine Tools |
| Numerical Control: |
CNC |
Product Description

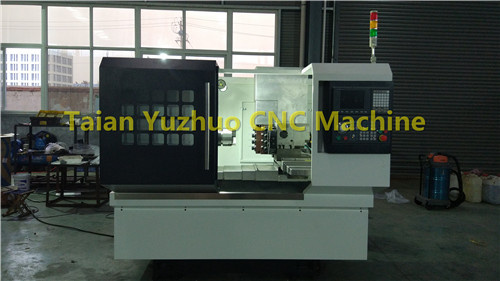

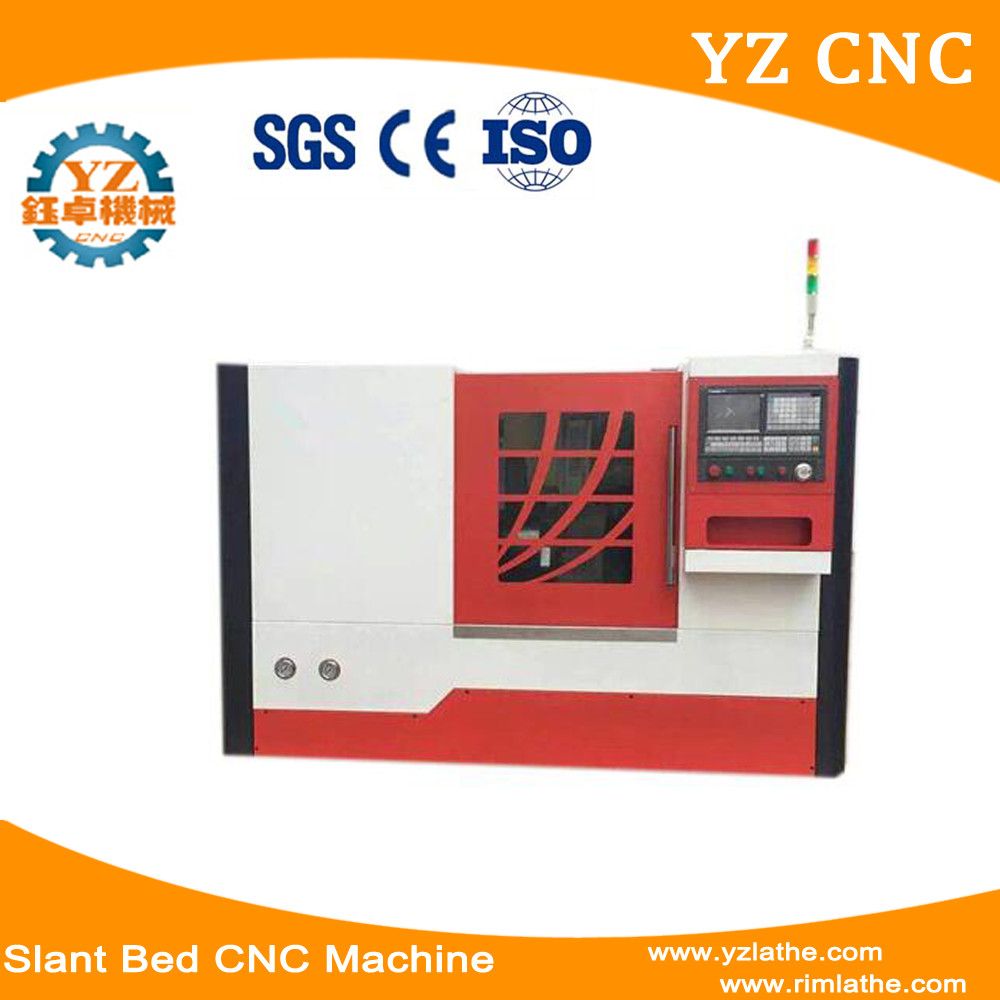

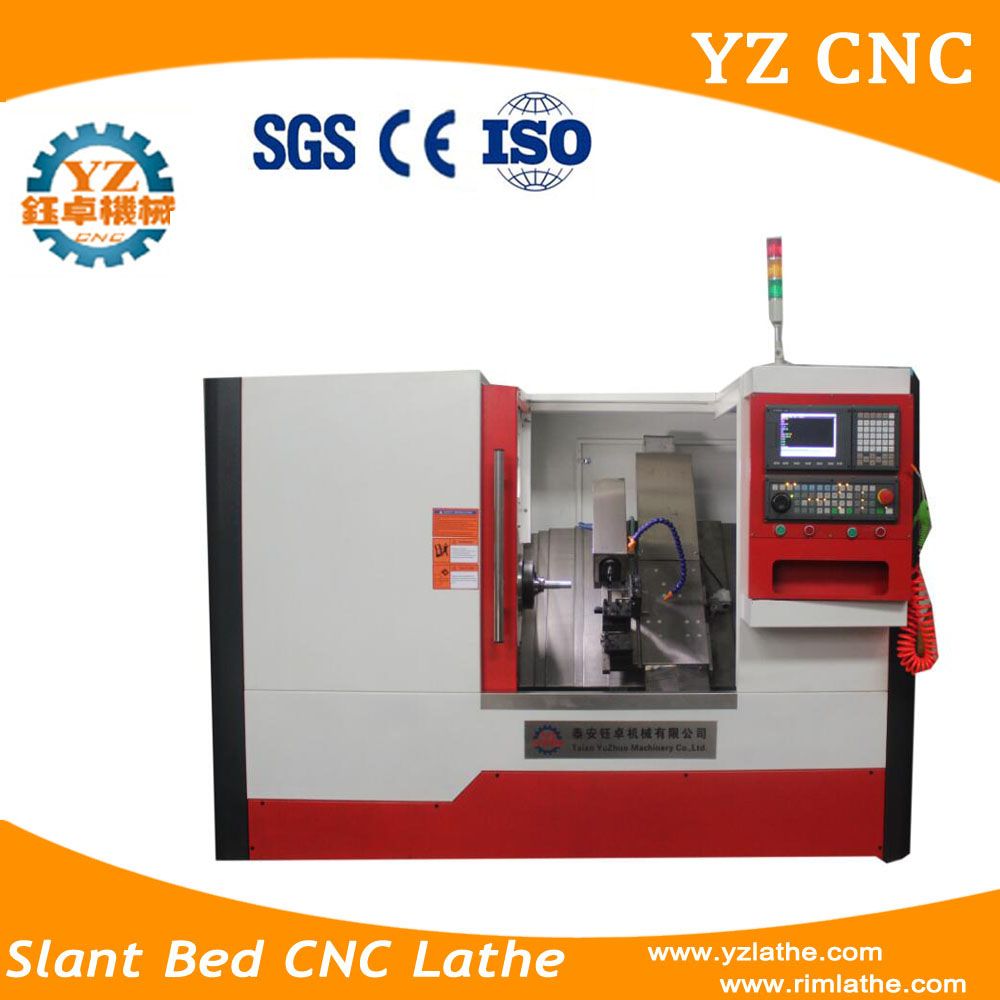

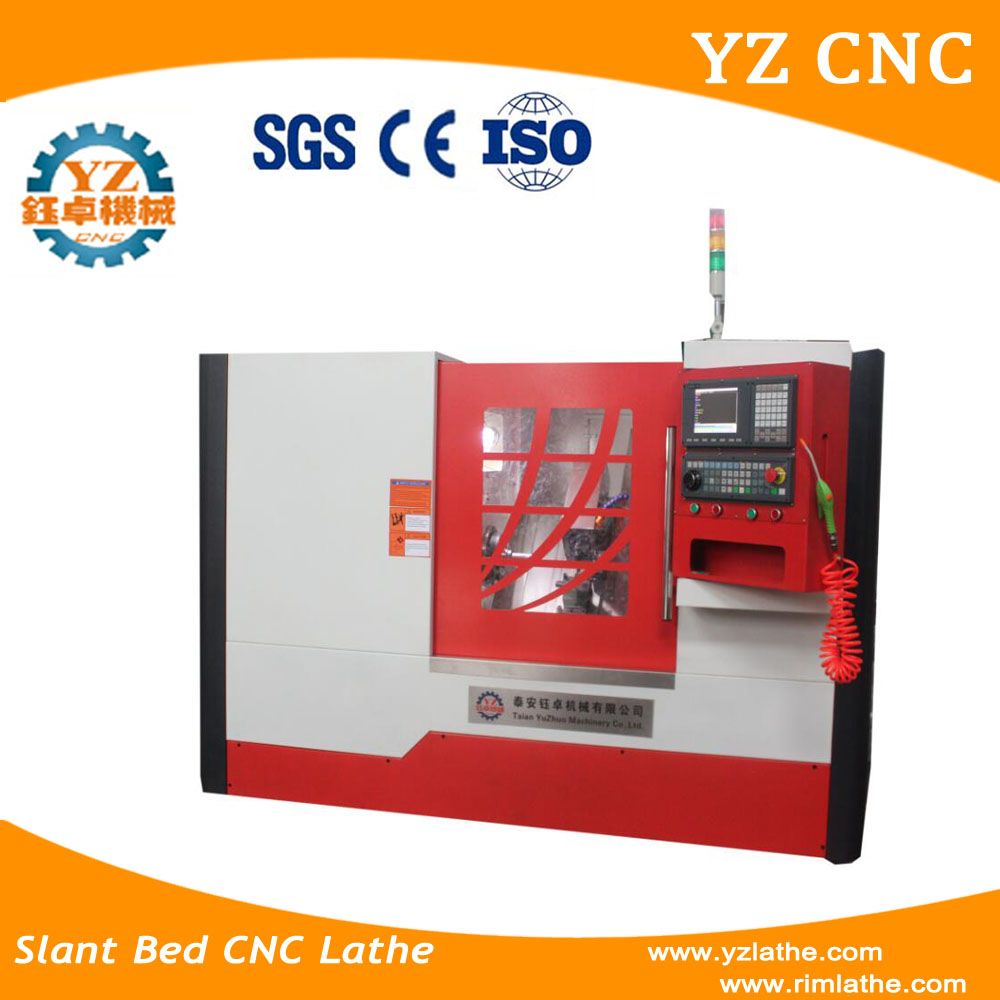

China Cheap CNC Machine Lathe Milling Composite Function Slant Bed
| Model | Unit | TCK42A | TCK42B | TCK42C |
| Max swim over bed diameter | Mm | 420 |
| Max swiming diameter over slide | mm | 160 |
Travel
|
mm
| X:240 | X:240 | X:220 |
| Z:300 | Z:400 | Z:700 |
| Linear guide width | mm | 30 | 30 | 45 |
| Spindle Head Model | | A2-5 | A2-6 | A2-6 |
| Turret Type | gang type tool carrier |
| Spindle bore | mm | 56 | 62 | 62 |
| Spindle speed | rpm | 4000rpm |
| Motor power | kw | 5.5 | 7.5 | 7.5 |
| Cutting speed | mm/min | 1-4000 |
| Positioning accuracy | mm | 0.008/300 |
| CNC Controller | Siemens 808D |
| Cooling system | MC-4000/ACP-251A |
| Automatic system | 2232X |
| Lighting system | LED |
| Machine size | mm | 2000x1400x1700 |
| Weight | kgs | 1950kg |
| Standard Configuration |
1.CNC system :Siemens 808D

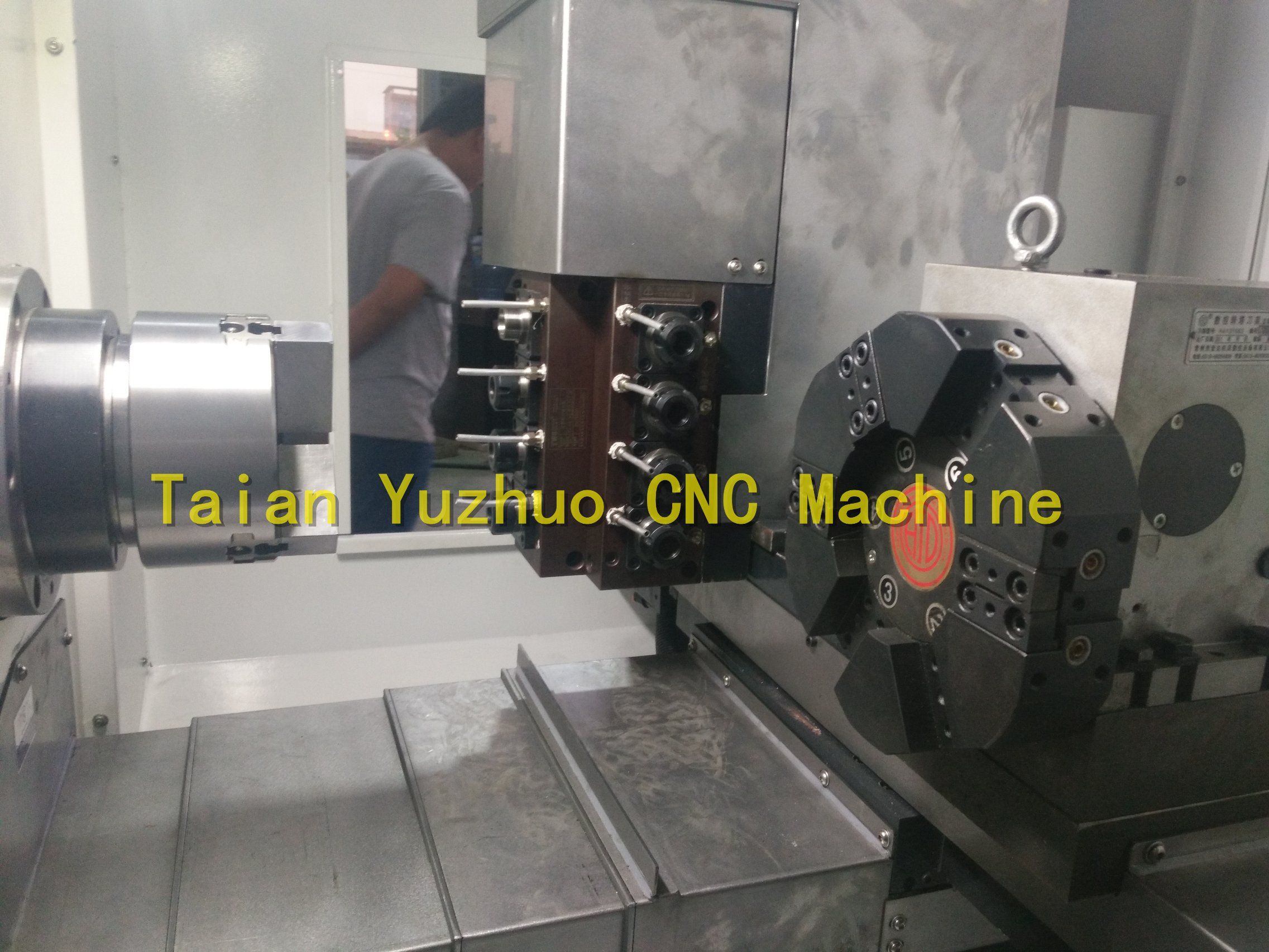

2.Gang type tool carrier
3.Automatic lubrication pump
4.Manual 3-jaw chuck
5,Slant Bed Type
6.Auto lubrication system,coolant system,lighting system
7.Standard tools box
8.Standard packing list
9.Operational manual
10.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance) |
Select configure
CNC system:KND, Siemens, Fanuc, etc.,
Hydraulic chuck (solid and hollow), pneumatic chuck,
Hydraulic tailstock, pneumatic tailstock,
Automatic feeder,
Horizontal six-station turret, eight-station turret, tool row,
The spindle center height increase. |
CNC series CNC turning center is a professional processing: Bearing; motor cover; gear economical, practical machine tools, a fixture all types of both ends of the plate parts molding process; it is the largest amount of domestic use, the most extensive coverage of a CNC machine tools, machining widely used in the automobile, petroleum, military and other industries. machine complete varieties and specifications in the series, you can achieve internal and external surface of the disk type and short shaft type parts, conical, arc, thread, boring, reaming, can also be achieved non-circular curve processing. According to the needs of users, optional CNC systems and accessories.
Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
