China Floor Standing Mesh Door 19" Server Rack Cabinets
| Price: | US $ 30/Piece |
|---|---|
| Min Order: | 300/Piece |
| Pay Type: | L/C,T/T |

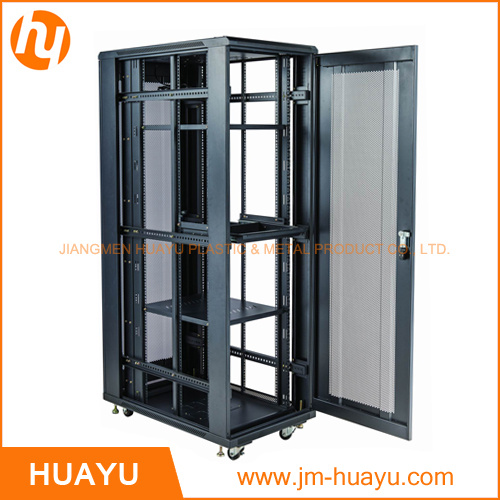

China Floor Standing Mesh door 19" Server Rack Cabinets
Product pictures:
Feature:
Exquisite design with precise craftsmanship;
Welded steel frame for front and back part, which can be flat packing, easy to transfer;
Arc shapedented vented front door with hexagonal holes,can turn over 180 turning degree:
Vented rear door with hexagonal holes;
Removable side panel wit latch, easy to install(optional lock);
Adjustable feet and castors are available simultaneously:
Cable entry on the top, adjustable cable entrance at the bottom with panel:
Advanced handle locks for front door, optional other lock;
S-shaped mounting profile, free to move forward and back;
Efficient baying kit of cabinet, earthing kit:
Optional plinth to fix cabinet on floor; under base cable entry:
Various optional Accessories for common using:
Unassembled packing, about 2/5 of original volume, save container space
Standard:
Comply with ANS/EIA RS-310-D,IEC297-2,DIN4149,PART1,DIN41491 PART7, GB/T3047.2-92 standard, ETSI Standard;
Loading Capacity:
Maximum loading:1400kg
Degree of protection:
IP20
PRODUCT DETAILS:
Product name : | Network cabinet |
| (1) Model No.: | HJD-6947 |
| (2) Size : | 600*900*2300MM |
| (3) Capacity : | 47 U |
| (4) Brand name : | Huayu |
| (5) Cabinet standard : | 19'' inch inner installation |
| (6) Material : | High quality SPCC cold rolled steel T:1.0-1.2mm |
| (7) Place of origin : | Guangdong China (mainland) |
| (8) Color : | Black, White or Gray (Special Color on Request) |
| (9) Packing : | Flat ,packing or assembled packing |
| (10) Loading capacity: | 500KG |
| (11) Thickness : | 1.0-1.5mm |
| (12) Installation : | 19'' inch inner installation |
| (13) Surface finish : | Degreasing,pickling,phoshating,phoshating, powder coating |
| (14) Delivery details: | 6 working days |
| (15) Packing: | (a) Film around the spareparts |
| (b) EPE corner protectors in the four corners of carton | |
| (c) High quality cartons with strip . |
| Prod Model: | HJD-6942 |
|---|---|
| Size: | 600 X 900 X 2300 mm |
| Maximum Load: | 1400 Kgs |
| Degree Of Protection: | IP20 |
| Suitable Standard: | Ans/Eia RS-310-D,IEC297-2,DIN4149,Part1... |
| Type: | Server Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Fan Number: | Four |
| Certification: | ISO |
| Condition: | New |
| Capacity: | 47u |
