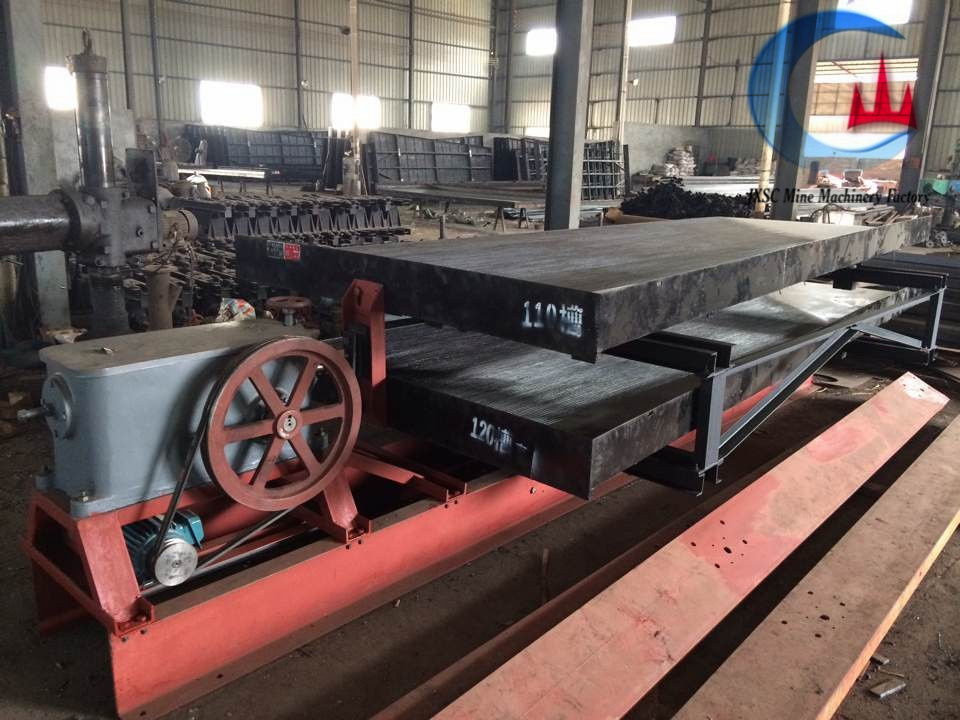

Chrome Ore Shaking Table, Double Shaker Table for Chrome Separation

Chrome Ore Shaking Table, Double Shaker Table for Chrome Separation
Price: US $ 3500/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: 6S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Mining Processing
Deck Size: as Requested
Motor Power: 1.1kw (as Request)
Benefication Area: 7.6 Sq. M
Installation: Drawings or Under Guidance
Deck Types: Course Ore Deck, Fine Sand Deck, Slime Deck
Set Up Video: Supply
Riffles Available: 46/60/88/120
Production Time: Available in The Stock
CE Certificate No: Cecs/1067 Md
Weight: 1T
Certification: SGS,TUV
Warranty: 1 Year
Customized: Customized
Condition: New
Type: Beneficiation Machinery
Voltage: Can Be Customized
Material Feature: Table Deck Material: Glass Fibre Reinforced Plasti
Color: Customized

Product Description

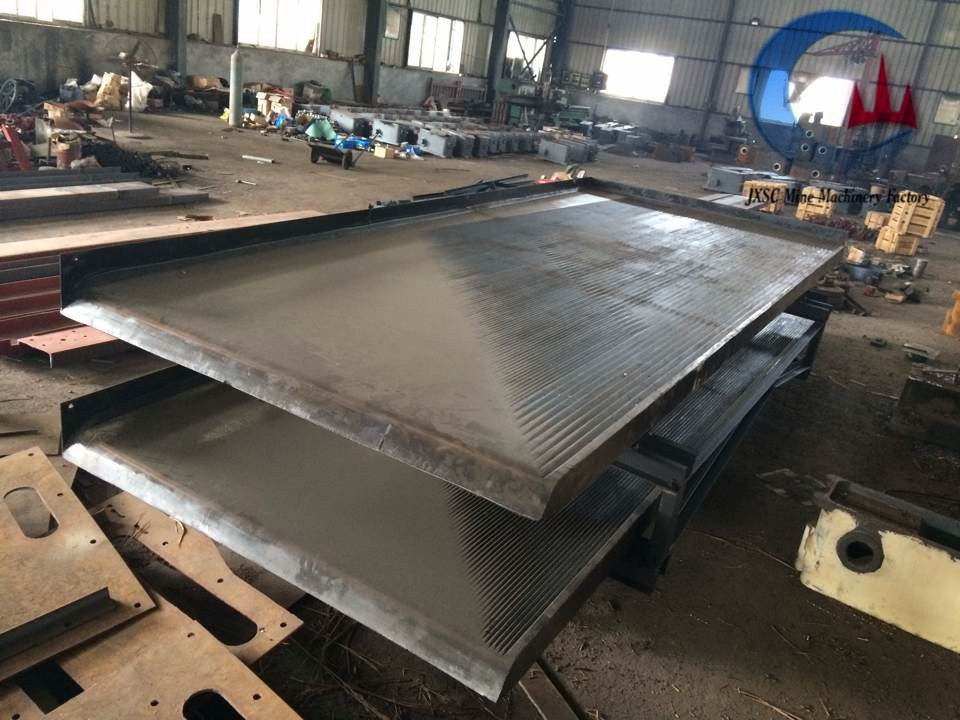

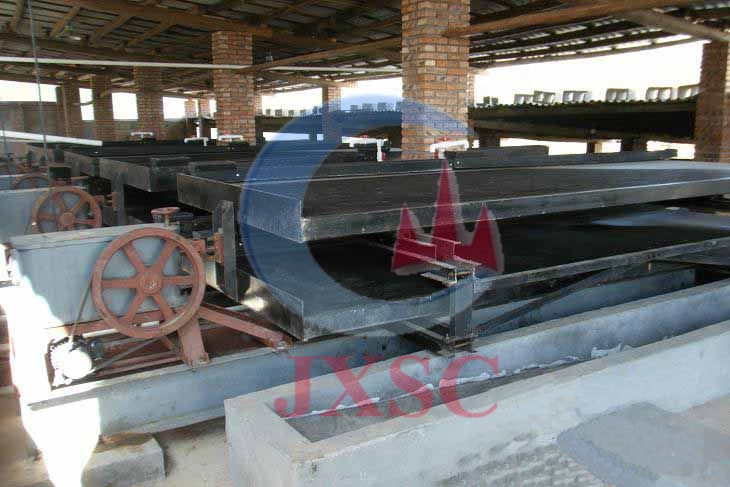

Double Deck Shaking Table Description:


Double deck shaking table is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal, coal and other minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.

It can carry out ore concentration operation independently and also can operate in conjunction with jig, spiral chute, centrifugal separator and other equipment. With smooth deck surface, wear resistance, and no deformation. The ore sand tables and ore slime tables can be chosen freely. Also the feed method can be chosen left side or right side. It's very convenient for site installation.



Double Deck Shaking Table Features & Advantages:

Double-deck Shaking table is a small investment table concentrator, which is one of our flagship mining machine with 30 years experiences.
Normally, it can up to 96% high recovery ratio, compared with traditional single deck shaking table, its obvious advantages are:

smaller operation area; larger processing capacity; lower investment cost and so on.



1), For the table deck:
According to customers' different feeding size, JXSC manufactured 6S Shaker Table also have three distinct deck designs can be chosen.
normally we call them Coarse sand deckFine sand deck and Slime deckwhich are 46/60/88/120/138 Riffles available


      The course deck is designed for recovering particles size from 0.5 mm to 2 mm;
      The fine deck is designed for recovering fine particles in the range of 0.1 mm to 1 mm;
      The slime deck is designed for recovering super extremely fine particles from 0.037 mm to 0.5 mm.



2), For the deck material:
The material of our table deck is called
Glass fibre reinforced plastic.

It is a new type of non-metal engineering material, with silicon carbide coating which has better wear resistance and longer working life.




Double Deck Shaking Table Specifications:





Model

Unit

DL4500/1850

DL3000/1320

Bed Size

mm

4500/1850/1560

3000/1320/1100

Stroke

mm

6-8

6-8

Frequency of stroke

/min

240-380

210-320

Slope

o

0-10

0-10

Feed size

mm

0.02-2

0.02-2

Feed density

%

10-30

10-30

Water

t/h

0.8-1.4

0.6-1.2

Power

kw

1.5

1.5

Capacity

t/h

2.5-3.5 (coarse sand)

2.5-3 (coarse sand)



t/h

1.6-2.5 (find sand)

0.8-2.5 (find sand)

Overall dimensions

mm

5600/1850/1560

4100/1320/1560

Weight

kg

1650

1550
