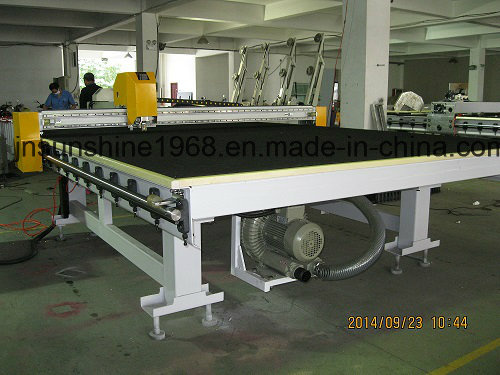

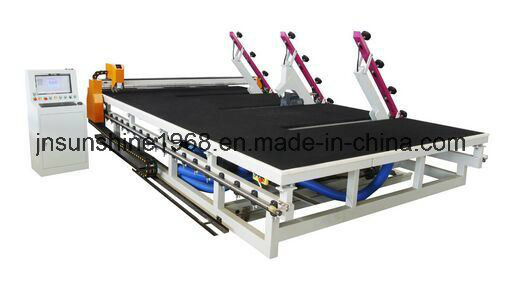

CNC Glass Cutting Machine Full Automatic CNC Glass Cutting Table
| Price: | US $ 10000-28000SET |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1SET |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
Multi-function CNC glass cutting table
YG-3826 Automatic Glass Cutting Table:
1. Technical Paramter"
Cutting Max. Glass Size: 3800*2600mm
Working bench height: 900± 50mm.
Weight(about): 2500kgs
Cutting thickness3~25mm
2. Cutting parameters
Straight line paralleism: ≤ ± 0.20mm/m
Diagonal accuracy: ≤ ± 0.35mm/m(Above accuracy subject to cutting line before breaking )
Cutting bridge speed0~160m/min. (adjustable)
Cutting bridge acceleration ≥ 3.0m/s²
Frame rate of cutting tools≥ 150m/min
Frame acceleration of cutting tools ≥ 6.0m/s²
Belt transmission speed ≥ 40m/min
Cutting head positioning accuracy ≤ ± 0.15 mm
3. Power & voltage:
Voltage: 380V/50Hz or customised
Power: 8KW
Air compressor: 0.6MPa
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Lucy
TEL: 0086 151 6904 2082
YG-3826 Automatic Glass Cutting Table:
1. Technical Paramter"
Cutting Max. Glass Size: 3800*2600mm
Working bench height: 900± 50mm.
Weight(about): 2500kgs
Cutting thickness3~25mm
2. Cutting parameters
Straight line paralleism: ≤ ± 0.20mm/m
Diagonal accuracy: ≤ ± 0.35mm/m(Above accuracy subject to cutting line before breaking )
Cutting bridge speed0~160m/min. (adjustable)
Cutting bridge acceleration ≥ 3.0m/s²
Frame rate of cutting tools≥ 150m/min
Frame acceleration of cutting tools ≥ 6.0m/s²
Belt transmission speed ≥ 40m/min
Cutting head positioning accuracy ≤ ± 0.15 mm
3. Power & voltage:
Voltage: 380V/50Hz or customised
Power: 8KW
Air compressor: 0.6MPa
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Lucy
TEL: 0086 151 6904 2082
| Prod Model: | YG-3826 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | 18months |
| Certificate: | CE/SGS |
| Voltage: | 380V or Customized |
| Max. Glass Size: | 3800X2600mm or Customized |
