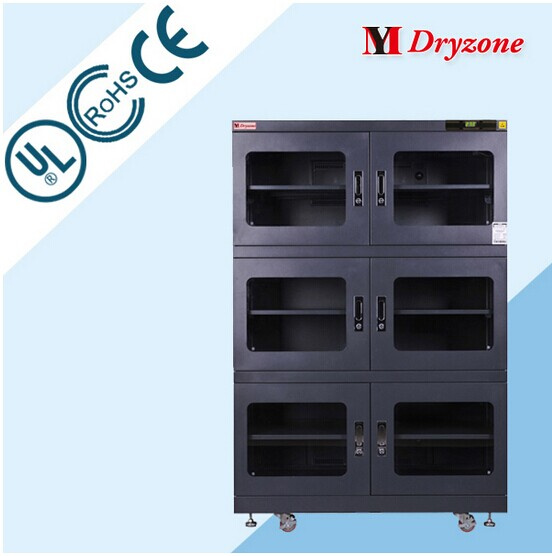

Desiccant Dry Cabinet C20-1490-6

Desiccant Dry Cabinet C20-1490-6
Price: Negotiable/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: C20-1490-6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Any Size Can Be Customized
Usage: SMT Production Line
Type: ESD Shelf
Material: Metal

Product Description

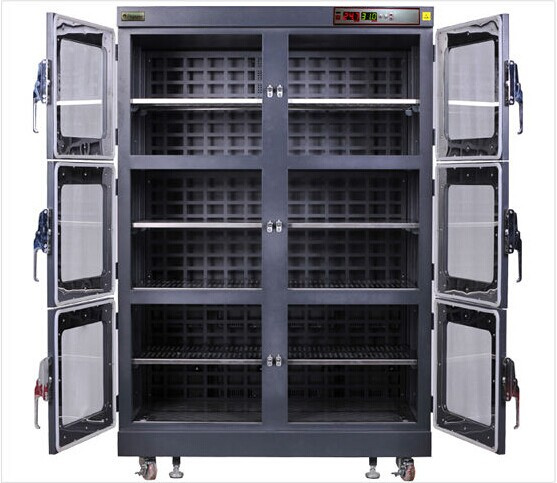

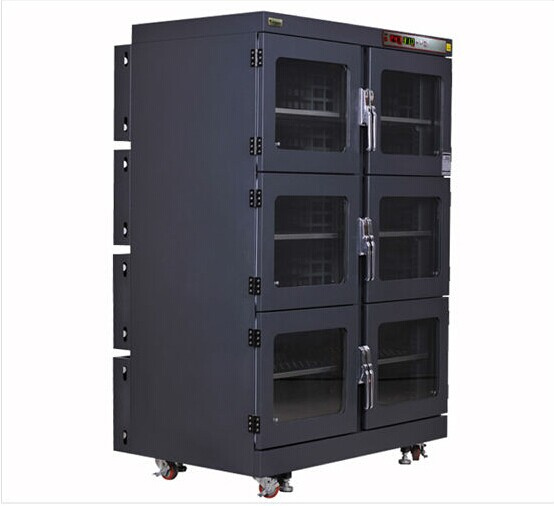

Dryzone Moisture control Desiccant ESD dry cabinet for IC chips storage

C20-1490-6  Desiccant dry cabinet is equipped with a precise LED control, which has ±3%RH precision tolerance. It is especially designed with adjustable humidity control 20~50%RH to prevent any kinds of moisture damages. This cabinet is the perfect storage for SMT/BGA/PCB/LED components. The newly innovated design greatly increases dehumidifying system, which runs faster and much more powerful compare to those of traditional ones. Hence, it decreases the defective rate at e.



 Desiccant dry cabinet

NameDesiccant dry cabinet
BrandDryzone
ModelC20-1490-6
Humidity Range:20~50%RH (adjustable)
External Dimension:W1200*D695*H1820mm
Internal Dimension:W1198*D645*H1618mm
Capacity:1250L
Shelves:5 shelves
Color:white
Voltage:110V/230V (please advice your voltage when placing orders)
Display Precision Tolerance:±1°C, ±3%RH
Cabinet Structure:1mm thickness carbon steel with antistatic paint.
Doors/windows:Handles, airtight magnetic sealers and tempered glass.
Wheels:4 antistatic 3" wheels, 2 of them with brakes.
Grounding Wire:1MΩ. (940mm long)
ESD Paint:106~109Ω. (surface resistance)
Power Consumption:Ave. 9.5W; Max. 145W


Products showing :



Humidity:1-50%  or 20% -50%  two choice
Size: Any size can be customized
CeritificateCE/UL/RoHS/ISO approved

Zhejiang Sanwei Anti-Electrostatic Equipment Co., Ltd., Was established in 1988, it is a "High-tech and New Company in Zhejiang Province", China's anti- static units Association, and "the contract and keeping promises units". We have drafted and formulated the General Specifications for Electrostatic Circulation Containers (SJ/T11277-2002), and we participated in the modification work of Requirements for Electrostatic Discharge Protected Area (GJB3007-1997) and General Specification of Testing Method for Electrostatic Protection in Electronic Production Manufacturing and Using System (SJ/T10694 ). Our company is the important ESD anti-electrostatic equipment and material researching and producing base in China.

3W's development and production of anti-static products have gained dozens of independent intellectual property rights, of which the material which can tolerant 200 deg. C temperature gained State of invention patents, a large number used in SMT rack, etc. It has reached the international lead level. At the same time an international leader in clean white-permanent anti-static materials (tolerant temperature at 160 deg. C) widely used in high-end semiconductors, aviation, aerospace, chemicals, and electronics fields. Which were large-used and confirmed Intel, Motorola, Siemens, IBM, Panasonic, Nokia, DELL and other large enterprises.
