| Prod Model: |
YTST-126 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Size: |
600*350*600mm |
| External Size: |
1700*2050*2320mm |
| Volume: |
126 Liters |
| Preheat Temp. Range: |
+200 Degrees |
| Precool Temp. Range: |
-60degrees or -75degrees |
| Test Temp. Range: |
+60degrees-- +150degrees |
| Temp. Fluctuation: |
+/- 2 Degree |
| Temp. Recovery Time: |
Within 5 Mins |
| Interior Chamber Material: |
SUS#304 Stainless Steel Plate |
| Exterior Chamber Material: |
Stainless Steel Plate + Powder Coated |
| Type: |
Impact Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC380V |
| Oil Cylinder Position: |
N/a |
Product Description

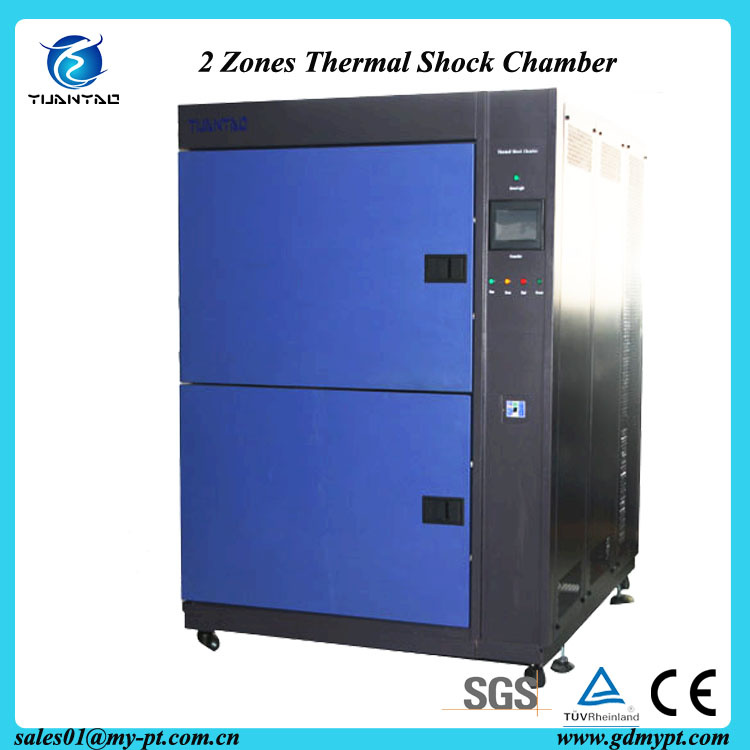

Double zones low temperature endurance test cabinet
Introduction&Application:
Double zones low temperature endurance test cabinet simulates the changed environment of high low temperature, which is used to detect the resistance ability of electronic, automobile, rubber, plastics, aerospace science and technology, military technology and advanced communication equipment and other products in the heat and cold conditon, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.
Feature:
1 Japan imported LCD touch controller.
2 Paperless record and display testing curve.
3 Powerful function and easy setting.
4 Cold and hot impact time in 10Mts.
5 Comply with MIL, IEC, JIS and other test standards.
6 Cold and heat shock temperature is recovered in five minutes.
7 HFC environment refrigerant.
8 Binary cryogenic refrigeration system design, fast cooling, high efficiency.
9 Best after sales service: One year free parts maintenance.
10 Meet international test standards.
11 Customization is available & welcomed.
Technical parameters:
Please see the label.
More details about the specification, please contact Angela Cheng, thanks for your attention.
Except Double zones low temperature endurance test cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
| Specification |
| Model | YTST-056 | YTST-087 | YTST-126 |
| Internal Dim.W×H×D(mm) | 400×350×440 | 500×350×500 | 600×350×600 |
| External Dim.W×H×D(mm) | 1500×2050×2120 | 1600×2050×2220 | 1700×2050×2320 |
| Pre-heat Limt | +200ºC |
| Pre-cool Limit | -60ºC -75ºC |
| Test Temp.Range | +60ºC-- +150ºC; -10ºC-- -50ºC; -10ºC-- -65ºC |
| Ferformance | Temperature Constancy | ±2ºC |
| Temp.Recover Time | Within 5 mins |
| Heat-up Time | ºC | 150 | 150 | 150 |
| min | 30 | 30 | 30 |
| Pull-down Time | ºC | -50 -65 | -50 -65 | -50 -65 |
| min | 90 90 | 90 90 | 90 90 |
| Material | Exterior | Stainless steel plate + Powder Coated |
| Interior | SUS # 304 stainless steel piate (Hairline Finish) |
| Insulation | PU & Fiberglasswool |
| Systems | Cirulation | sirocofan |
| Heating | stripped wire heater |
| Refrigeration | Compressor+Evaporator fins+water-cooling condenser |
| Controller | 1P |
| Other Components | Exper iment separation shelves(freely adjustable 2pcs) |
| Sevey Devices | No fuse breaker,Motor overload protection High/low pressure shut off device, |
| Open door operation prevention switch, Flow switch protector cooling water. |
| Power Source[K.W.] | AC 1Ψ 220V;3Ψ 380V 60/50Hz |
| 90 90 | 90 90 | 90 90 |
