Wuhan Hans Goldensky Laser System Co., Ltd. >> Dual Working Table for Hans GS Fiber Laser Cutting Machine

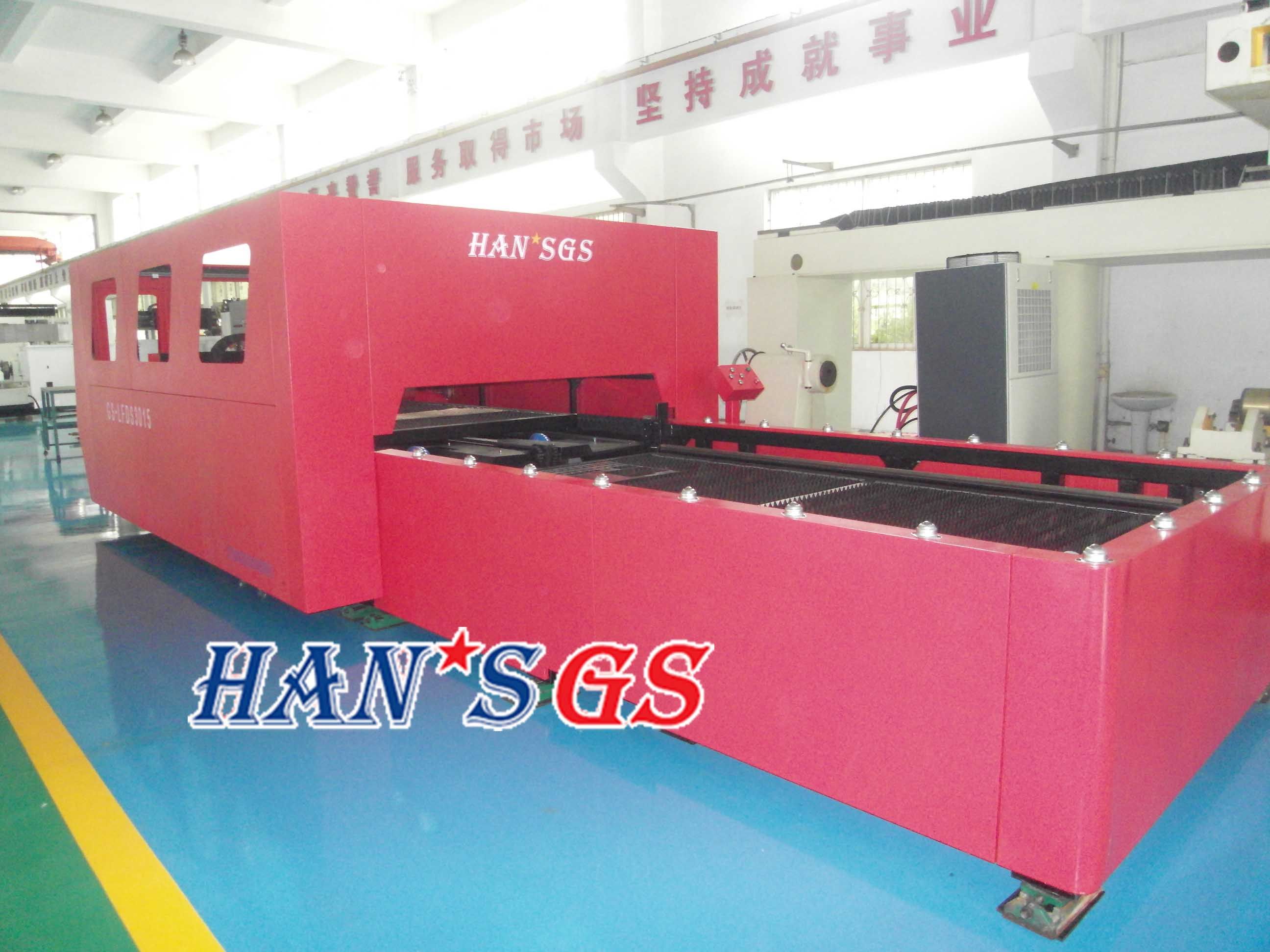

Dual Working Table for Hans GS Fiber Laser Cutting Machine
| Price: | US $ 69000-199000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
I. Company Profile
Han's laser
Han's Laser - Asia's largest, world-famous laser processing equipment manufacturer Named by Forbes as one of China's most potential enterprises for 4 years in a row (2005-2008).
< >The first listed company with laser as the main operation in China;With the largest output and sales volume of laser processing equipment in the world;National Pilot Innovative Enterprise;National Key High-tech Enterprise;National Torch Plan unit, 863 Plan Project unit;National Model Enterprise Focusing On Promoting Scientific and Technical Payoffs;Key Software Enterprises Under the National Planning.
Hans Goldensky Laser System Co., Ltd. is one of the four manufacturing base of Han's Laser Technology Industry Group Co., Ltd.
2.Description of machine

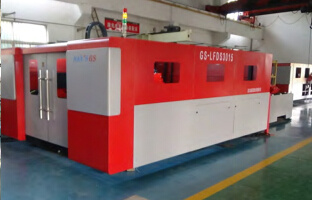

Laser cutting machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and highperformance CNC laser power system to process all kinds of metal sheet with high speed and efficiency. LFDS3015 Laser Cutting Machine's maxima cutting range is 3000x1500mm, it has the advantages of processing quickly, the product smooth edges, cutting, small kerf width and less heat effect, which is especially good performance on sheet metal processing.
Technical Data
3.Applicable Materials and Industry

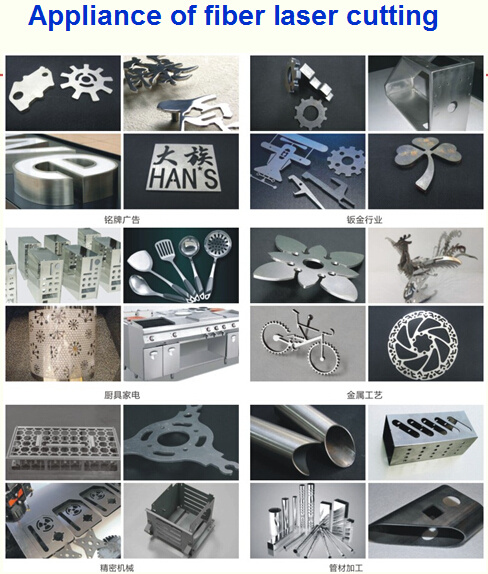

It is suitable for the cutting of stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum sheet, gold, silver, titanium, pipe and tube.
It has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.
4.The basic preparation for users
Users should provide good environments for equipments, such as placement without strong motion, clean and dry environment without dust, 15-350C for equipment working. Working power supply should be provided: three-phrase five-line power 380V/50HZ/60A.
5.The customer all over the world.
Experience nearly 20 years development and all of our teams hardworking,our laser machine have sent to Asia,America,Africa,Europe,Oceania.
What the customer need is what we should did!
Expecting you are the next one!
Han's laser
Han's Laser - Asia's largest, world-famous laser processing equipment manufacturer Named by Forbes as one of China's most potential enterprises for 4 years in a row (2005-2008).
< >The first listed company with laser as the main operation in China;With the largest output and sales volume of laser processing equipment in the world;National Pilot Innovative Enterprise;National Key High-tech Enterprise;National Torch Plan unit, 863 Plan Project unit;National Model Enterprise Focusing On Promoting Scientific and Technical Payoffs;Key Software Enterprises Under the National Planning.
Hans Goldensky Laser System Co., Ltd. is one of the four manufacturing base of Han's Laser Technology Industry Group Co., Ltd.
2.Description of machine
Laser cutting machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and highperformance CNC laser power system to process all kinds of metal sheet with high speed and efficiency. LFDS3015 Laser Cutting Machine's maxima cutting range is 3000x1500mm, it has the advantages of processing quickly, the product smooth edges, cutting, small kerf width and less heat effect, which is especially good performance on sheet metal processing.
Technical Data
| Model | GS-LFDS3015 | ||
| Laser source medium | Fiber | ||
| Cutting range(L*W) | 3000mm × 1500mm | ||
| Z axle stroke | 250 mm | ||
| Max positioning speed | 120m/min | ||
| X,X,Y axle Max accelerate speed | 1.2G | ||
| Cooling form | water cooling | ||
| Laser wavelength | 1070nm | ||
| Output power of laser source | 1000W~ 4000W(imported) | ||
| Min. cutting gap | ≤0.1mm | ||
| Positioning accuracy of X, Y and Z axles | ±0.03 mm | ||
| Repeated positioning accuracy of X, Y and Z axles | ±0.01mm | ||
| Drive model | Imported servo motor | ||
| Power requirement | 380V,50/60Hz | ||
| Working temperature | 5ºC-45ºC | ||
| Continuous working time | 24 Hours | ||
| Outer dimension | 8500mm x 3800mm x 2000mm | ||
| Total protection level of power supply | IP54 | ||
3.Applicable Materials and Industry
It is suitable for the cutting of stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum sheet, gold, silver, titanium, pipe and tube.
It has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.
4.The basic preparation for users
Users should provide good environments for equipments, such as placement without strong motion, clean and dry environment without dust, 15-350C for equipment working. Working power supply should be provided: three-phrase five-line power 380V/50HZ/60A.
5.The customer all over the world.
Experience nearly 20 years development and all of our teams hardworking,our laser machine have sent to Asia,America,Africa,Europe,Oceania.
What the customer need is what we should did!
Expecting you are the next one!
| Prod Model: | GS-LFDS3015 |
|---|---|
| Size: | 3000*1500 |
| Laser Source Medium: | Fiber |
| Laser Power: | 500W~1500W |
| Z Axle Stroke: | 100 mm |
| Max Positioning Speed: | 120m/Min |
| Max Height Of Feeding Material: | More Than 120mm |
| Laser Wavelength: | 1070nm |
| Repeated Positioning Accuracy Of X, Y A: | ±0.01 mm |
| Positioning Accuracy Of X, Y And Z Axles: | ±0.03 mm |
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
