Dajiang Lock Co., Limited >> Electric Latch Deadbolt Lock Drawer and Cabinet Door (MA1203S)
Electric Latch Deadbolt Lock Drawer and Cabinet Door (MA1203S)
| Price: | US $ 19.5-22/Piece |
|---|---|
| Trade Terms: | EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
Compact Cabinet lock (MA1203S) is a superior metal-constructed lock, ideal for drawers, display cases, cabinets and lockers with either swing or sliding doors. Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a Keypad or Card Reader. An optional microswitch provides an output signal for remote monitoring or external access system control. Electric Cabinet Lock (MA1203S) is compact, durable, secure and suitable for one or multiple cabinet drawer or locker applications.
Features
Zinc alloy with electrophoresis surface treatment
Fail Secure, Unlocked When Energized
Installation flexibility and alignment adjustment
Convenient mechanical override enables manual release during power failure
Optional internal microswitch for latch open/close output signal
Accepts access control signals from keypads and card readers
For swinging or sliding doors
Fitted to cabinets, display cased, lockers, and drawers etc
Specifications
Operation Voltage 12/24VDC intermittent ±10%
Power Consumption 300mA/150mA
Operation Mode Fail Locked
Holding Force 300KG
Cycle Rating More than 1,000,000
Working Temperature -20ºC ~ +60ºC

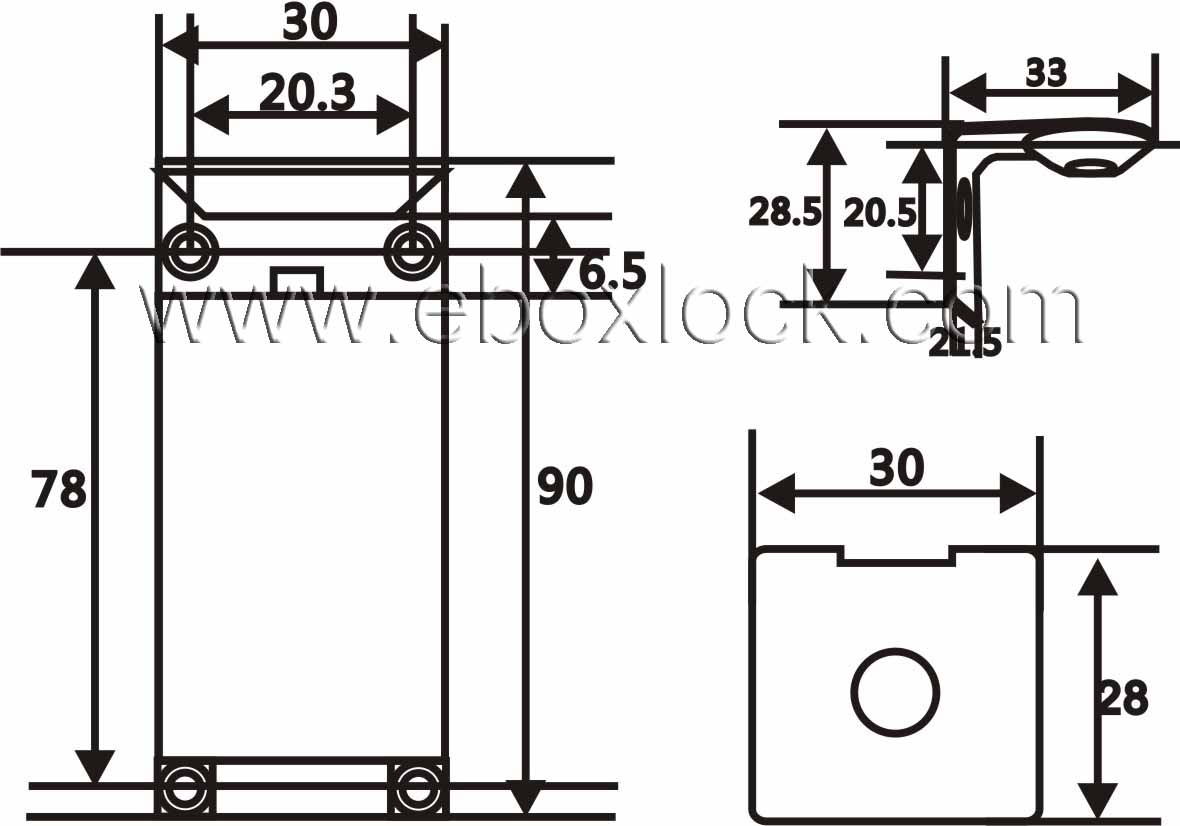

Dimensions LxWxH 91mm*28mm*30mm
Gross Weight 0.3kg
Protection Class IP20
Applications
The electric cabinet lock is ideal for various applications as following:
Electronic locker
Electronic locking control for steel furniture or metal cabinet
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and delivery locker
| Part No | Operating Current | Door Status Reporting | Work Way | Mechanical Override |
| MA1203 | 12VDC@300mA | Without | Fail locked | Without |
| MA1203S | 12VDC@300mA | With | Fail locked | Without |
| MA1203L | 12VDC@300mA | Without | Fail unlocked | Without |
| MA1203LS | 12VDC@300mA | With | Fail unlocked | Without |
| MA1203E | 12VDC@300mA | Without | Fail locked | With |
| MA1203ES | 12VDC@300mA | With | Fail locked | With |
| Prod Model: | MA1203S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Zinc Alloy |
| Usage: | Cabinet, Lockers and Steel Furniture |
