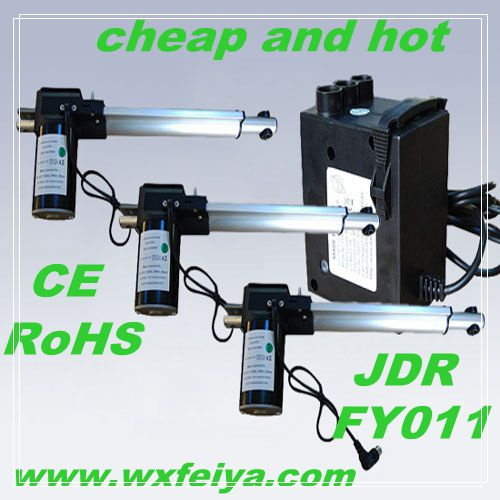

Electric Linear Actuator for Furniture Mechanisms (FY01 KITS)
| Price: | US $ 18/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Electric Motor
1) Used in furniture sofa, etc.
2) Built in switch
3) 12V or 24V DC power
3) CE, RoHS
Electric Motor
Specifications of FY011 Linear Actuator:
Name: Linear Actuator
Model: FY011
Input Voltage: 12V or 24V DC
Max Load Capacity: 6000N (600kgs)
Max Speed: 35mm/s
Standard Stroke: 50 - 800mm
Limit Switches: Inner
Type of duty: S2-10min
Operation Temperature: -26 Centigrade ~ 65 Centigrade
Protection Class: IP43
Usage: Electric Cabinet, Elctric TV Desk, Electric sofa, Massage Chair, Beauty Bed, Dental Chair, leisure sofa, etc.
Features:
Material: Aluminum and plastic
Color: Black
Warranty: Two years
Certification: CE/EMC+LVD
Details of the Linear Actuator, Linear Motor
Name:
Linear Actuator
Model:
FY011
Usage:
Electric Sofa, Elctric Bed, Massage Chair, Dental Chair, Beauty Bed, Leisure Sofa, etc
Input Voltage:
12V or 24V DC
Load Capacity:
750N, 1500N, 4000N, 6000N
Speed:
35mm/s, 18mm/s, 8mm/s, 4mm/s
Stroke:
50 - 1000mm
Standard Stroke:
150mm
Min. Installatioin Dimension:
Stroke+175mm
Type of Duty:
S2-10min
Protection Grade:
IP 43, for higher IP please confirm with us
Certificate:
CE/EMC+LVD, RO
1) Used in furniture sofa, etc.
2) Built in switch
3) 12V or 24V DC power
3) CE, RoHS
Electric Motor
Specifications of FY011 Linear Actuator:
Name: Linear Actuator
Model: FY011
Input Voltage: 12V or 24V DC
Max Load Capacity: 6000N (600kgs)
Max Speed: 35mm/s
Standard Stroke: 50 - 800mm
Limit Switches: Inner
Type of duty: S2-10min
Operation Temperature: -26 Centigrade ~ 65 Centigrade
Protection Class: IP43
Usage: Electric Cabinet, Elctric TV Desk, Electric sofa, Massage Chair, Beauty Bed, Dental Chair, leisure sofa, etc.
Features:
Material: Aluminum and plastic
Color: Black
Warranty: Two years
Certification: CE/EMC+LVD
Details of the Linear Actuator, Linear Motor
Name:
Linear Actuator
Model:
FY011
Usage:
Electric Sofa, Elctric Bed, Massage Chair, Dental Chair, Beauty Bed, Leisure Sofa, etc
Input Voltage:
12V or 24V DC
Load Capacity:
750N, 1500N, 4000N, 6000N
Speed:
35mm/s, 18mm/s, 8mm/s, 4mm/s
Stroke:
50 - 1000mm
Standard Stroke:
150mm
Min. Installatioin Dimension:
Stroke+175mm
Type of Duty:
S2-10min
Protection Grade:
IP 43, for higher IP please confirm with us
Certificate:
CE/EMC+LVD, RO
| Name: | Linear Actuator |
| Model: | FY011 |
| Usage: | Electric Sofa, Elctric Bed, Massage Chair, Dental Chair, Beauty Bed, Leisure Sofa, etc |
| Input Voltage: | 12V or 24V dc |
| Load Capacity: | 750N, 1500N, 4000N, 6000N |
| Speed: | 35mm/s, 18mm/s, 8mm/s, 4mm/s |
| Stroke: | 50 - 1000mm |
| Standard Stroke: | 150mm |
| Min. Installatioin Dimension: | Stroke+175mm |
| Type of Duty: | S2-10min |
| Protection Grade: | IP 43, for higher IP please confirm with us |
| Certificate: | CE/EMC+LVD, RoHS |
| Prod Model: | FY01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: | 6000 N |
| Color: | Black or Gray |
| Material: | Metal |
| Folded: | Folded |
| Certification: | RoHS,SAA |
