Electric Operating Table with High Quality (QDMD-129)
| Price: | Negotiable/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

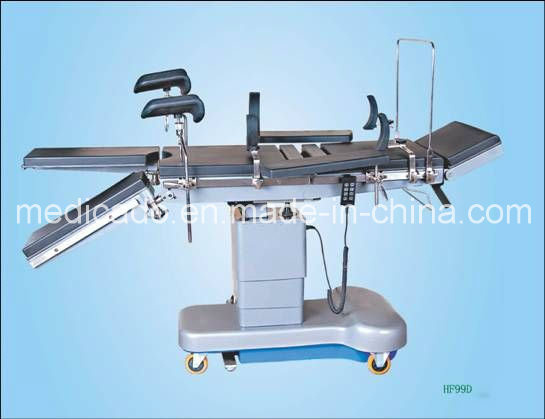

Electric Operating Table
(Multi-function orthopedic surgery equipment)
Model No.:QDMD-129
(Multi-function orthopedic surgery equipment)
Model No.:QDMD-129
Electric operating table features with integrated multi-function can fulfill the needs of various operations.The bed surface adopts high quality carbon plastic plate which is easily for conducting X-ray examination.The elevating of operating table is controlled according to electric hydraulic working principle by remote controller, other actions are pneumatic and mechanical controlled. The mattress is once foam molded by polyurethane with homogeneous force,easily cleaned and sterilized.The advantage motor without noise and with long life-span.
The base adopts high quality 304 stainless steel which can be easily cleaned and sterilized.
Foot treadle brake device which is easy for moving operating table.
Specifications:
Main Usage:
a) Electric operating table can be operated for clinical use.
b) Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system.
Depending on manual operation, the product can meet the requirement of posture in clinical operation.
Technicial Parameters:
1. Safe working load 135kg
Size:overall 2050mm*500mm
2. Dimension of table top:Overall Size 2050mm*500mm
3. Table top of from floor: Min Height. 580mm Max Heigh. 930mm Adujst. 350mm
4. Head Section: 250×500mm
5. Back Section: 465×500mm
6. Waist Section: 75×500mm
7. Seat section: 550×500mm
8. Leg Section: 600×240mm
9. Reversed Trendelenburg ≥20°
10. Trendelenburg ≥15°
11. Lateral Tilt ≥15°
12. Head Section 45°- 90°
13. Back Section 30°- 75°
14. Horizontal ≥90°
15. Leg section opened ≥90°
16. Kidney Bridge Elevated(Optional) ≥80mm
17. Restoring horizontal position(optional) ±2°
18. Lifting speed 4~16mm/s
19. Device safety sort I B
20. Ingress Protection:IPX4
21. Power :customized
22. Internal power : supply (DC) 24V
23. Battery capacity ≥ 2.4AH

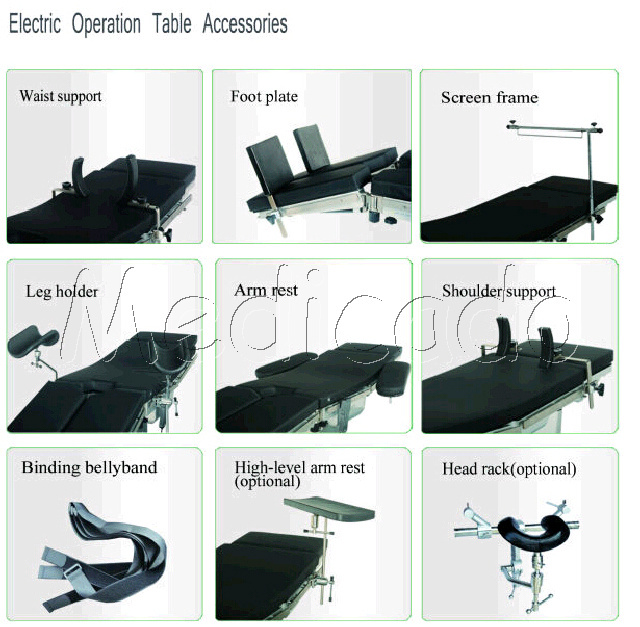

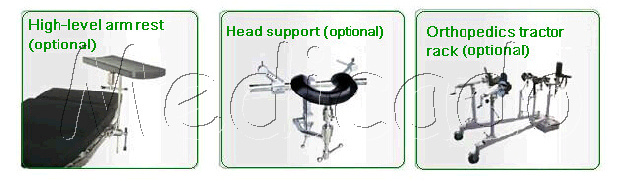

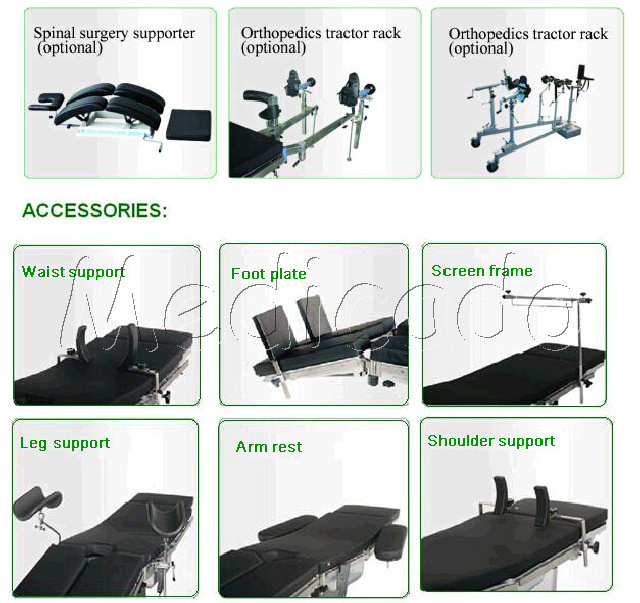

Accessories:
1)Anesthesia screen frame 1 set
2)Body strap 1 piece
3)Lateral support 1 pair
4)Should holder 1 pair
5)Leg holder 1 pair
6)Clamp 1 set
7)Arm rest 1 pair
8)Hand control 1 piece
| Prod Model: | QDMD-129 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall 2050mm*500mm: | Safe Working Load 135kg |
| Material: | Stainless Steel |
| Feature: | Reusable |
| Ethylene Oxide Sterilization: | Without Ethylene Oxide Sterilization |
| Application: | Hospital |
| Logo Printing: | with Logo Printing |
| Type: | Operating Table |
| Certification: | CE |
| Group: | All |
