Nova Elevator Parts Co., Ltd. >> Elevator Lift Parallel Serial Vvvf Control Cabinet

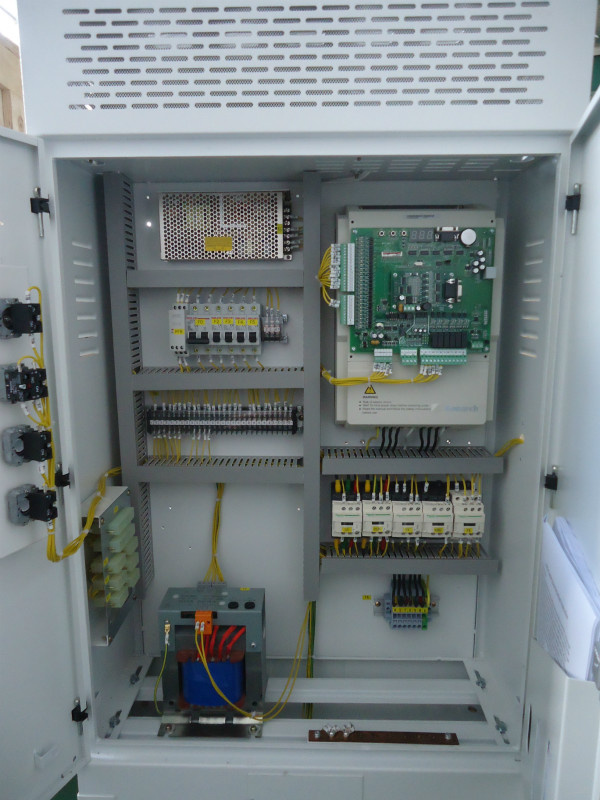

Elevator Lift Parallel Serial Vvvf Control Cabinet
| Price: | US $ 800-3000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
NV3000 Series Step Elevator Controller
1.380/400/415V, 3 Phase
2.220V Single & Three Phase
3.Optional cards & parts
Elevator Integrated Controller, Lift Integrated Controller, Elevator Controlling System, Elevator Integrated Control Cabinet, Elevator Controller, NV3000 Series Step Elevator Controller
NV 3000 RATINGS
380/400/415V, 3 Phase Ratings (-15% to 20%: 30Ph, 323Vac to 456Vac)
220V Single-Phase, Three-Phase Ratings (-15% to 20%: 10Ph, 30Ph, 187Vac to 264Vac)
Nova welcomes you to visit our website or email us to get elevator door operator and landing door preliminary inquiry sheet for your selection to meet your specific requirements.
1.380/400/415V, 3 Phase
2.220V Single & Three Phase
3.Optional cards & parts
Elevator Integrated Controller, Lift Integrated Controller, Elevator Controlling System, Elevator Integrated Control Cabinet, Elevator Controller, NV3000 Series Step Elevator Controller
NV 3000 RATINGS
380/400/415V, 3 Phase Ratings (-15% to 20%: 30Ph, 323Vac to 456Vac)
Model Code | Frame | Input Current (A) | Output Current (A) | Typica Motor(kW) | Dimension | Braking Resistor | Braking Unit | ||||
30Ph | 30Ph | Height (H) | Width (W) | Depth (D) | n | kW | Part no. | ||||
NV-L-A/B-4002 | c | 6.5 | 5.1 | 2.2 | 355.0mm | 220.0mm | 150.0mm | 220 | 0.6 | MCTC-DBR-4002 | In-Built |
NV-L-A/B-4003 | 10.5 | 9.0 | 3.7 | 130 | 1.1 | MCTC-DBR-4003 | |||||
NV-L-A/B-4005 | 14.8 | 13.0 | 5.5 | 90 | 1.6 | MCTC-DBR-4005 | |||||
NV-L-A/B-4007 | D | 20.5 | 18.0 | 7.5 | 347.5mm 322.0mm* | 223.0mm 208.0mm* | 167.5mm 212.0mm* | 65 | 2.5 | MCTC-DBR-4007 | |
NV-L-A/B-4011 | 29.0 | 27.0 | 11.0 | 43 | 3.5 | MCTC-DBR-4011 | |||||
NV-L-A/B-4015 | 36.0 | 33.0 | 15.0 | 32 | 4.5 | MCTC-DBR-4015 | |||||
NV-L-A/B-4018 | E | 41.0 | 39.0 | 18.5 | 554.5mm | 289.6mm | 223.0mm | 25 | 5.5 | MCTC-DBR-4018 | |
NV-L-A/B-4022 | 49.5 | 48.0 | 22.0 | 22 | 6.5 | MCTC-DBR-4022 | |||||
NV-L-A/B-4030 | 62.0 | 60.0 | 30.0 | 16 | 9.0 | MCTC-DBR-4030 | |||||
NV-L-A/B-4037 | F | 77.0 | 75.0 | 37.0 | To be advised | 13 | 11.0 | MCTC-DBR-4037 | External | ||
NV-L-A/B-4045 | 93.0 | 91.0 | 45.0 | 10 | 13.5 | MCTC-DBR-4045 | |||||
220V Single-Phase, Three-Phase Ratings (-15% to 20%: 10Ph, 30Ph, 187Vac to 264Vac)
Model Code | Frame | Input Current (A) | Output Current (A) | Typical Motor (kW) | Dimension | Braking Resistor | Braking Unit | |||||||
10Ph | 30Ph | |||||||||||||
10Ph | 30Ph | 10Ph | 30Ph | Height(H) | Width(W) | Depth(D) | Q. | kW | n | kW | ||||
NV-L-A/B-4002 | C | 13.2 | 11.0 | 5.2 | 9.6 | 1.1 12.2 | 355.0mm | 220.0mm | 150.0mm | 130 | 0.9 | 130 | 1.1 | In-Built |
NV-L-A/B-4003 | 17.0 | 17.0 | 7.5 | 14.0 | 1.5/3.7 | 90 | 1.3 | 90 | 1.6 | |||||
NV-L-A/B-4007 | D | 29.0 | 29.0 | 10.3 | 18.0 | 2.2/4.0 | 347.5mm 322.0mm* | 223.0mm 208.0mm* | 167.5mm 212.0mm* | 90 | 0.9 | 90 | 1.1 | |
NV-L-A/B-4011 | 36.0 | 36.0 | 15.5 | 27.0 | 3.7/5.5 | 65 | 1.1 | 65 | 1.6 | |||||
NV-L-A/B-4015 | 41.0 | 41.0 | 19.0 | 33.0 | 4.0/7.5 | 43 | 1.6 | 43 | 2.5 | |||||
NV-L-A/B-4018 | 40.0 | 40.0 | 22.5 | 39.0 | 5.5/11.0 | 32 | 1.6 | 32 | 3.5 | |||||
NV-L-A/B-4022 | E | 49.0 | 49.0 | 27.7 | 48.0 | 11.0/15.0 | 554.5mm | 289.6mm | 223.0mm | 25 | 2.5 | 25 | 4.5 | |
NV-L-A/B-4030 | 61.0 | 61.0 | 34.6 | 60.0 | 15.0/18.5 | 22 | 3.0 | 22 | 5.5 | |||||
Nova welcomes you to visit our website or email us to get elevator door operator and landing door preliminary inquiry sheet for your selection to meet your specific requirements.
| Prod Model: | NOVA |
|---|---|
| Material: | Metal |
| Brand: | Monarch |
| System: | Serial System, Parallel System |
| Voltage: | 220V or 380V or Others |
| Size: | Nova Stanard |
| Usage: | for Mr and Mrl |
| Color: | White |
| Warranty Time: | One Year |
| Delivery Time: | 15 Working Days |
| Driving Type: | AC Elevator |
| Type: | Nice3000 New, As380 |
| Persons: | 6 - 10 |
| Speed: | 1.00 - 2.00m/S |
