| Prod Model: |
THR-EB5300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2220*990/1050*450-790 Mm |
| Weight Scale System: |
Optional |
| Castors: |
Central Control Castors |
| End Board Control System: |
Available |
| Insulted Side Rails Control Board: |
Available |
| Functions: |
Five Functions |
| CPR Handle: |
Optional |
| OEM: |
Available |
| Color Optional: |
Blue, Wood Color |
| Motors: |
Linak Motor: Five Year Warranty |
| Material: |
Metal |
| Folded: |
Folded |
Product Description

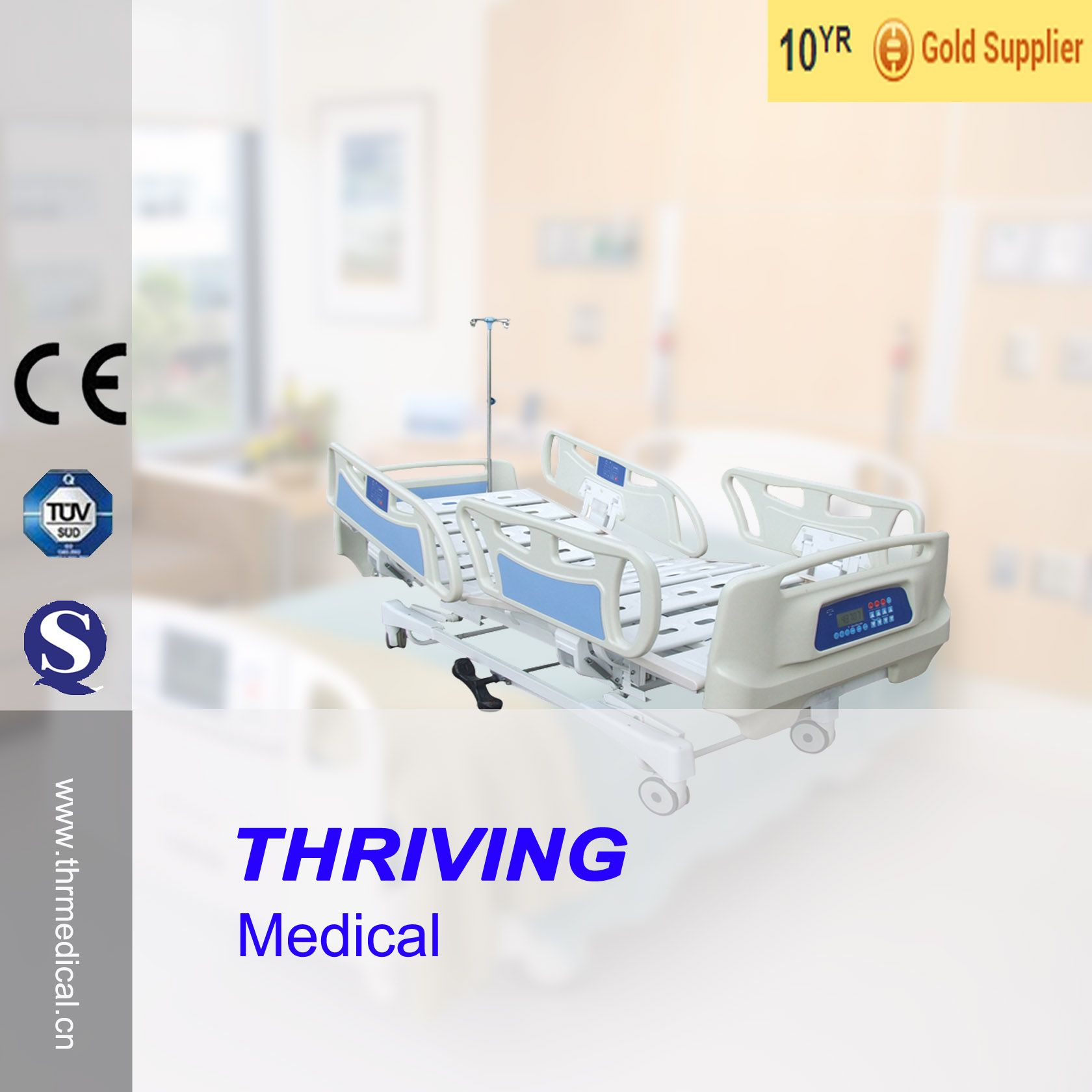

Five-Function Electric ICU Hospital Bed (THR-EB5300)
1)ISO, CE Electric Hospital Bed
2)With five function
Technical Parameters:
1. Over all size (L*W*H): 2220*990/1050*450/790mm
2. Maximum Low- 45cm
3. Maximum height---79cm
4.12.5cm castor
5. Four independence motors.
6. Built in foot board's I. V. Pole
7. Control button for outside of side rails and foot board
8. Control button for inside of side rail.
9. Angle scale.
10. CPR handle.
11. Detachable head and foot board
12. Retractable fifth wheel (optional)
13. Electronic function Lock (optional)
14. Weight rendings system: Accuracy of measurement -0.1kg
Features:
1. The security, reliability and practicability of the hospital bed attain national standard.
2. Its in-bed scale system increase efficiencies by taking accurate weight readings with the patient in any position.
3. It addresses patient safety with low bed height, full coverage side rails.
4. Its architecture and retractable support surface designed provides the flexibility to choose the most appropriate patient surface.
5. Patient will feel very convenient while be on drip or used the heart monitor since it won't need to change patient position when the bed back section rise and low.
| Specification |
| Length: | 223 cm |
| Width: (Including & Without the side rails) | 99~105 cm |
| Patient touching face: | 90*160 cm |
| Maximum capacity: | 250kg |
| Diameter of Central controlled castors: | 12.5 cm |
| Accuracy of Measurement: | 0.1kg |
| Material |
| Top coat: | Elactrostatic Powder coating |
| Bed frame: | Cold-Rolled Steel Tube |
| Bed base: | Cold-Rolled Steel Sheet |
| Function |
| Adjustable angle of Back Section Panel: | 0~75° |
| Adjustable angle of Leg Section Panel: | 0~45° |
| Trendelenburg: | 0~10° |
| Anti-Trendelenburg: | 0~10° |
| Height range: | 45~70 cm |
| Standard Accessary |
| Nurse controller | 1 unit |
| Rail controller | 4 units |
| Linak Electrical Motor | 4 units |
| Drainage hook | 2 units |
| Angle scale | 2 units |
| Manual CPR Handle | 1 unit |
| Central silent castors | 4 units |
| Detachable ABS head and foot board | 1 pair |
| Rise-and-fall guide wheel | 1 unit |
| Optional Accessary |
| I. V. Pole with 4 hooks | |
| Waterproof ventilative Mattress | |
| Weight reading sysytem | |
| Accuracy of Measurement of 0.05kg or 0.02 kg | |
| Packing Information |
| Packing size: | 244L*99W*53H cm |
