Floor Network Cabinet for Communication Equipment Like Patch Panels
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

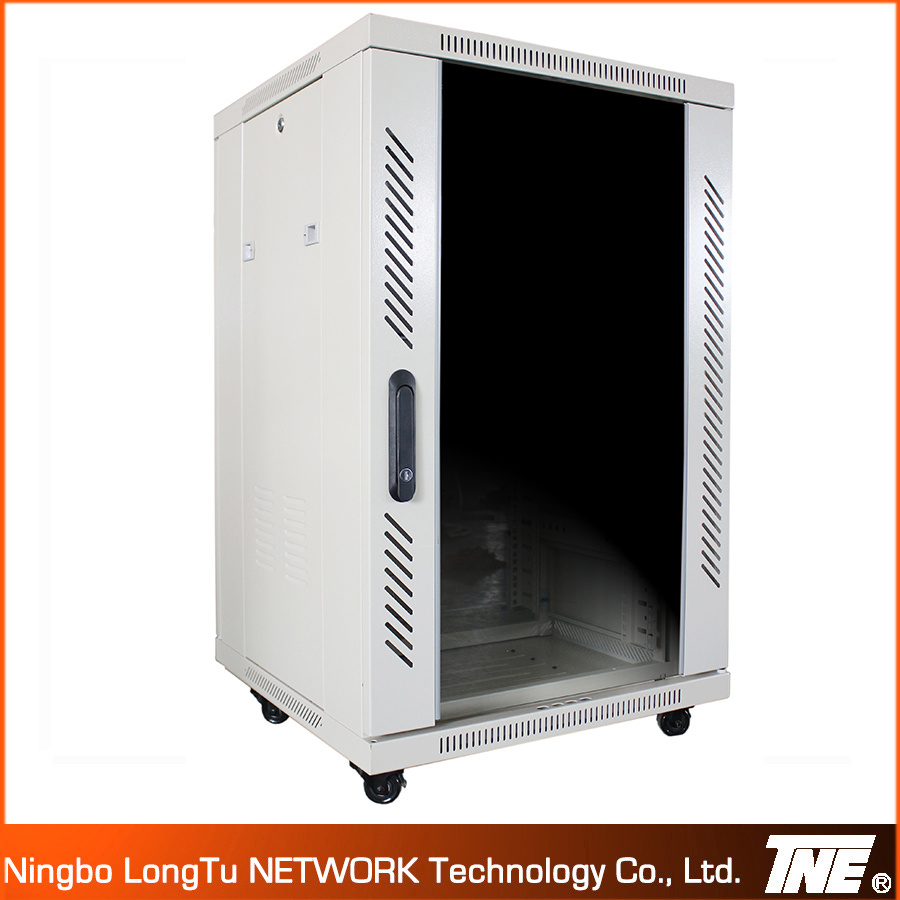

Floor Network Cabinet for Communication Equipment like Patch Panels
SPECIFICTION.- 19'' Network Cabinet
- Front Door Temper Glass Door with Swing handle Lock, Rear Metal Door with Small Round Lock
- Bottom Adjustable feet and heavy duty castors
- Removable side panels, side locks optional
- Cable entry on both of top cover and bottom panel
- 120mm fan available (220V or 110V)
- Turning angle of front door is over 180 degrees
| Grounding screw | Front and Rear door, Frames |
| Approvals | CE, ROHS, ISO |
| Product Warranty Period (Worldwide) | 3 Years |
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting
Degree of Protection:
IP20.
Body Color:
RAL7035, RAL7044, RAL9004 etc.

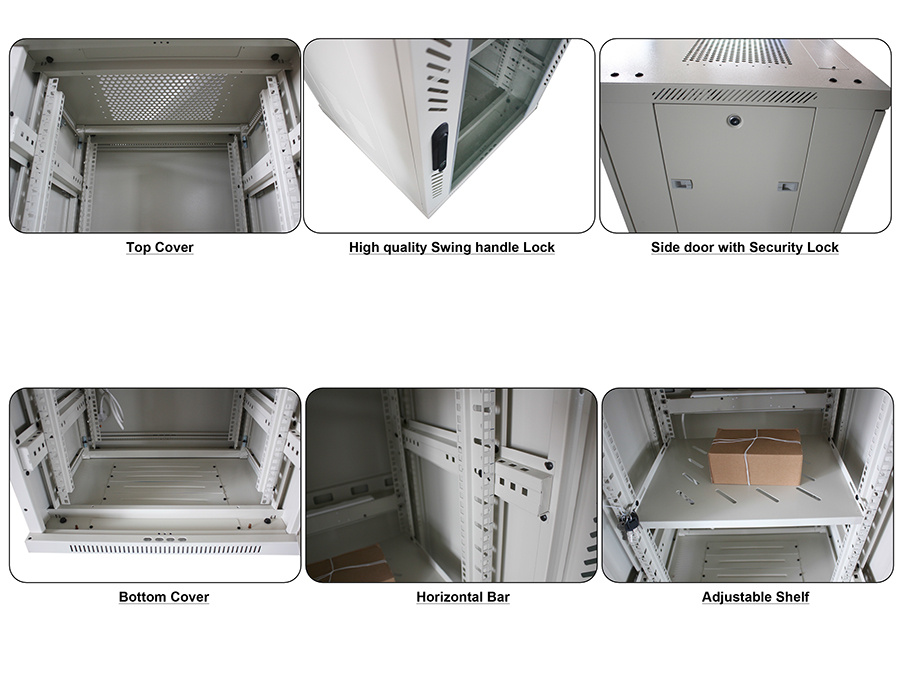

Details Picture Shows
Size Form
| Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
| TN-002 | 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
| TN-002 | 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
| TN-002 | 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
| TN-002 | 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
| TN-002 | 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
| TN-002 | 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
| TN-002 | 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
| TN-002 | 47U | 600mm/800mm | 600mm/800mm/1000mm | 2277mm |
Optional Accessory
- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
- Year 2003 TNE Founded
- Year 2006 TNE gains Export and Import Right
- Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
- Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
- TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
- Network cabinet
- Server Rack
- Wall Mount Cabinet
- Open Frames
- PDU...
- CNC Punching Machine: 4 sets
- Laser Cutting Machine: 2 sets
- Bending Machine: 11 sets
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business@TNE
| Color: | Ral7035, Ral9004, etc |
|---|---|
| Logo: | Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: | Assembled or Dis-Assembled |
| Shipping: | Sea, Air, Train, Truck |
| Material: | SPCC Cold Rolled Steel |
| Certificate: | Ce. RoHS |
| Type: | Network Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Certification: | RoHS |
| Condition: | Used |
| Fan Number: | 2 to 6 PCS Fan |
| Capacity: | 12u to 47u |
