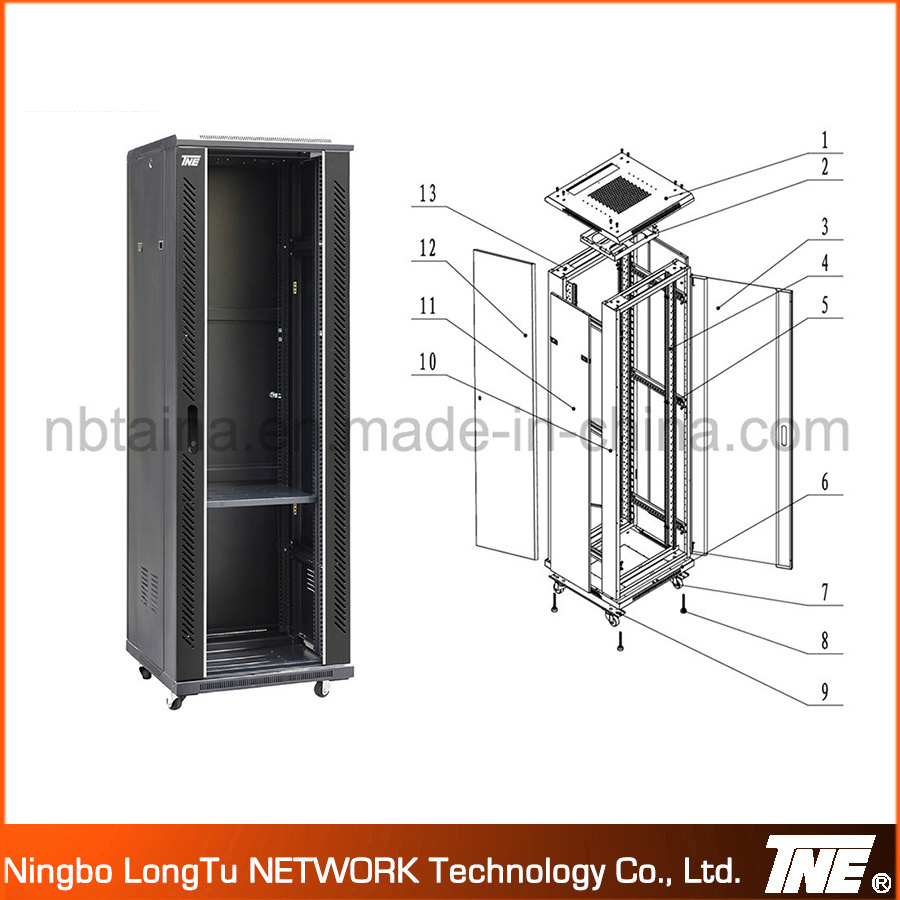

Floor Stand Network Cabinet for Telecommunication Equipment

Model No. Tn-002 19'' High Quality Network Cabinet for Telecommunication Equipments

*Exquisite design with precise dimension and craftsmanship;
*Toughened temper glass door front and rear solid steel door
*Lockable door and side panels for system security;
*Fully adjustable vertical mounting rails;
*Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
*Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.

Optional Accessory

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...

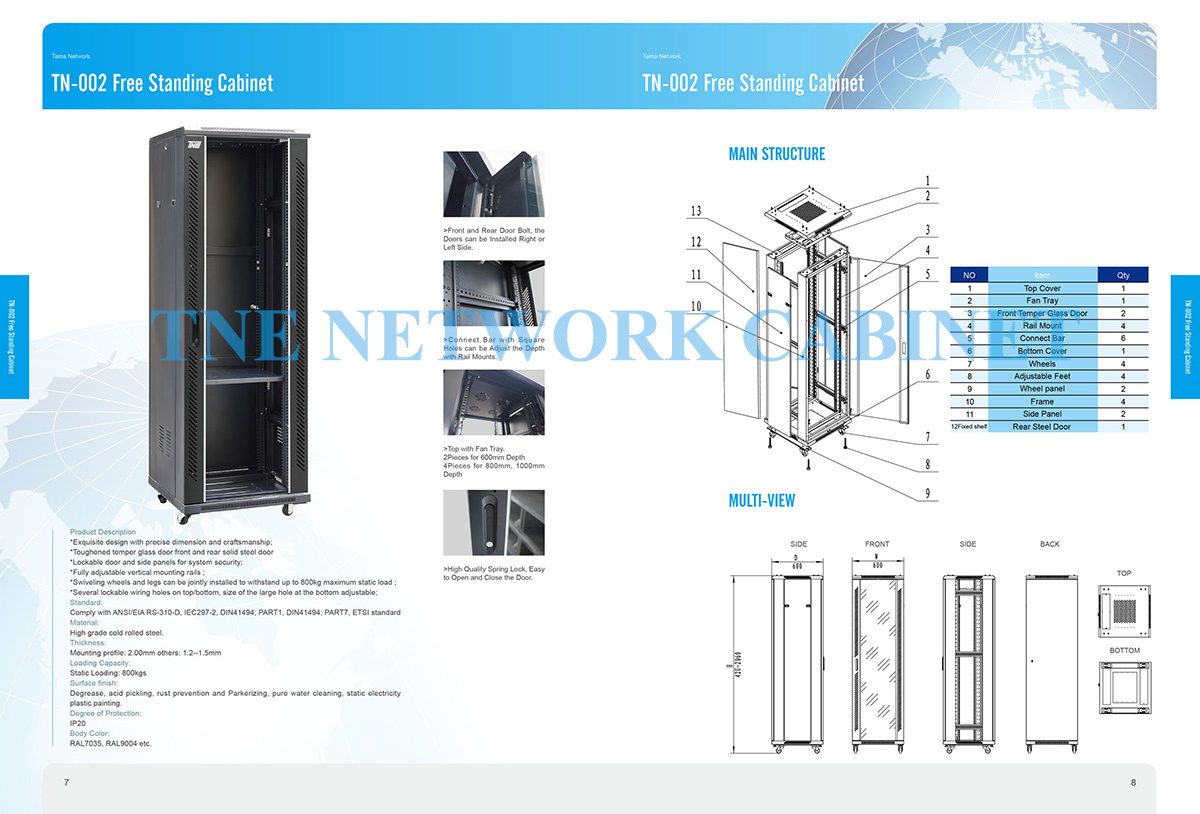

Catalog:

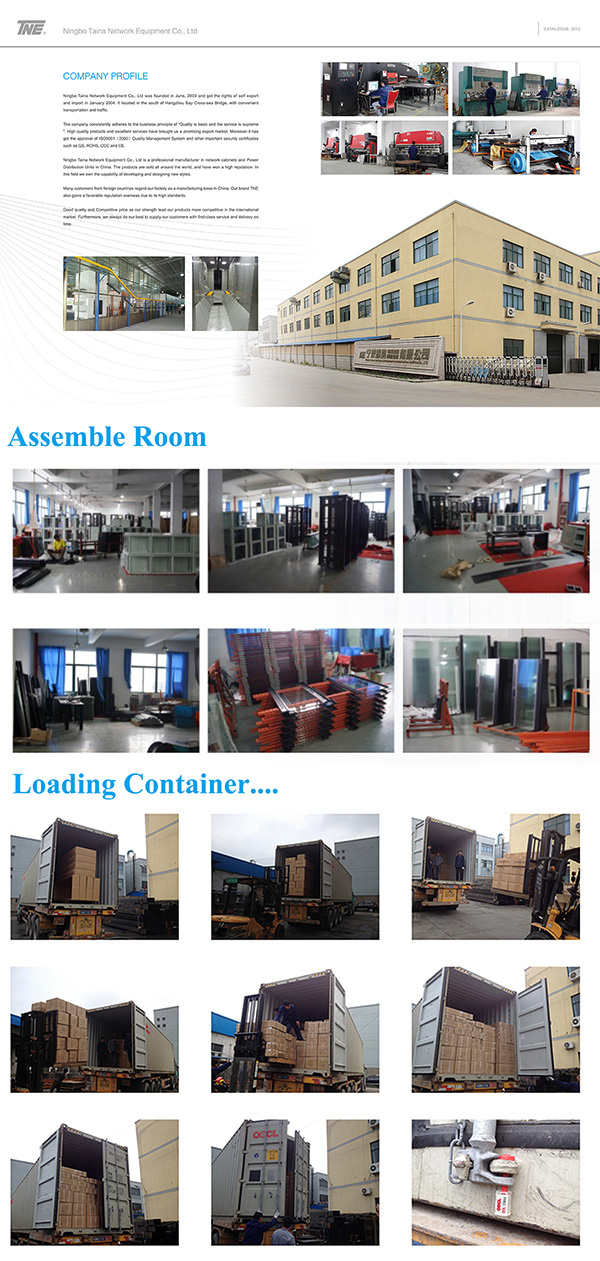

Factory Informaiton:

Packing Way:




Model No.	Capacity(U)	Width(mm)	Depth(mm)	Height(mm)
TN-002	18U	600mm/800mm	600mm/800mm/1000mm	988mm
TN-002	22U	600mm/800mm	600mm/800mm/1000mm	1166mm
TN-002	27U	600mm/800mm	600mm/800mm/1000mm	1388mm
TN-002	32U	600mm/800mm	600mm/800mm/1000mm	1610mm
TN-002	37U	600mm/800mm	600mm/800mm/1000mm	1833mm
TN-002	42U	600mm/800mm	600mm/800mm/1000mm	2055mm
TN-002	45U	600mm/800mm	600mm/800mm/1000mm	2188mm
TN-002	47U	600mm/800mm	600mm/800mm/1000mm	2277mm
