Flujo De Aire Laminar/Flujo De Aire Laminar Cá Mara/Vertical De Aire De Flujo Laminar Flow Cabinet
| Price: | US $ 1000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Flujo de aire laminar/flujo de aire laminar cámara/vertical de aire de flujo laminar
Main Features:
Horizontal flow cabinets create less turbulence at the work surface as the airflow does not directly impinge upon it but rather is smoothly drawn across it. The air flow on the vertical flow cabinets directly strikes the work surface. However, to minimize this effect, vertical laminar flow cabinets are manufactured with rear wall perforations to reduce turbulence by removing a small amount of air at the rear of the cabinet. Turbulence is a problem only when it is excessive.Horizontal Air Flow Clean Bench
Parameters for Vertical Clean Bench:

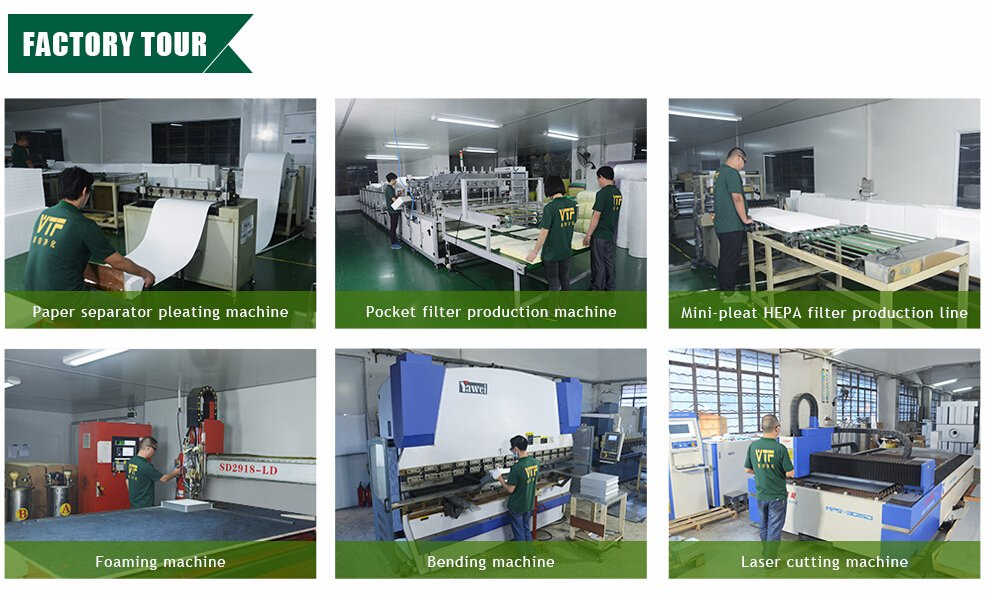

Production Flow
Production show :
Packaging & Shipping
Packing details :
1: carton box
2: plywood
3: wooden crates
according to customers requirements to chose package method .
Certifications
Company Information
FAQ
1. Are you trading company or Manufacturer?
We are the factory.
2.What's your mainly products?
We are the high-tech enterprise which specializes in design.manufacture,sale ,installnation and inspection of air filters and purification equipments.
3.What about the payment terms?
We can provide T/T,PAYPAL,WEST UNION.
4. How long your delivey time?
Delivery will be within 7 days after payment.
Main Features:
Horizontal flow cabinets create less turbulence at the work surface as the airflow does not directly impinge upon it but rather is smoothly drawn across it. The air flow on the vertical flow cabinets directly strikes the work surface. However, to minimize this effect, vertical laminar flow cabinets are manufactured with rear wall perforations to reduce turbulence by removing a small amount of air at the rear of the cabinet. Turbulence is a problem only when it is excessive.
Horizontal Air Flow Clean Bench
Description:
Clean bench, as a partial (vertical or horizontal ones) clean equipment, can make the working area meet the requirenment of 100% purification. These series include two structures: The first one is one-piece type, the other one is the one that bench and self-purified equipments are separated, various sizes and customized design are available.
Horizontal air Flow Clean Bench
1.Class 100 Vertical Flow Clean Bench;
2.HEPA Filter 99.99%;
3.Can add UV light;
4.One year warranty;
5.Custom available;
Features:

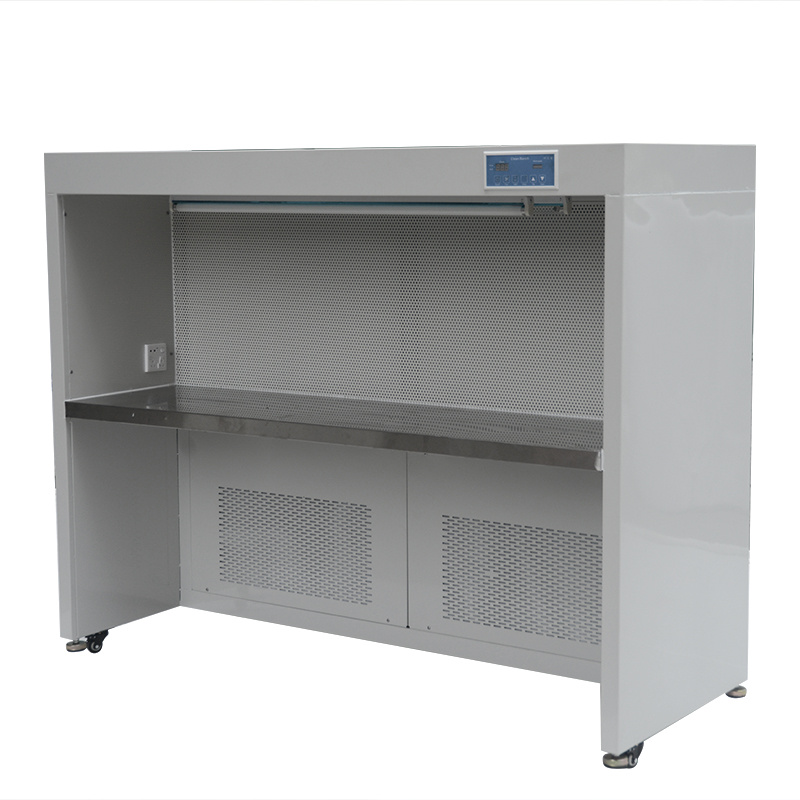

Class 100 Vertical Flow Clean Bench
Laminar Flow Clean Bench,as a partial (Vertical or horizontal ones) clean equipment,can make the working area meet purification requirement of Class 100. These series include two structures: one is one-piece type,the other is bench with self-purification separator.
Custom made is available.
Vertical Flow Clean Bench
Description:
Clean bench, as a partial (vertical or horizontal ones) clean equipment, can make the working area meet the requirenment of 100% purification. These series include two structures: The first one is one-piece type, the other one is the one that bench and self-purified equipments are separated, various sizes and customized design are available.
Feature:
>Available in Horizontal Laminar flow and Vertical laminar flow
> Corrosion resistant
>Low profile ceiling module
>Low energy consumption reduces operating costs.
> High static pressure at full air flow.
>Low noise level
>High efficiency HEPA/ULPA filter
Blower and Filtration Systems
ZHUOWEI laminar flow cabinet use permanentlylubricated, centrifugal motor/blowers with external rotor
designs. Selected for energy efficiency, compact design, and flat profile, the completely integrated blower assembly optimizes motor cooling, with unified rotating parts and overall component balance for smooth, quiet, vibration-free operation. Weight is equally distributed to all bearings to extend bearing life.
A disposable pre-filter with 85% arsenate extends the life of the main filter.
Parameters for Horizontal Clean Bench:
| Model | ZK-1000 | ZK-1350 | ZK-1610 | ZK-1915 |
| External size(mm) | W1000*L740*H1460 | W1350*L740*H1460 | W1610*L740*H1460 | W1915*L740*H1460 |
| Internal working size(mm) | W980*L480*H610 | W1285*L480*H610 | W1590*L480*H610 | W1895*L480*H610 |
| Air flow(m/h) | 900 | 1200 | 1500 | 1800 |
| wind velocity | 0.45m/s±20% | |||
| Cleanliness class | Class 100 (ISO14644-1 International standard) | |||
| Mini-pleat Hepa Filter | 99.99% @ 0.3μm | |||
| Size & NO. of Hepa Filter | 915*610*69-1 | 1220*610*69-1 | 915*610*69-1 610*610*69-1 | 915*610*69-2 |
| Table material | SS304 | |||
| Noise | <50 dB | <50 dB | <50 dB | <50 dB |
| Noise testing area | The area 20cm away from the front of clean bench and 1.2 m height. | |||
| Power | AC, 220V 50/60Hz | |||
| Used for NO. of people | 1 | 1-2 | 2-3 | 3-4 |
Parameters for Vertical Clean Bench:
| Model | ZK-S-1000 | ZK-S-1350 | ZK-S-1640 | ZK-S1950 |
| External size(mm) | W1000*L650*H1750 | W1350*L650*H1750 | W1640*L650*H1750 | W1950*L650*H1750 |
| Internal working size(mm) | W820*L610*H600 | W1270*L610*H600 | W1560*L610*H600 | W1870*L610*H600 |
| Air flow(m/h) | 900 | 1100 | 1500 | 1800 |
| wind velocity | 0.45m/s±20% | |||
| Cleanliness class | Class 100 (ISO14644-1 International standard) | |||
| Mini-pleat Hepa Filter | 99.99% @ 0.3μm | |||
| Size & NO. of Hepa Filter | 880*570*69-1 | 1170*570*69-1 | 915*570*69-1 610*570*69-1 | 915*610*69-2 |
| Table material | SS304 | |||
| Noise | <50 dB | <50 dB | <50 dB | <50 dB |
| Noise testing area | The area 20cm away from the front of clean bench and 1.2 m height. | |||
| Power | AC, 220V 50Hz | |||
| Used for NO. of people | 1 | 1-2 | 2-3 | 3-4 |
Production Flow
Production show :
Packaging & Shipping
Packing details :
1: carton box
2: plywood
3: wooden crates
according to customers requirements to chose package method .
Certifications
Company Information
FAQ
1. Are you trading company or Manufacturer?
We are the factory.
2.What's your mainly products?
We are the high-tech enterprise which specializes in design.manufacture,sale ,installnation and inspection of air filters and purification equipments.
3.What about the payment terms?
We can provide T/T,PAYPAL,WEST UNION.
4. How long your delivey time?
Delivery will be within 7 days after payment.
Welcome to visit our factory !
Hope to coooperate with you in the further future !
Hope to coooperate with you in the further future !
| Prod Model: | ZK-1350 ZK-S-1350 ZK-1915 ZK-S-1915 ZK-1000 |
|---|---|
| Brand: | Jowell |
| Application: | Dust-Free Clean Air Workspace |
| Filter: | Pre+HEPA Filter |
| Airflow: | Vertical or Horizontal |
| Power: | 110V or 220V |
| Worktop: | Ss |
| Structure: | Desktop |
| Air Volume: | 51-150m³/H |
| Power Source: | AC Source |
| Operating Principle: | Passive |
| Type: | HEPA Filter |
| Usage: | Engineering, Medical, Industry |
| Color: | White |
