CLW Heavy Industry Co., Ltd. >> Foton 6*4 16-18cbm Fire-Fighting Trucks

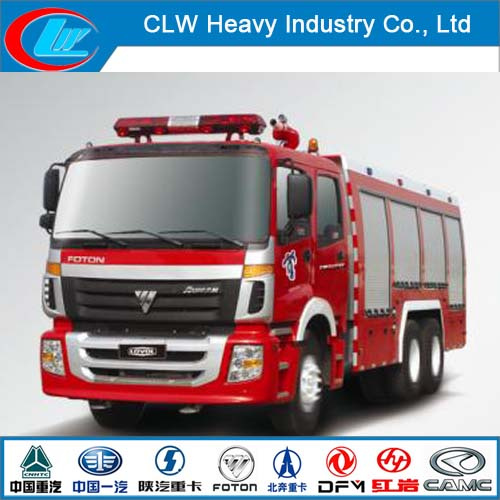

Foton 6*4 16-18cbm Fire-Fighting Trucks
| Price: | US $ 52000-58000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Foton 6*4 16-18cbm Fire-Fighting Trucks
Product Description
Product Description:
1, equipped CB10/60 fire pump, equipped with PS50 type fire monitor
2, Low oil consumption with strong horse power 266HP
3. LHD or RHD are optional
4. Water capacity 5-8cbm
Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure vessel
FAQ
1.Payments:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.
Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of our Fire Fighting Truck, please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.
Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442
Technique Parameters
Exporting:
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana
If you are interested in our trucks, pls contact me, I will send our best quotation to you!
Contact Information
Sale Manager: Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
Product Description
Product Description:
1, equipped CB10/60 fire pump, equipped with PS50 type fire monitor
2, Low oil consumption with strong horse power 266HP
3. LHD or RHD are optional
4. Water capacity 5-8cbm
Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure vessel
FAQ
1.Payments:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.
Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of our Fire Fighting Truck, please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.
Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442
Technique Parameters
| Description | FOTON 6x4 fire truck | ||
| Drive Model | 6x4 | ||
| Chassis | BJ1253VLPJE | ||
| Fact cubage | 11.655cbm(water tank:9cbm, foam tank 2.655cbm) | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9905x2480x3500 | |
| Wheel base (mm) | 4300+1350 | ||
| Overhang (front/rear) (mm) | 1555/2600 | ||
| Wheel track (front/rear) (mm) | 2005/1865/1865 | ||
| Approach/Departure angle(°) | 18/16 | ||
| Weight in KGS | Curb Weight | 12040 | |
| GVW. | 24490 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Model | WP10.270 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 270 | ||
| engine capacity(ml) | 199 | ||
| Emission standard | Euro III | ||
| Gearbox | 8 forwards & 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 200 | ||
| Tire | 12.00R20 , 10pcs + 1 spare | ||
| Brakes | dual circuit compressed air brake | ||
| UPPER | |||
| Water tank Volume | 9cbm | ||
| Foam tank Volume | 2.655cbm | ||
| Loading Capacity | 11.655 | ||
| Protective material | Carbon steel | ||
| Key Equipment | |||
| Fire Pump | Mode | CB30.60 | |
| Flow | 60L/s | ||
| Pressure | 1.0Mpa | ||
| Fire Monitor | Mode | PL48 | |
| Pressure | 1.0-1.2MPa | ||
| Flow | 48L/S | ||
| Fire Distance(water/foam) | ≥65m/60m | ||
| Rotation Angle(°) | 360/-30~80 | ||
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana
If you are interested in our trucks, pls contact me, I will send our best quotation to you!
Contact Information
Sale Manager: Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
| Prod Model: | CLW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: | Foton 6*4 16-18cbm Fire-Fighting Trucks |
| Brand: | Dongfeng HOWO Foton Faw Shacman Iveco Japan |
| Tank Volume: | 4cbm,4000L,4000liters,5cbm 5000L 6cbm |
| Tank Material: | Q235 |
| Water Tank Capacity: | 5cbm 6cbm 7cbm 8cbm |
| Allowable Passengers In Cab: | 3+3 |
| Water Rated Flow: | 30L/S |
| Fire Monitor Range: | More Than 45m |
| Max Speed: | 70-90km/H |
| Tool Box: | 4-5 Set as Optional |
| Type: | Tanker |
| Emission Standard: | Euro 2 |
| Horsepower: | 351-450hp |
| Volume: | 5001-7000L |
| Transmission Type: | Manual |
| Drive Wheel: | 6?รก4 |
| Certification: | CE |
| Fuel: | Diesel |
| Engine Type: | 4 Stroke |
| Condition: | New |
| Payload: | 15ton |
