Prod Model: |
FJK8000-1 |
Model: |
Fujizy Elevator |
Machine Room: |
Yes |
Floor: |
10,or as Your Needs. |
Cabin Material: |
Stainless Steel |
Traction: |
Gearless Traction Machine |
LED Car Lighting System: |
Yes |
Energy Feedback System: |
Yes |
Certificates: |
Ce,ISO9001 |
Location: |
Shandong |
Warranty: |
1 Year |
Driving Type: |
AC Elevator |
Capacity: |
500-1000kg |
Persons: |
6 - 10 |
Speed: |
1.00 - 2.00m/s |
Product Description

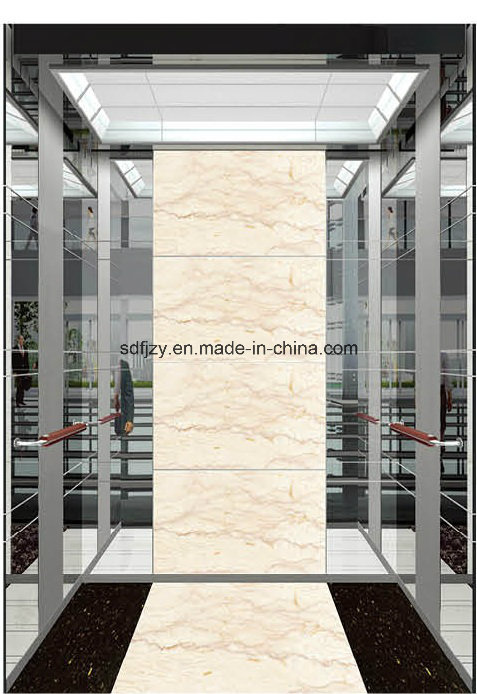

FUJIZY elevator lift
Products Introduction: Rated Loading Capacity | Rated Speed | Cab Size Width*Depth | Door Size Width*Height | Shaft Size Width*Depth | Machine Room Size | Min Overhead | Pit Depth |
kg | m/s | mm | mm | mm | mm | mm | mm |
630 | 1.0 | 1400*1100 | 800*2100 | 1900*1850 | 1900*1850 | 4400Min | 1500Min |
1.5 | 4600Min | 1600Min |
1.75 | 4700Min | 1700Min |
800 | 1.0 | 1400*1350 | 800*2100 | 1900*2100 | 1900*2100 | 4400Min | 1500Min |
1.5 | 4600Min | 1600Min |
1.75 | 4700Min | 1700Min |
2.0 | 5000Min | 2000Min |
1000 | 1.0 | 1600*1400 | 900*2100 | 2100*2150 | 2100*2150 | 4400Min | 1500Min |
1.5 | 4600Min | 1600Min |
1.75 | 4700Min | 1700Min |
2.0 | 5000Min | 2000Min |
2.5 | 5000Min | 2200Min |
3.0 | 5500Min | 2600Min |
4.0 | 6500Min | 3800Min |
1150 | 1.0 | 1800*1400 | 1000*2100 | 2300*2150 | 2300*2150 | 4400Min | 1500Min |
1.5 | 4600Min | 1600Min |
1.75 | 4700Min | 1700Min |
2.0 | 5000Min | 2000Min |
2.5 | 5000Min | 2200Min |
3.0 | 5500Min | 2600Min |
4.0 | 6500Min | 3800Min |
1250 | 1.0 | 1800*1500 | 1000*2100 | 2300*2250 | 2300*2250 | 4400Min | 1500Min |
1.5 | 4600Min | 1600Min |
1.75 | 4700Min | 1700Min |
2.0 | 5000Min | 2000Min |
2.5 | 5000Min | 2200Min |
3.0 | 5500Min | 2600Min |
4.0 | 6500Min | 3800Min |
1350 | 1.0 | 2000*1500 | 1100*2100 | 2500*2250 | 2500*2250 | 4400Min | 1500Min |
1.5 | 4600Min | 1600Min |
1.75 | 4700Min | 1700Min |
2.0 | 5000Min | 2000Min |
2.5 | 5000Min | 2200Min |
3.0 | 5500Min | 2600Min |
4.0 | 6500Min | 3800Min |
1600 | 1.0 | 2000*1750 | 1100*2100 | 2500*2500 | 2500*2500 | 4400Min | 1500Min |
1.5 | 4600Min | 1600Min |
1.75 | 4700Min | 1700Min |
2.0 | 5000Min | 2000Min |
2.5 | 5000Min | 2200Min |
3.0 | 5500Min | 2600Min |
4.0 | 6500Min | 3800Min |
Company Introduction:Shandong FJZY Elevator Co., Ltd. is a large-scale FJZY Elevator production base in China mainland . It has introduced the high FJZY technology as the specialized professional enterprise with the integration of manufacture, sales, installation, maintenance and transformation. The manufacturing plant is located in Ningjin of Shandong Province 'Hometown of Elevator' and 50km away from Jinghu Expressway and 100km from Jinan Yaoqiang Airport.
Company invested 60 million RMB in 2008, built plant area of 89 acres, an area of 26,000 modern factory. Employee enrolled nearly 200 people. It has 80 engineers and technicians and 30 senior quality controllers. The company has also introduced a large number of international advanced equipments including numerical control laser machines, imported numerical control machining center, imported bender, imported plate shearing machine and large-scale chalk line.
Based on the solid comprehensive production advantage in mechanical and electrical products of Fuji Group, the company applies the advanced Fuji electrical components of modular structure into the elevator control system to equip the elevator with the features of safety, reliability and environmental protection. It now manufactures passenger elevator of standard machine room, small machine room and machine-room-less of variable frequency, voltage and speed, passenger-goods elevator, hospital bed elevator, residential elevator, panoramic elevator, escalator and moving walk. It can also customize various kinds of non-standard elevator according to the demands of customers.
Company invested 216 million RMB in March, 2010, and go on the second phase of the expansion project, with a area of 150 acres. Office building has a area of 5,000 square meters, 40,000 floor space. Elevator testing tower has a height of 100 meters, the annual production capacity is 6000-8000 units. The company adheres to the safety, energy saving, high quality corporate philosophy, follows the professional and international modern management methods of elevator. And the ISO9001 quality management system is required.
Insisting on implementing international strategy, Shandong Fuji Zhiyu Elevator Co., Ltd. is making continuous efforts to be an elevator manufacturing enterprise with international competitiveness and internationally top standard in elevator network of design, production, marketing, installation and after-sale service . Through unremitting efforts, currently, Fuji elevator has been widely approved by partners and customers in the aspects such as the development, production, installation, maintenance and transformation technology of elevator, stair and sidewalk. The successful installation and application of a great number of projects in Shandong, Hebei and Tianjin indicate that Fuji Elevator as a professional elevator production enterprise with internationally leading technical level and nationally Grade A authentication speaks with strength and sets up brand with quality. In the brand-new year, our company will keep going and continue providing service for the social customers for the purpose of integrity, quality and service.
We are looking for agents worldwide.Welcome to visit our company for cooperations!
Shandong FUJIZY Elevator Co., Ltd. With the authorization of FUJI Elevator Corporation, as a professional manufacturer and researcher of elevators, located in Ningjin County Economic Develepment Zone, Shandong Province, China. It has introduced the high FUJI technology as the specialized professional enterprise with the integration of manufacture, sales, installation, maintenance and transformation. There are more than 500 empoyees, 80 technology engineers and 30 senior quality inspectors in our company. The company has also introduced a large number of international advanced equipments including numerical control laser machines, imported numerical control machining center, imported bender, imported plate shearing machine and large-scale chalk line etc...
Our main products are passenger elevator of standard machine room, small machine room and machine-room-less of variable frequency, voltage and speed, freight elevator, hospital bed elevator, residential elevator, sightseeing elevator, vehicle elevator, special type elevator, escalator and automatic sidewalk. We can also customize various kinds of non-standard elevator according to customers' request. And we have obtained customers' recognition by strong technique power, first-rate manufacture capacity, complete testing measure, excellent quality and good reputation in China and abroad. We are one of the main elevator manufacturers in China.
The successful installation and application of a great number of elevator projects in China and other countries indicate that FUJI Elevator 's strength and excellent quality as a professional elevator manufacture. Our company will keep going and continue providing excellent service for the old and new customers for the purpose of integrity, quality and service in future. Let's build a briliant future together.
