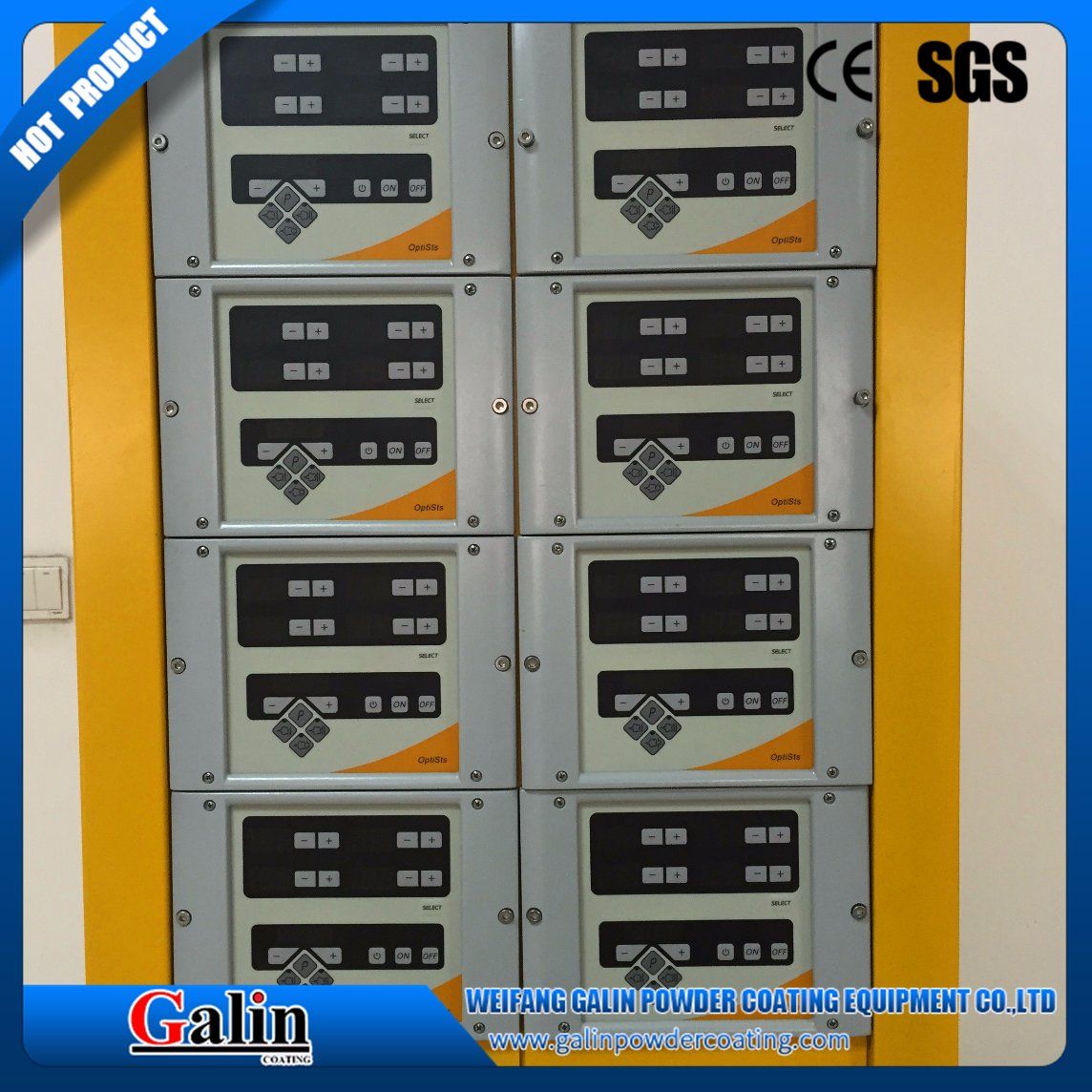

Galin/Gema Metal/Plastic Automatic Powder Coating/Spray/Paint Control Cabinet of Machine (OPTF/CG6) for Complex Workpiece
| Price: | US $ 1300-1900/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

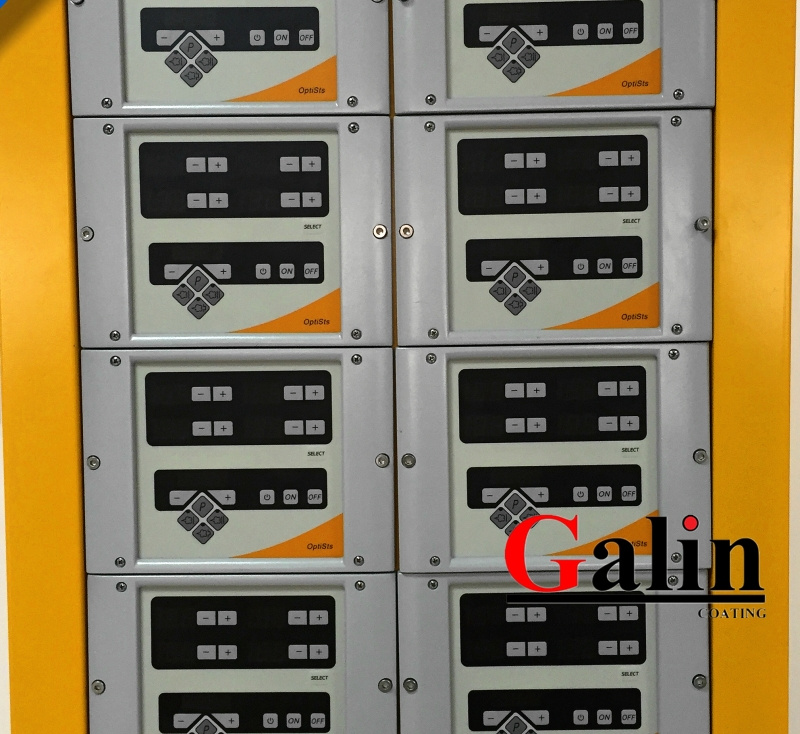

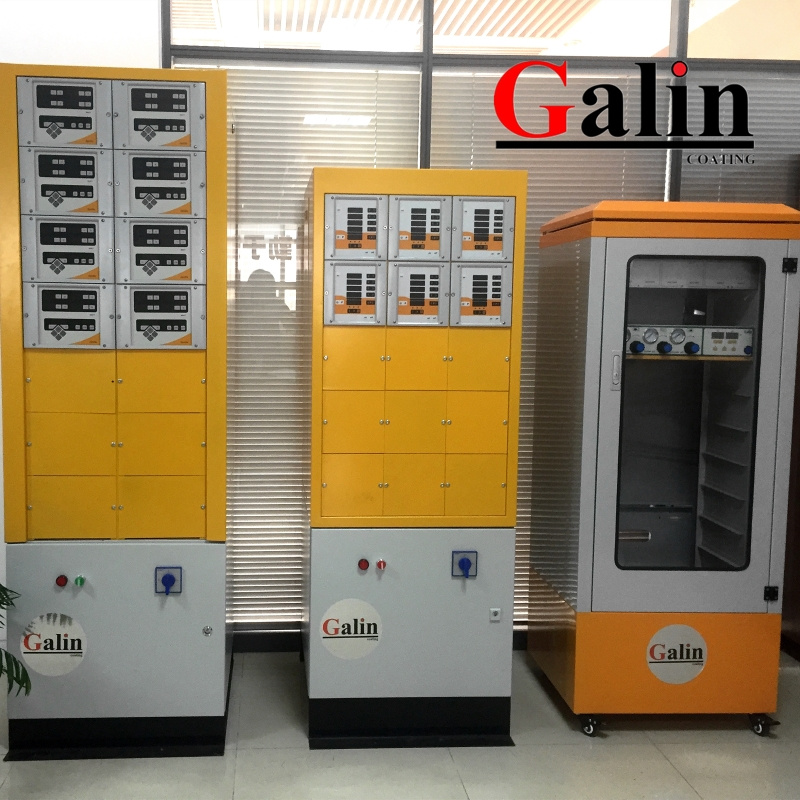

| Galin/Gema Automatic Powder Coating/Spray/Paint Control cabinet of machine (OPTF/CG6) |
it is suitable for complex and high quality workpiece,can be used with Metal powder
| GALIN POWDER COATING MACHINE (OPTF/CG6) ELECTRICAL DATA | |
| Nominal input voltage | 110V240VAC |
| Frequency | 50-60Hz |
| Connected load (without vibrator) | 140 VA |
| Nominal output voltage (to the gun) | eff.10 V |
| Nominal output current (to the gun) | max. 1.2 A |
| Connection and output for vibrator (on Aux output) | 110/230 VAC max. 100 W |
| Connection for rinsing function (valve) | 24 VDC max. 3 W |
| Temperature range | 0°C - +40°(+32°F - +104°F) |
| Max. surface temperature | 120 °C (+248 °F) |
| Approvals | II 3 D IP54 120 °C |
| GALIN POWDER COATING MACHINE (OPTF/CG6) PNEUMATICAL DATA | |
| MAX.input pressure | 10bar |
| MIN.input pressure | 6bar |
| Input pressure (Dynamic based on pressure regulator setting) | 5.5 bar / 80 psi |
| Max.water vapor content of the compressed air | 1.3g/Nm³ |
| Max.oil vapor content of the compressed air | 0.1mg/Nm³ |
| Max.compressed air consumption | 8Nm³/h |
| GALIN POWDER COATING MACHINE (OPTF/CG6) PROCESSIBLE POWDER | |
| Plastic Powder: | √ |
| Metallic Powder: | √ |
| Enamel Powder: | × |
Galin powder coating machine can be used for Hub
Galin powder coating machine can be used for Furnitur
Galin powder coating machine can be used for Metal Rail
Galin powder coating machine can be used for Metal products
Galin powder coating machine can be used for Glass products
Galin powder coating machine can be used for Metal or Glass Cup
Galin powder coating machine can be used for Any Metal or Glass you want
Galin powder coating machine can be used for Furnitur
Galin powder coating machine can be used for Metal Rail
Galin powder coating machine can be used for Metal products
Galin powder coating machine can be used for Glass products
Galin powder coating machine can be used for Metal or Glass Cup
Galin powder coating machine can be used for Any Metal or Glass you want
Galin/Gema powder coating machine (OPTF/CG6) can be used for Metal Powder
Galin/Gema powder coating machine (OPTF/CG6) can be used for Complex Piece
CLEANING AND MAINTENANCE OF POWDER COATING MACHINE
(OPTF/CG6)
- Daily Maintenance
1. Clean the injector
2. Clean the powder gun
3. Clean the powder hose and suction unit
2. Clean the powder gun
3. Clean the powder hose and suction unit
- Weekly Maintenance
1. Clean suction unit,injector,Powder Clean module and powder gun
2. Check the control unit grounding connections to the coating booth bolts,
the suspension devices of the work pieces,or the conveyor.
TROUBLESHOOTING GUIDE OF POWDER COATING MACHINE(OPTF/CG6)
If the powder gun does not spray powder although the control unit is switched on,then the injector can be dirty or clogged.
2. Check the control unit grounding connections to the coating booth bolts,
the suspension devices of the work pieces,or the conveyor.
TROUBLESHOOTING GUIDE OF POWDER COATING MACHINE(OPTF/CG6)
If the powder gun does not spray powder although the control unit is switched on,then the injector can be dirty or clogged.
| Error/cause | Troubleshooting |
| Injector nozzle, non-return valve unit, powder hose or powder gun are clogged | Clean the corresponding parts and if necessary,replace them |
| Conveying vacuum too low | Increase the powder quantity and/ or total air volume on the control unit |
| Insert sleeve worn , not or incorrect inserted | Replace or insert it ,observe the indexing cam |
| Insert sleeve is worm after a short operating duration | Clean the nozzle ,if damaged,replaced it |
| The gun does not spray powder although the control unit is switched on and the gun trigger is pressed | 1.Connect the equipment to the compressed air 2.Clean /Replace 3.Clean the corresponding 4.Contact Galin representative |
| Prod Model: | OPTF/CG6 |
|---|---|
| Type Gun: | Manual or Auto Powder Coating Gun |
| Screen: | LED or LCD |
| Hopper: | 55L |
| Type Of Shipping: | Express/Air Transport/Land Transpor/Ocean Shipping |
| Delivery Detail: | Shipped in 10 Days After Payment |
| Warranty: | 1 Year |
| Type: | Electrostatic Spraying Equipment |
| Application: | Metal and Glass Spraying Equipment |
| Certification: | SGS |
| Method Type: | Manual |
Weifang Galin Powder Coating Equipment Co., Ltd which located in Shandong district, specializes in manufacturing the coating equipment. We not only supply the high-quality coating equipment, but also the best service.
We are professional in the powder coating system and liquid painting system. The Powder coating system includes the powder booth, after-filter, nine-pipe cyclone, sieving machine, hopper, powder coating machine/unit, manual electrostatic sprayer gun, aotomatic electrostatic sprayer gun, panel controller, HV module, PCB board, gun injector/pump, powder hose, filter and other parts; The Liquid paint system includes the water-screen booth, cup, electrostatic liquid painting gun, air gun, diaphragm pump, constant voltage valve, pneumatic parts and so on. In addition, we can make all kinds of the high voltage module, like GEMA, WAGNER, NORDSON etc.
Now, in the powder coating market, there are many factory to supply powder coating machine, most of them are cheap, but poor quality. What we want to do is to the best powder coating brand " GALIN "
GALIN powder coating machine has the following advatage:
Powder charge rate 85-95%, can save powder very much
Can spare metal powder easily
Pricise and repeatable regulations of conveying ans supplementary air to achieve stable powder output and good coating results, we call it DVC technology
Its nozzle is made of high quality non-stick material components, keep spitting -free and pertect color changes
Its gun body has a very regular " Drop shape" , which can keep fast and contamination -free color change
And so on...
As we know, for one powder coating machine, the most important is not face, not cart, should be powder charge rate.
Why we can keep our machine powder charge rate better than other supplier, let me explain:
Gun body and cascade shell materail: We use anti-static material which can protect the high voltage not be less when going through gun body
Nozzle's resistor: We use glass glaze resistor not carton film resistor, it can transfer voltage more exactly and be more longer life(that is why our nozzle 's life is longer 3-4 times than others )
Gun cable: If we use cheap cable, when the volage go from control unit to go, it will be less 5 %, in order to keep the voltage not be less, we use cable with shield wire.
Filter: What we use is airtac filter (not cheap brand), it can spray clear air
Injector: We use wear-resistance material in order to make longer life
So if you want high quality powder coating machine, pls contact us
