Jinan Weili Machine Co., Ltd. >> Glass Tilting and Breaking Table (FZT03)

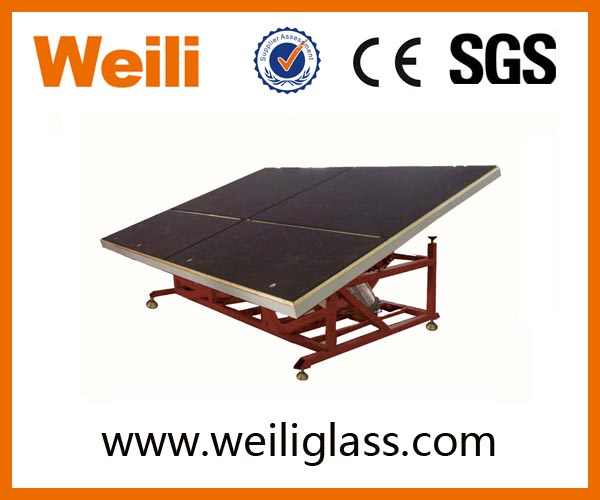

Glass Tilting and Breaking Table (FZT03)
| Price: | US $ 5165-6312/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

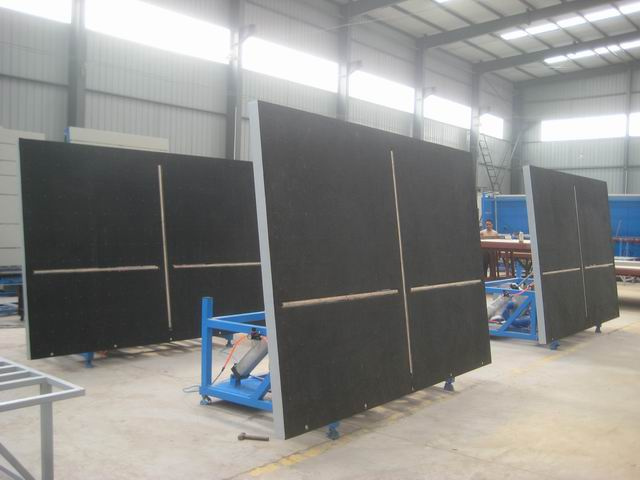

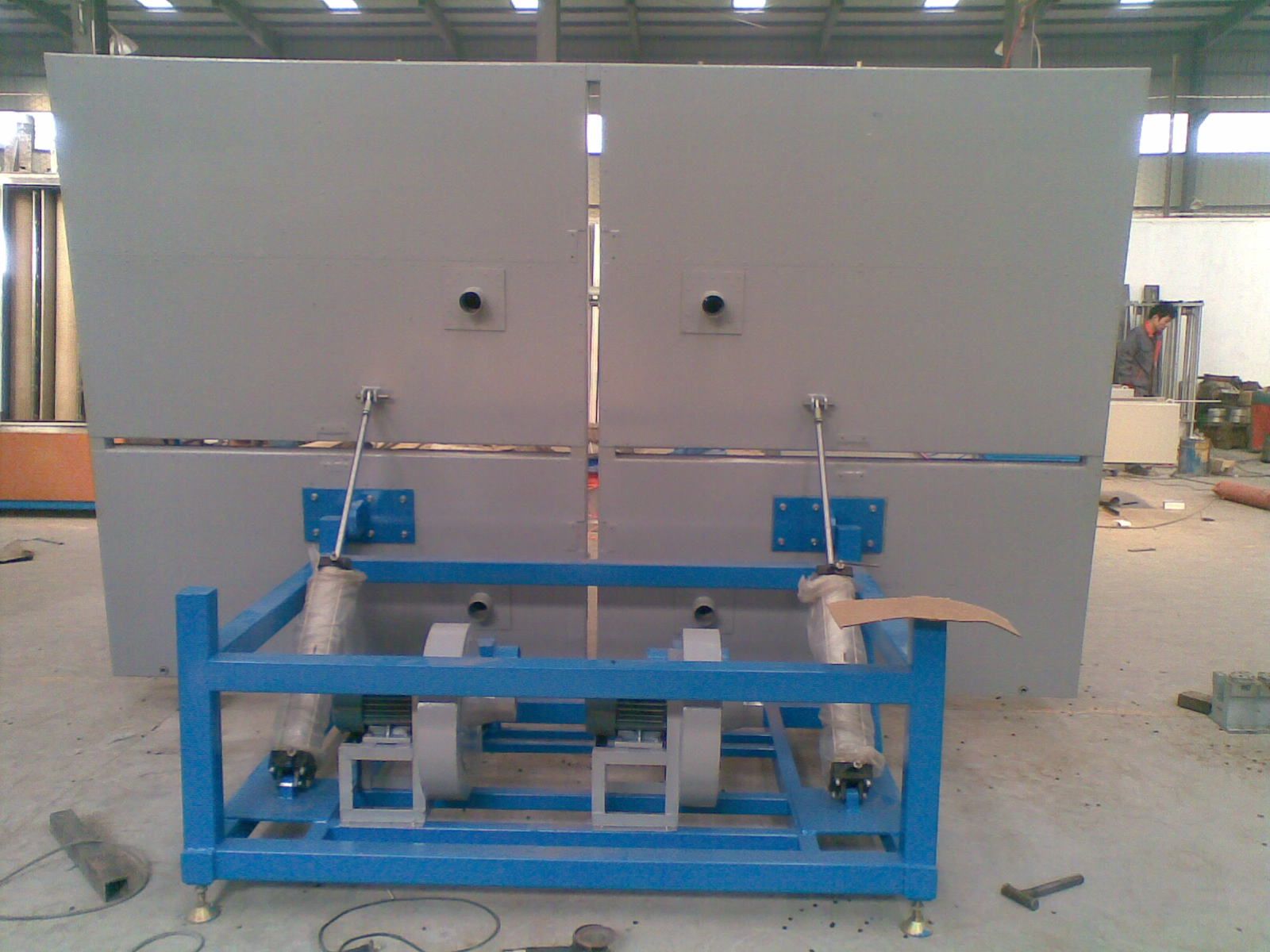

FZT03 glass tilting and breaking table
air floating
Packing and shipping
Main Technique Parameter:
1. Adopts the air-cushion type work table. It has pneumatic tilting function for unloading glass. The air-cushion makes it easily to move glass on the table.
2. The table has overturn function, so it can tilt glass from vertical to horizontal, can it controlled by foot switch, very simple and convenient to operate.
3. There are bars to guarantee the glass do not fall down and break.
4. The good carpet coated on the table, so it can not scratch the surface of glass.
5. The size is changeable according to customers' request.
Main parameter
Power supply 380V, 50HZ, 3 phase
Input power 1.5Kw
Air pressure 0.4-0.6Mpa
process glass size 3660*2440mm
total weight 400kg
air floating
Packing and shipping
Main Technique Parameter:
1. Adopts the air-cushion type work table. It has pneumatic tilting function for unloading glass. The air-cushion makes it easily to move glass on the table.
2. The table has overturn function, so it can tilt glass from vertical to horizontal, can it controlled by foot switch, very simple and convenient to operate.
3. There are bars to guarantee the glass do not fall down and break.
4. The good carpet coated on the table, so it can not scratch the surface of glass.
5. The size is changeable according to customers' request.
Main parameter
Power supply 380V, 50HZ, 3 phase
Input power 1.5Kw
Air pressure 0.4-0.6Mpa
process glass size 3660*2440mm
total weight 400kg
| Prod Model: | FZT03 |
|---|
